Product description

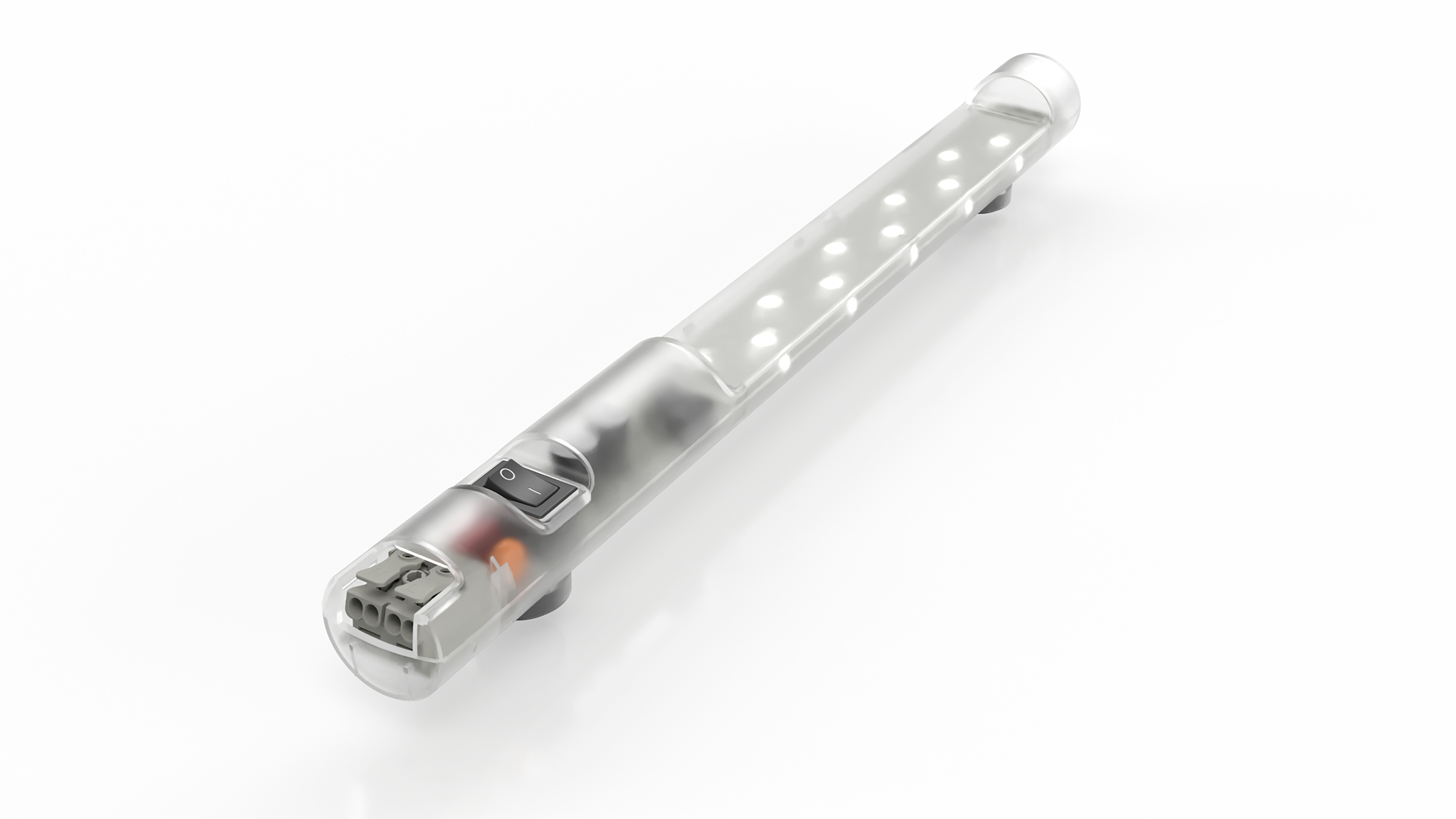

LED lamps with multi-wide voltage are ideal for flexible use in control cabinets and enclosures of various sizes. Multi-wide voltage is suitable for AC and DC voltages, providing maximum flexibility. The provided mounting kit enables easy and versatile installation. Thanks to its clip fixing, the lamp can be bolted to any position in the cabinets and enclosures. It is simply snapped into the clip holder and can be rotated as required for optimum lighting.
Technical Data
-
Order No.: 3080-7255-00-10
-
Length: 351 mm
-
Radiation angle: 120°
-
Cascading: up to 10 lamps
-
Service lifetime: 60000 h at + 20°C (+68°F)
-
Power consumption: < 4,5 W
-
Lamp: LED
-
Light color: 6000-7000 K
-
Luminous flux: 560 lumens
-
Mounting: Magnet and clip fixing
-
Operating voltage: AC/DC 24 – 240 V, 0/50/60 Hz (min. 20 V, max. 265 V)
-
Material: plastic, transparent
-
Type: on/off switch
-
Operating temperature: from -40°C up to +60°C (-40 up to +140°F)
-
Operating/storage humidity: max. 90% relative humidity (non-condensing)
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -40 °C LAGERTEMPERATUR_BIS : +85 °C
-
Protection type: IP20
-
Width: 40 mm
-
Depth: 42 mm
-
Weight: 0.2 kg
-
Approval: CE, UKCA, cURus
-
Length: 351 mm
Notice
- The on site connection is made via a 2-pole double pressure clamp for 2.5 mm² solid wire, 1.5 mm² stranded wire with ferrules. The maximum width and depth are dependent on the used mounting kit.
- 1 lamp with mounting hardware and quick guide
