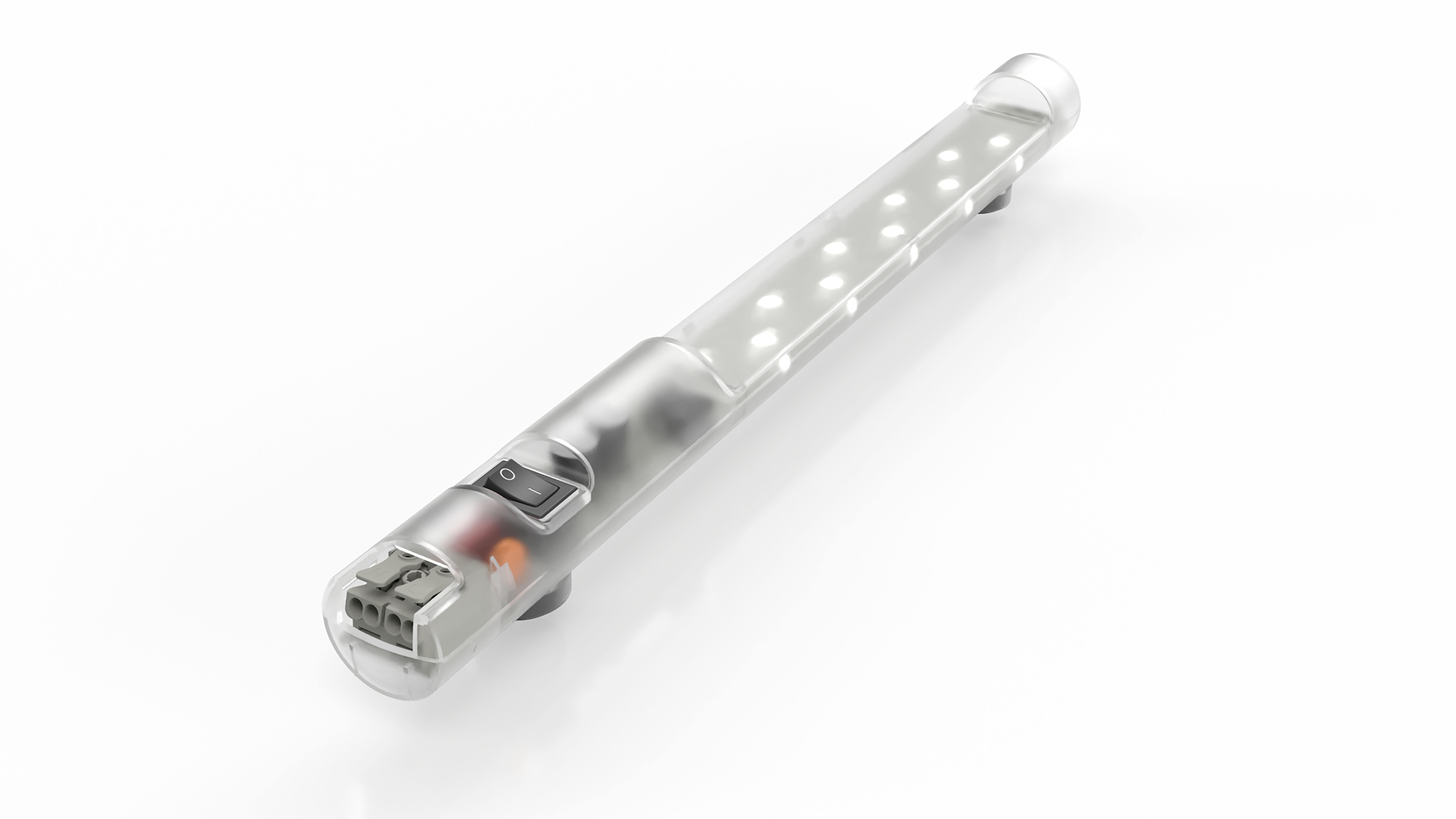

3080-7255-00-11
Technical Data
-
Order No.: 3080-7255-00-11
-
Protection class: II (double insulation)
-
Radiation angle: 120°
-
Lamp: LED
-
Light color: 6000-7000 K
-
Material: plastic, transparent
-
Type: on/off switch
-
Operating/storage humidity: max. 90% relative humidity (non-condensing)
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -40 °C LAGERTEMPERATUR_BIS : +85 °C
-
Protection type: IP20
-
Width: 52 mm
-
Depth: 42 mm
-
Weight: 0.2 kg
-
Length: 351 mm
