2374-2212-08-50

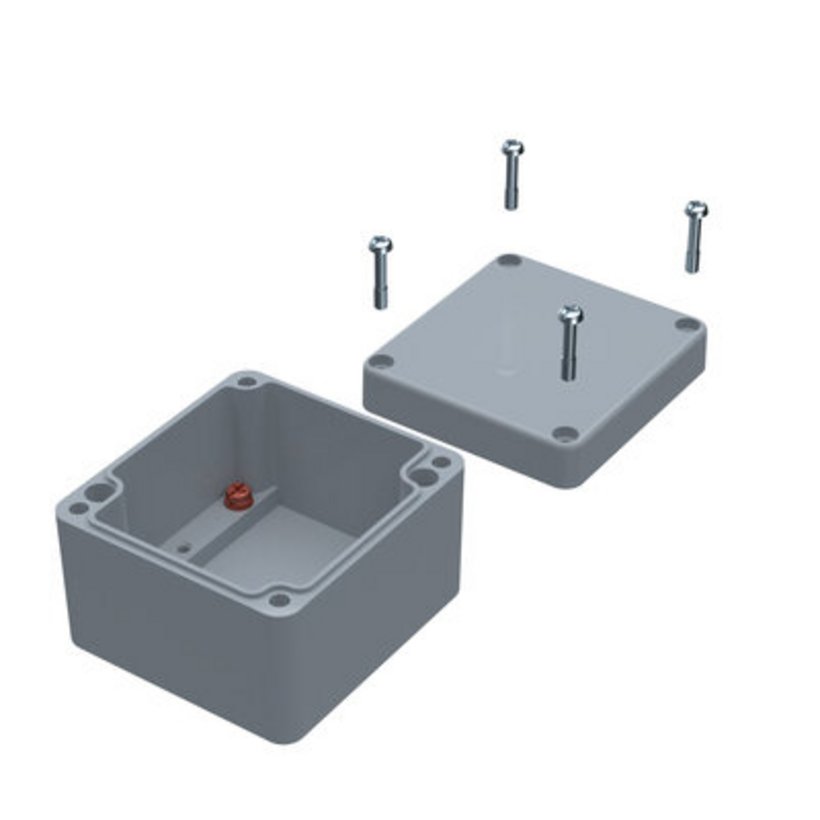

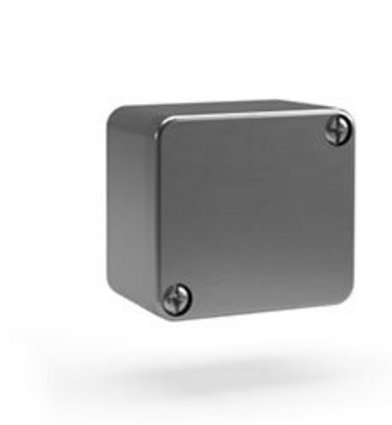

Aluminum Enclosures 2374
- Protection type: IP66/IP67
- High chemical resistance
- Suitable for the installation of electrical, electronic and pneumatic components
Product description
Enclosures made of aluminium.
Protective ground connection: 1-4 copper platet screws M4 or M6 with 2 washers.
Sealing: 2K polyurethane foam seal.
Closure: lid screws, see table.
Technical Data
-
Order No.: 2374-2212-08-50
-
Material: Aluminum
-
Casting process: Die casting
-
Width: 122 mm
-
Height: 220 mm
-
Depth: 80 mm
-
Number of: Cover screws: 4
-
Surface: silver-grey structured powder coated similar to RAL 7001
-
Temperature range: Enclosure: -40° up to +90°C
the seal: -40° up to +100°C -
Protection type: IP66/IP67
-
Bar on the narrow side for fastening a mounting plate or mounting rail.: 1
Notice
- Enclosure with inner hinge made of rust-proof steel, upon request (svivel range approximately 95°). Enclosures IP67 with silicone cover seal upon request.Enclosure with bar on the narrow side
- Aluminum enclosure complete with lid screws.


2370-2212-00-62
Mounting plate for aluminum enclosures
Suitable for width
220 mm
Suitable for height
122 mm

2370-0012-00-02
External mounting brackets for aluminum housing
Type
Suitable for depth from 122 mm to 160 mm
Assembly instructions:
CAD data and other file formats:
