0331-1012-00-03

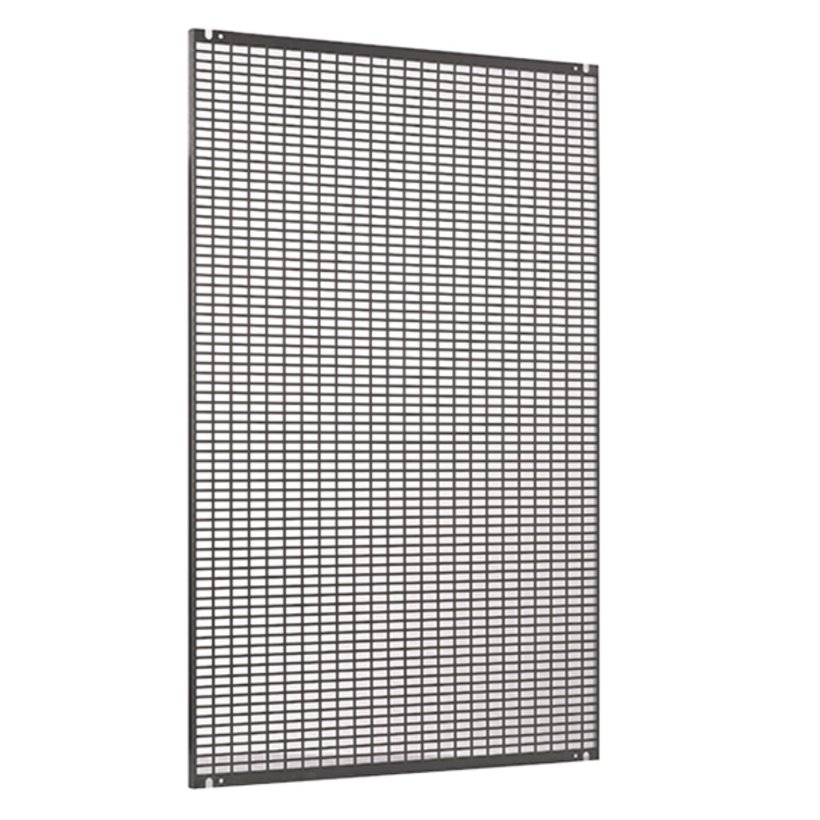

Mounting plate perforated
Product description
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 701 mm with 20 mm flanged mounting plate.
Mounting plate perforated, suitable for SN enclosure and compact69.
Technical data
-
Article number: 0331-1012-00-03
-
Material: Sheet steel
-
Width: 930 mm
-
Height: 1170 mm
-
suitable for width: 1000 mm
-
suitable for height: 1200 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Galvanized
-
Weight: 7.8 kg
-
Edged mounting plate:
- 1 Mounting plate without attachments

3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1112-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3351-1012-30-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1112-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3331-1112-35-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate

3331-1112-35-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate

3331-1112-40-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate

3331-1112-40-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate

3351-1112-35-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate

3351-1112-35-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate

3351-1112-40-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate

3351-1112-40-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
CAD data and other illustrations:
