Product description
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 701 mm with 20 mm flanged mounting plate.

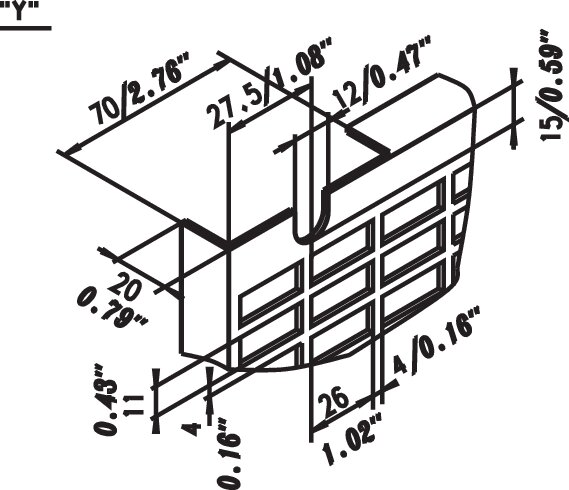

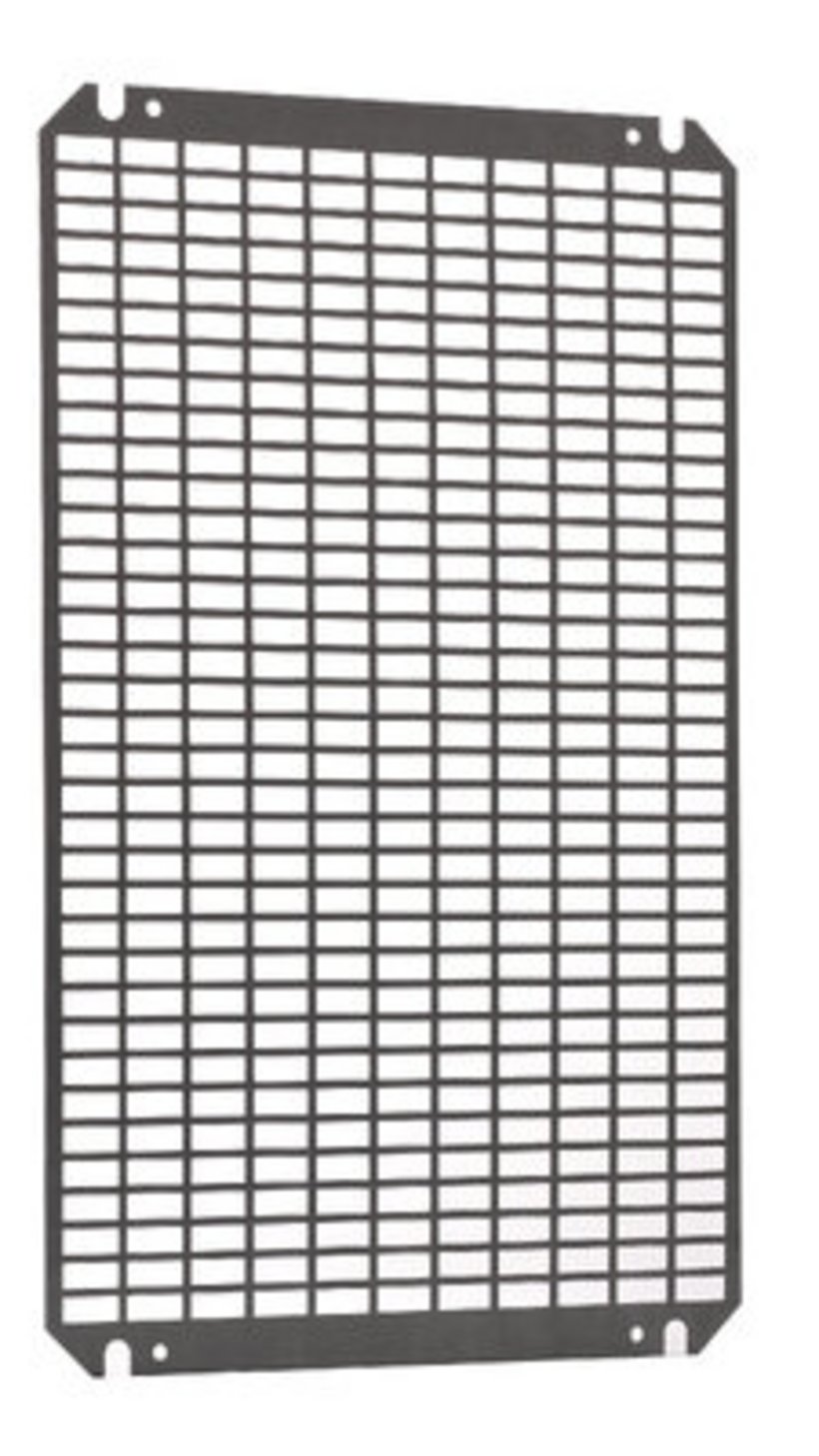

Mounting plate perforated, suitable for SN enclosure and compact69.
Technical Data
-
Order No.: 0331-6040-00-03
-
Material: Sheet steel
-
Width: 543 mm
-
Height: 370 mm
-
Suitabel for width: 600 mm
-
Suitable for height: 400 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Galvanized
-
Weight: 1.5 kg
- 1 Mounting plate without attachments
3331-6040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15330
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15353
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6365
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6381
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20203_15392
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
R:20203_15411
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
R:20203_6406
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
R:20203_6419
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
