0331-1212-00-03

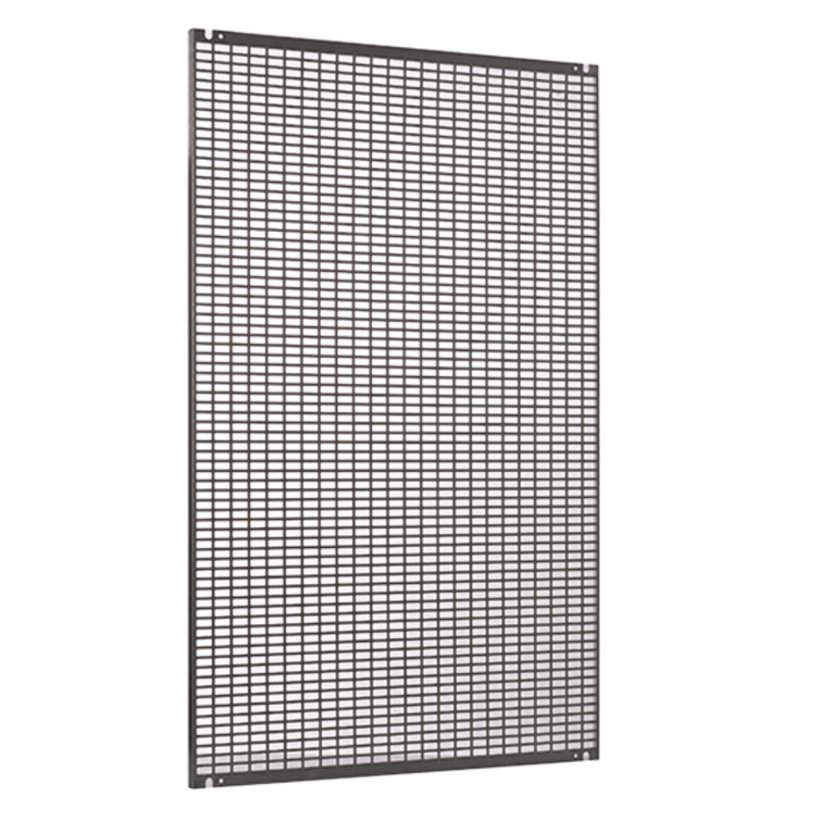

Mounting plate perforated
Product description
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 701 mm with 20 mm flanged mounting plate.
Mounting plate perforated, suitable for SN enclosure and compact69.
Technical Data
-
Order No.: 0331-1212-00-03
-
Material: Sheet steel
-
Width: 1130 mm
-
Height: 1170 mm
-
Suitabel for width: 1200 mm
-
Suitable for height: 1200 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Galvanized
-
Weight: 10 kg
-
Mounting plate smooth: 0
-
Mounting plate edged: 1
- 1 Mounting plate without attachments
3331-1212-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1212-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1212-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1212-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1212-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3351-1212-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
