0331-3030-00-03

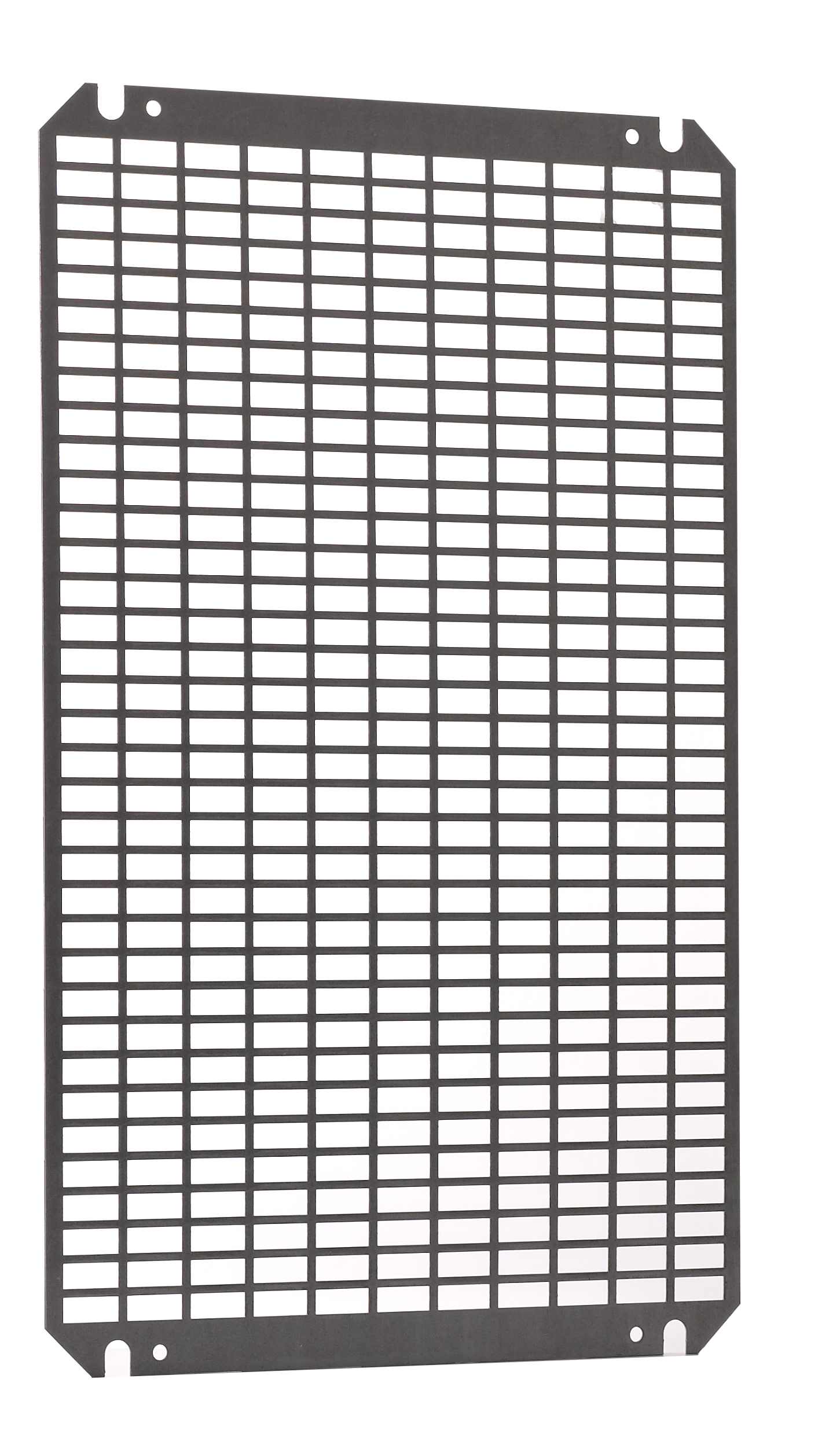

Mounting plate perforated
Product description
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 701 mm with 20 mm flanged mounting plate.
Mounting plate perforated, suitable for SN enclosure and compact69.
Technical data
-
Article number: 0331-3030-00-03
-
Material: Sheet steel
-
Width: 243 mm
-
Height: 270 mm
-
suitable for width: 300 mm
-
suitable for height: 300 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Galvanized
-
Weight: 0.5 kg
- 1 Mounting plate without attachments
3331-3030-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
3331-3030-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
3331-3030-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-3030-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

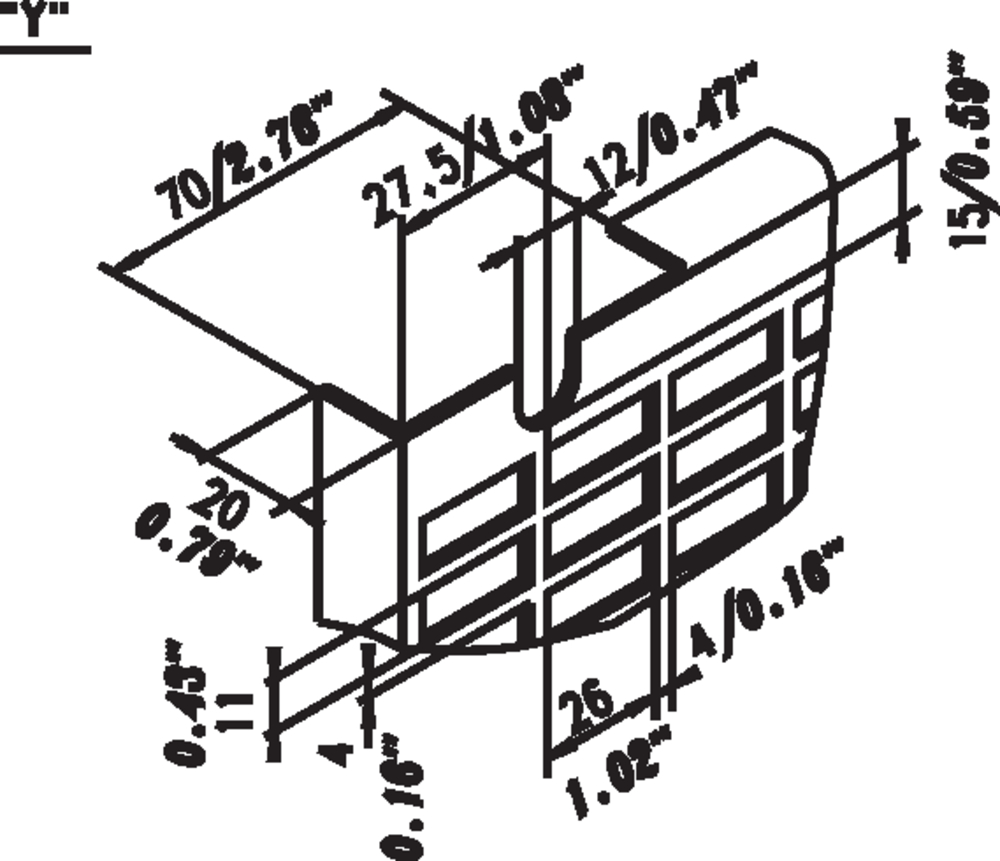

CAD data and other illustrations:
