0331-8080-00-03

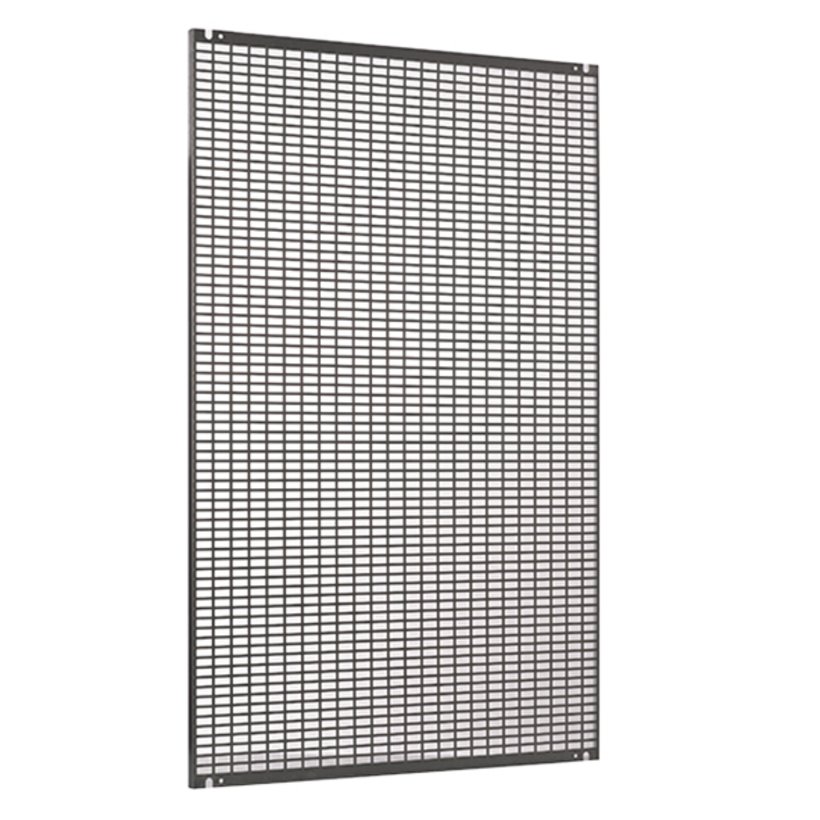

Mounting plate perforated
Product description
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 701 mm with 20 mm flanged mounting plate.
Mounting plate perforated, suitable for SN enclosure and compact69.
Technical data
-
Article number: 0331-8080-00-03
-
Material: Sheet steel
-
Width: 730 mm
-
Height: 770 mm
-
suitable for width: 800 mm
-
suitable for height: 800 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Galvanized
-
Weight: 4.1 kg
- 1 Mounting plate without attachments

3331-8080-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate

3331-8080-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate

3331-8080-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate

3331-8080-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate

3331-8080-40-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate

3331-8080-40-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate

3351-8080-20-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate

3351-8080-20-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate

3351-8080-30-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate

3351-8080-30-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate

3351-8080-35-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate

3351-8080-35-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate

3351-8080-40-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate

3351-8080-40-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate

3331-8080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3351-8080-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-30-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-30-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
CAD data and other illustrations:
