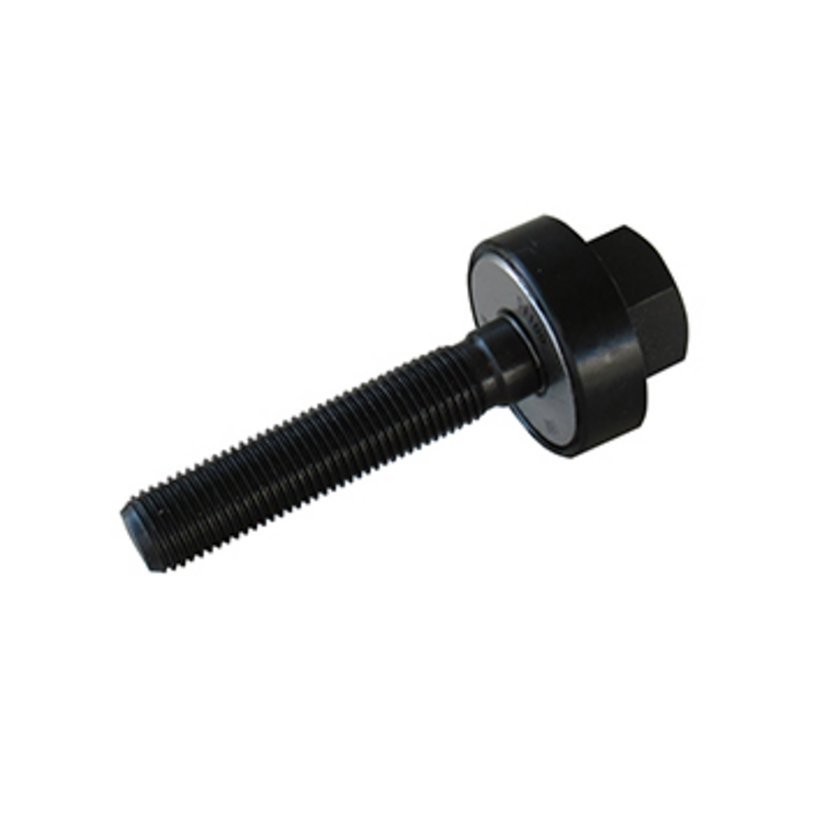

Draw Stud for Manual Operation

2683-1710-62-00

Draw Stud for Manual Operation

Product description

For operation with open-end wrench

Ball bearing screws reduce the effort by approx. 50 %

Technical Data

  • Order No.: 2683-1710-62-00
  • PRODUKTFAMILIE: for mobile devices
  • Type: with ball bearing
  • Size: 9,5 x 53 mm
  • Wrench Size: 17 mm

Notice

  • For pre-drilling, please use Ø 10.5 mm drill
  • 1 draw stud
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
2682-0815-20-25
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG 9
further information
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
2682-0816-20-25
Round Punch Plus Threaded for ø 9.5 mm Draws Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 12,2 mm
Max. sheet metal thickness
Steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 12,7 mm
Max. sheet metal thickness
Steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG 7
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0814-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 14 mm
Max. sheet metal thickness
Steel 1,5 mm
Stainless steel 1 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Steel 1,5 mm
Stainless steel 1 mm
Draw stud
ø 9,5 mm
PG
PG 9
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0816-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0817-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 17,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG 11
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0819-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
Ø 19 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0820-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
PG
PG 13.5
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0821-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 21,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
PG
PG 16
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0823-80-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 23,8 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0824-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 24,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0825-20-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0827-00-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 27 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 2 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
PG
PG 21
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0832-21-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0833-30-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 33,3 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0835-01-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 35 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Threaded for Ø 9.5 mm Draw Studs
2623-0838-11-00
Round Punch Threaded for Ø 9.5 mm Draw Studs
Product range
for mobile devices
Size
ø 38,1 mm
Max. sheet metal thickness
Steel 2 mm
Stainless steel 1,5 mm
Draw stud
ø 9,5 mm
further information
Round Punch Kit, Metric from M12 to M50
2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
further information
Round Punch Kit, Metric from M12 to M50
2683-7812-50-20
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
further information
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
without draw studs
further information
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
2683-7812-30-20
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
with draw studs
further information
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
2623-7812-60-00
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
without draw studs
further information
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
2683-7812-60-30
Round Punch Kit from PG7 to PG48 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
further information
Sheet Metal Shell Drill Bits
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
further information
Sheet Metal Shell Drill Bits
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
further information
Coated Sheet Metal Shell Drill Bits
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
further information
Coated Sheet Metal Shell Drill Bits
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
further information
Sheet Metal Shell Drill Bit Set
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
further information
Drilling Paste
2631-0600-15-49
Drilling Paste
Dimensions
ø 29 x 91 mm
further information
High Performance Cutting Oil
2684-0700-25-00
High Performance Cutting Oil
Filling capacity
0.25 liters
further information
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
2683-7812-30-20
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm
Type
with draw studs
further information
Round Punch Kit, Metric from M12 to M50
2683-7812-50-20
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. sheet metal thickness
Steel 3 mm
Draw stud
ø 9,5 mm / ø 19 mm
Type
with draw studs
further information
Save as PDF Save as PDF Direct enquiry
Draw Stud for Manual Operation
Draw Stud for Manual Operation
For operation with open-end wrench
Ball bearing screws reduce the effort by approx. 50 %
notice
2683-1711-50-00
for mobile devices
with ball bearing
11,1 x 50
17 mm
2683-1719-75-00
for mobile devices
with ball bearing
19 x 75 mm
27 mm
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

PM-Leitung: Herr Eglof. PM-Leitung: Herr Eglof.
Share this page
