1204-0003-10-00

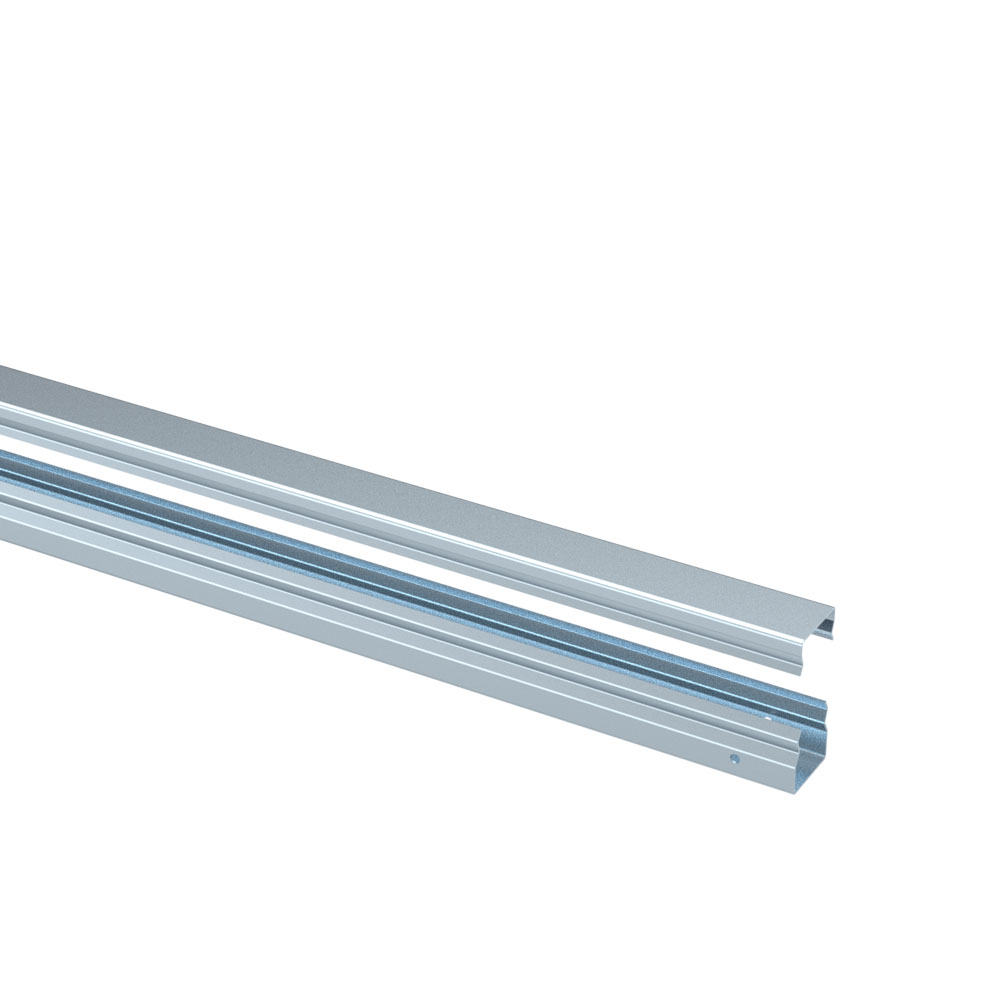

Cable Duct
- continuously open insertion
- highest flexibility through well designed accessories
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.

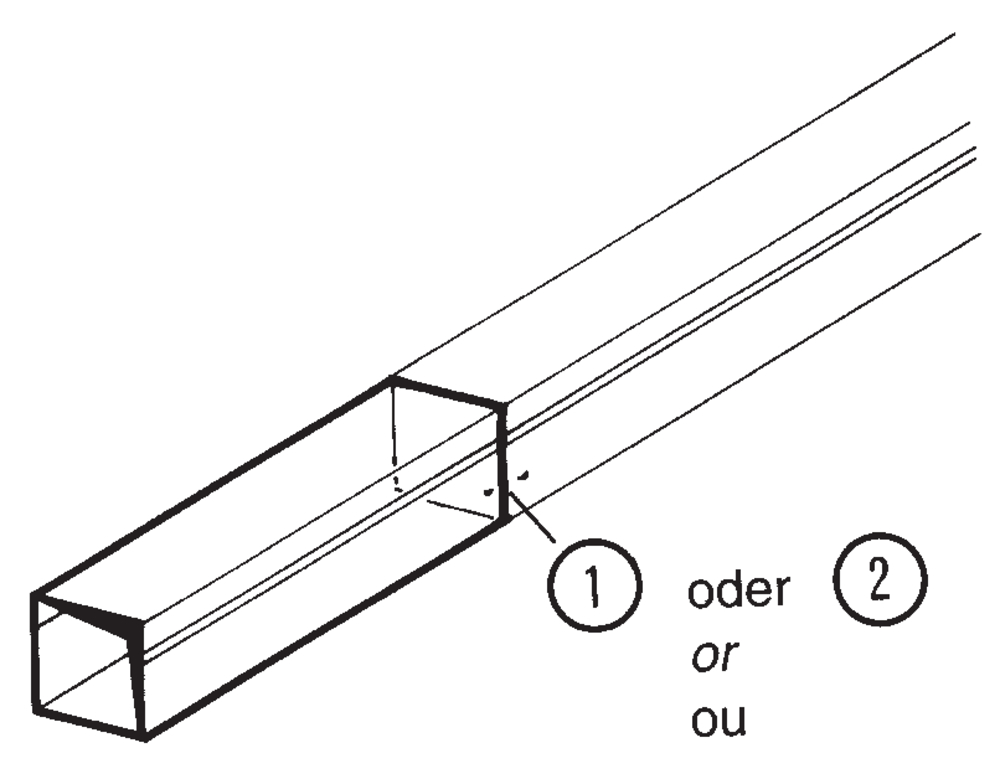

The chamfered duct ends permit a continuous insertion.
The duct ends have pre-drilled holes for the connection screws of u-brackets or connection brackets.

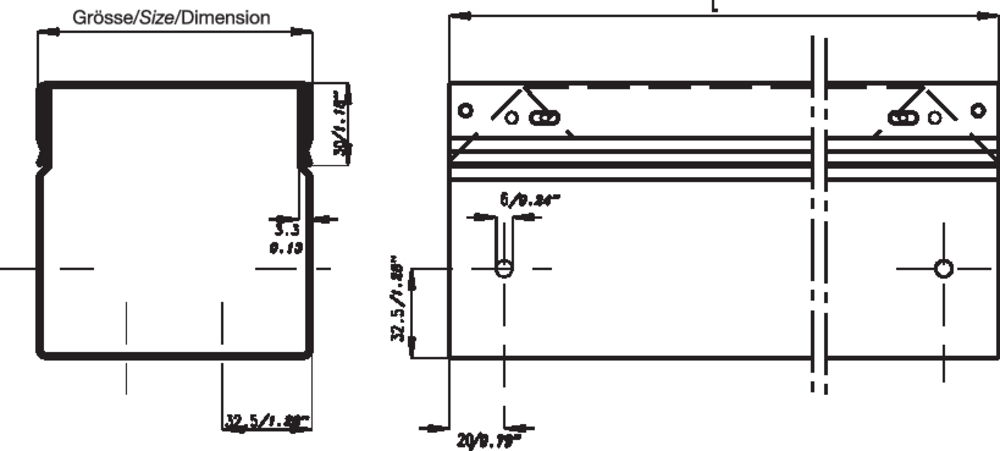

Technical Data
-
Order No.: 1204-0003-10-00
-
Type: Cable duct system type 1204
-
Cross-section: 1,18 x 1,18 inch
-
Length: 1000 mm
-
Protection type: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 1.1 kg
Notice
- Intermediate lengths can be made by simply cutting the cable ducts using a jigsaw or band-saw and then punching the connection holes with a universal punch 1204-1301-06-00.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 cable duct with cover
1204-9002-04-08
Screw with Nut
Thread
M4
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-0706-03-00
Reducer
Type
Cable duct system type 1204
Cross section
from 60 x 60 to 30 x 30
Length
115 mm
Material
Sheet steel
1204-0203-00-00
End Cap
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Length
42 mm
Material
Sheet steel
1204-0803-35-03
Adapter flange
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Material
Sheet steel
1204-0803-12-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Routing direction
horizontal
Type
With pre-drilled holes
1204-0803-13-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Angle
90°
Routing direction
horizontal left, right
Type
With pre-drilled holes
1204-0803-45-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Angle
45°
Routing direction
horizontal
Type
With pre-drilled holes
1204-0803-61-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Angle
90°
Type
With pre-drilled holes
1204-0803-67-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Angle
90°
Type
With pre-drilled holes
1204-0803-90-03
U-bracket
Type
Cable duct system type 1204
Cross section
1,18 x 1,18 inch
Angle
90°
Routing direction
horizontal
Type
With pre-drilled holes
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2/0,004 in2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1204-1301-06-00
Punch Type
Type
With punching tool ø 6 mm / 0.23”
Suitable for
Round punches up to ø 8 mm / 0.31"
Material thickness
Sheet steel up to 1.5 mm / 16 ga
Weight
1.9 kg
Assembly instructions:
CAD data and other file formats:
