1204-0203-00-00

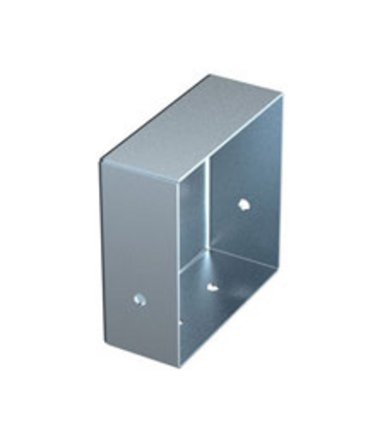

End Cap
Product description
For closure of duct ends.
This form part has pre-drilled holes for the connecting screws of the U-brackets and connection brackets.
Technical Data
-
Order No.: 1204-0203-00-00
-
Type: Cable duct system type 1204
-
Cross-section: 1,18 x 1,18 inch
-
Length: 42 mm
-
Protection type: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 0.02 kg
Notice
- U-brackets or connection brackets are required for the assembly.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 end cap
