1207-0015-05-00

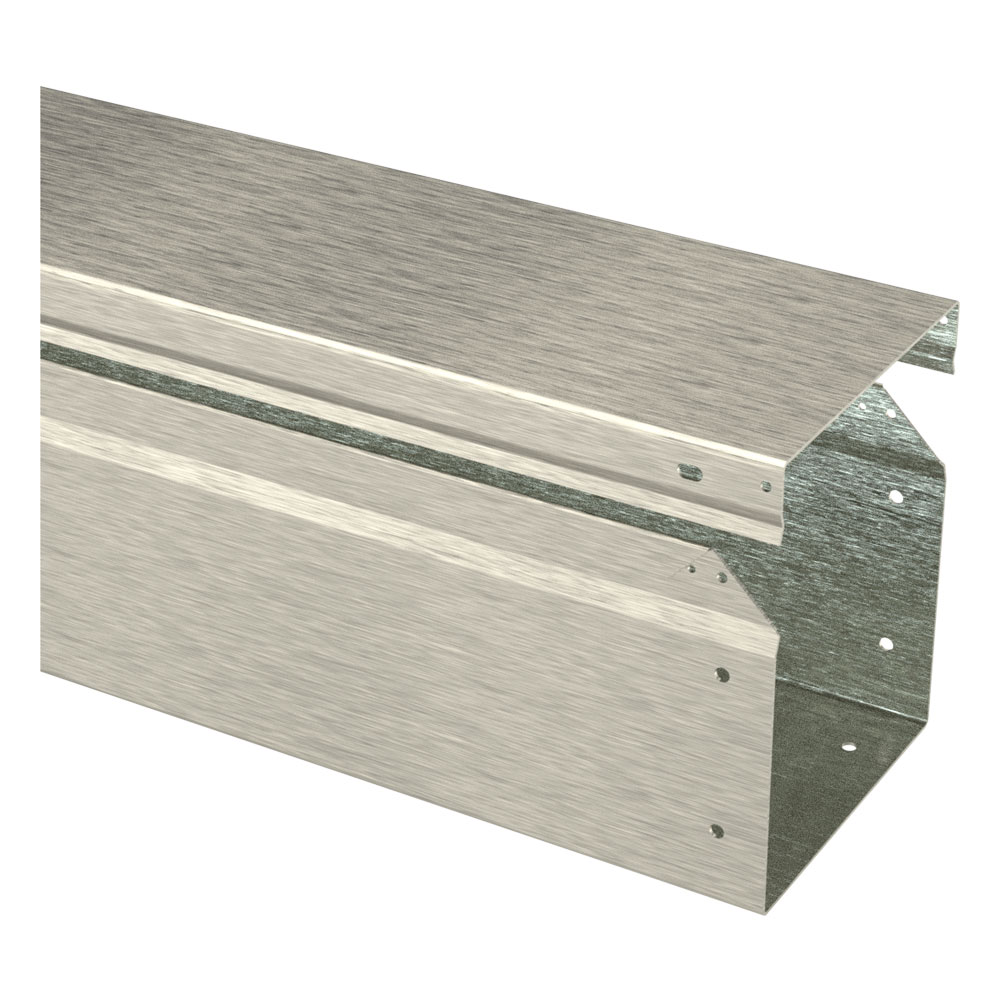

Cable Duct
- continuously open insertion
- highest flexibility through well designed accessories
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
The chamfered duct ends permit a continuous insertion.
The duct ends have pre-drilled holes for the connection screws of u-brackets or connection brackets.
Technical Data
-
Order No.: 1207-0015-05-00
-
Type: Cable duct system type 1207
-
Cross-section: 150 x 150 mm/5,91 x 5,91"
-
Length: 500 mm
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 4 kg
Notice
- Intermediate lengths can be made by simply cutting the cable ducts using a jigsaw or band-saw and then punching the connection holes with a universal punch 1204-1301-06-00.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 cable duct with cover
1207-0415-00-00
T-Section
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0315-13-00
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0315-90-00
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-1315-00-90
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Stainless steel no. 1.4301
1207-1315-01-35
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Stainless steel no. 1.4301
1207-1315-02-25
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Stainless steel no. 1.4301
1207-1315-02-70
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Stainless steel no. 1.4301
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1207-0715-10-01
Reducer
Type
Cable duct system type 1207
Cross section
from 150 x 150 mm to 100 x 100 mm
Length
185 mm
Material
Stainless steel no. 1.4301
1207-0730-15-00
Reducer
Type
Cable duct system type 1207
Cross section
from 300 x 150 mm to 150 x 150 mm
Length
280 mm
Material
Stainless steel no. 1.4301
1207-0615-00-00
Adapter flange
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Material
Stainless steel no. 1.4301
1207-0115-10-00
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
With pre-drilled holes
1207-0115-10-01
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
With threads
1207-0115-20-38
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
Long pre-drilled version
1207-0115-21-38
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
Long threaded version
1207-0110-30-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Type
With pre-drilled holes
1207-0115-30-01
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
180°
Type
With threads
1207-0115-41-35
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Type
With threads
1207-0115-51-90
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
22,5°
Type
With threads
1207-0115-61-57
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
22,5°
Type
With threads
1207-0715-05-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
498 mm
Material
Stainless steel no. 1.4301
1207-0715-10-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
998 mm
Material
Stainless steel no. 1.4301
1207-0715-20-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
1998 mm
Material
Stainless steel no. 1.4301
1204-1301-06-00
Punch Type
Type
With punching tool ø 6 mm / 0.23”
Suitable for
Round punches up to ø 8 mm
Material thickness
Sheet steel up to 1.5 mm
Weight
1.9 kg
