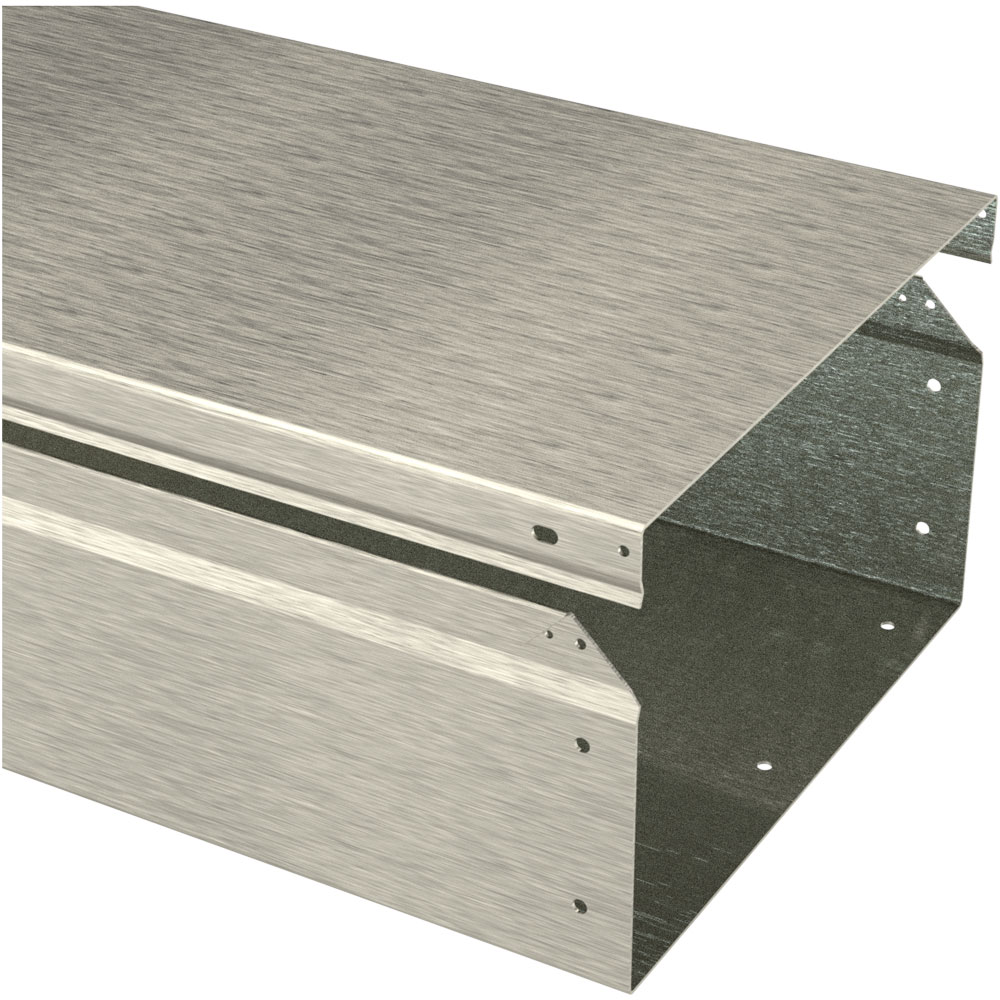

Cable Duct
- continuously open insertion
- highest flexibility through well designed accessories
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
The chamfered duct ends permit a continuous insertion.
The duct ends have pre-drilled holes for the connection screws of u-brackets or connection brackets.
Technical Data
-
Order No.: 1207-0030-10-00
-
Type: Cable duct system type 1207
-
Cross-section: 11,81 x 5,91 inch
-
Length: 1000 mm
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 11.6 kg
Notice
- U-brackets or connection brackets are required for assembly.
- 1 cable duct with cover
1207-1330-02-25
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Stainless steel no. 1.4301
1207-1330-02-70
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Stainless steel no. 1.4301
1207-0430-00-00
T-Section
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0330-13-00
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0330-90-00
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-1330-00-90
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Material
Stainless steel no. 1.4301
1207-1330-01-35
Elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
45°
Material
Stainless steel no. 1.4301
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1207-0715-10-01
Reducer
Type
Cable duct system type 1207
Cross section
from 150 x 150 mm to 100 x 100 mm
Length
185 mm
Material
Stainless steel no. 1.4301
1207-0730-15-00
Reducer
Type
Cable duct system type 1207
Cross section
from 300 x 150 mm to 150 x 150 mm
Length
280 mm
Material
Stainless steel no. 1.4301
1207-0630-00-00
Adapter flange
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Material
Stainless steel no. 1.4301
1207-1430-90-01
Reversing elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
Outlet at right rear side
Material
Stainless steel no. 1.4301
1207-1430-90-02
Reversing elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
Outlet at left rear side
Material
Stainless steel no. 1.4301
1207-1530-00-00
Reversing T-Section
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Material
Stainless steel no. 1.4301
Surface
Externally brushed
1207-0130-10-00
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
With pre-drilled holes
1207-0130-10-01
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
With threads
1207-0130-20-38
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
Long pre-drilled version
1207-0130-21-38
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
Long threaded version
1207-0110-30-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Type
With pre-drilled holes
1207-0115-30-01
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
180°
Type
With threads
1207-0715-05-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
498 mm
Material
Stainless steel no. 1.4301
1207-0715-10-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
998 mm
Material
Stainless steel no. 1.4301
1207-0715-20-00
Partition panel for straight duct sections
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
Length
1998 mm
Material
Stainless steel no. 1.4301
1204-1301-06-00
Punch Type
Type
With punching tool ø 6 mm / 0.23”
Suitable for
Round punches up to ø 8 mm
Material thickness
Sheet steel up to 1.5 mm
Weight
1.9 kg
