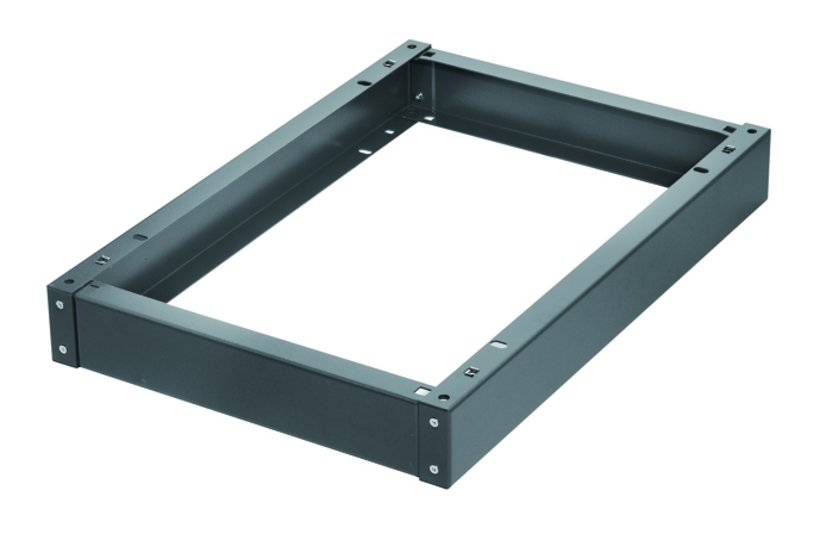

Bases height 100 mm for H390, H395 and PC2096
Bases height 100 mm for H390, H395 and PC2096

0396-8001-40-17

Bases height 100 mm for H390, H395 and PC2096

  • For free-standing single and ganged-together modular cabinets
  • Rugged U-profiles
  • High lifting capacity

Product description

Base for installation under cabinets.

For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.

Technical Data

  • Order No.: 0396-8001-40-17
  • Dimension: Suitabel for width : 800 mm  Suitable for depth : 400 mm
  • Surface: Powder coated RAL 7022, texture finish
  • Material: Sheet steel
  • Socket size S: 305 mm
  • Weight: 6.4 kg
  • Sheet thickness: 2 mm
  • Base depth (t): 350 mm

Notice

  • If used with cabinet H390, an offset of 25 mm will be in the back.
  • Upon request, bases can also be supplied with cable entry plates with brushes type 0396-7310-84-00.
  • Base complete, unassembled, with assembly and mounting hardware.
