2642-0422-20-00

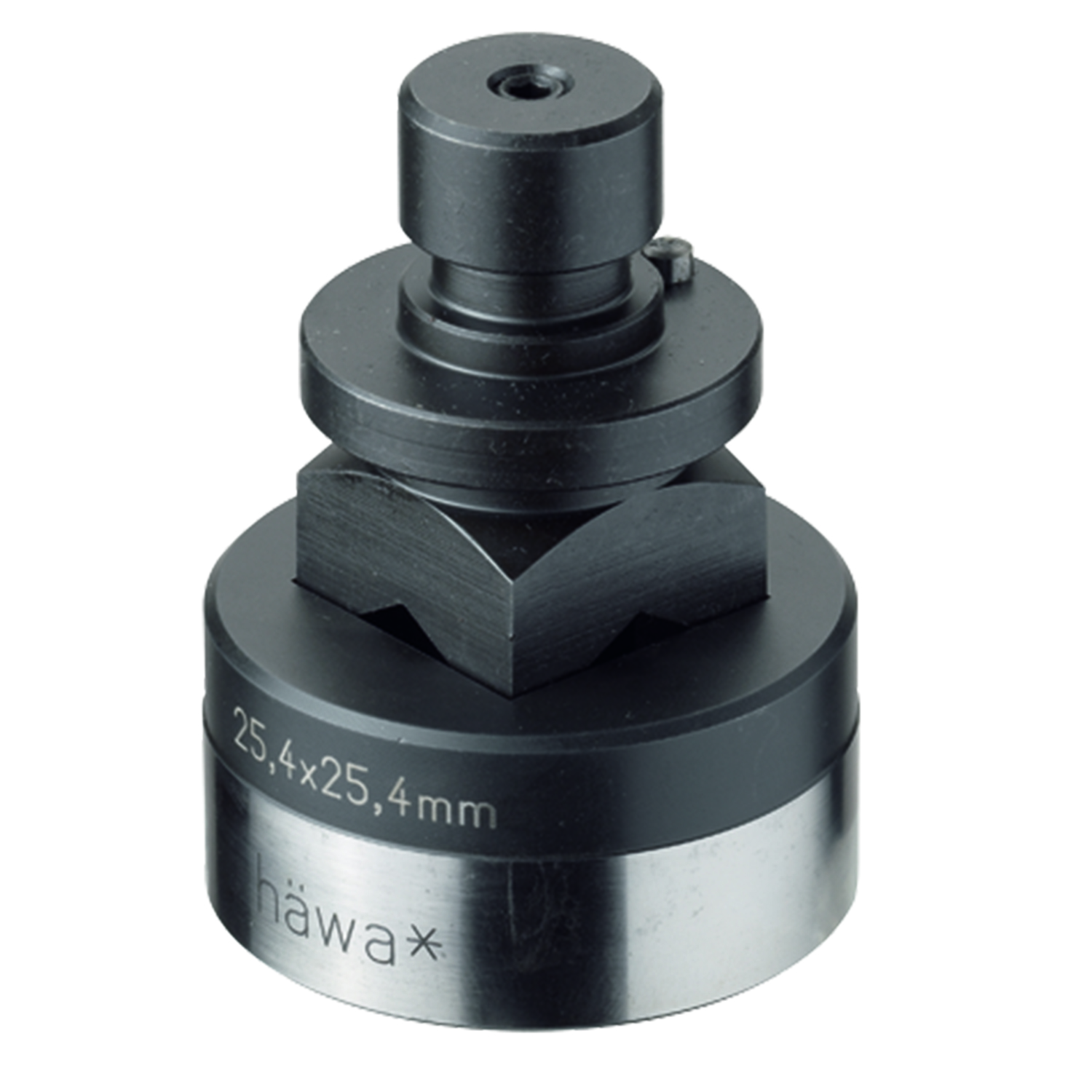

Square Punch for Maxi-Press 500
- Long lifetime
- Maximum productivity with minimum effort
Product description
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Technical Data
-
Order No.: 2642-0422-20-00
-
Max. sheet metal thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 20 mm/0,79"
-
Diameter of the die holder: 1,97 inch
-
Size: 22,2 x 22,2 mm; 0,87 x 0,87"
Notice
- Before selecting this punch, check if you already have the required intermediate ring 2643-0250-72-00.
- 1 punch set, consisting of punch and die
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Outer diameter
72 mm/2,83"
Inner diameter
50 mm
2643-7106-00-00
Maxi-Press 500
Application
Punching of cut-outs
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
500 mm
