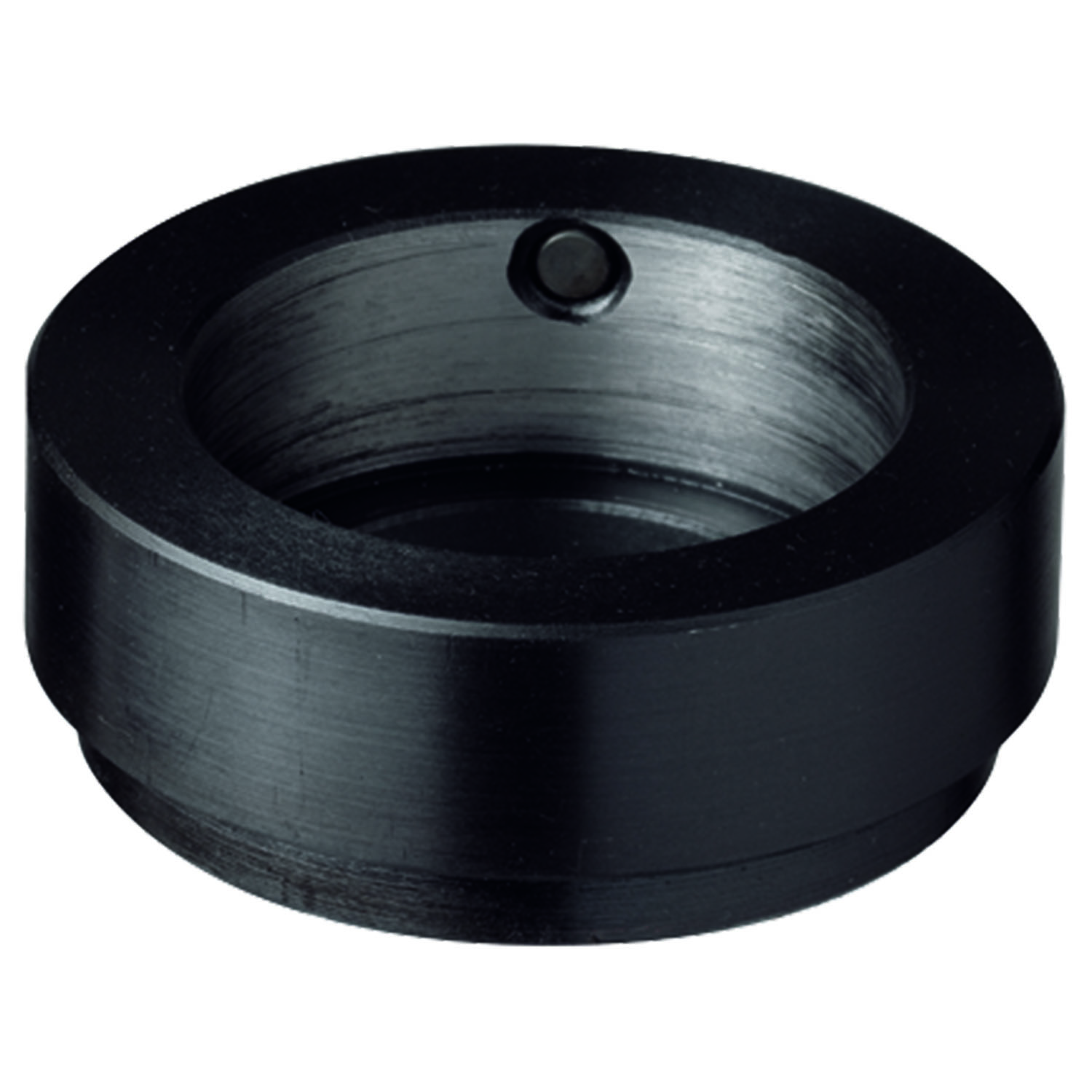

Die Holder ø 50 mm for Maxi-Press 500
Product description
For holding punching tool dies in bow punch Maxi-Press 500
The die holder in the bow punch is aligned via the fixed ø 72 mm die holder
The dies are fixed at the external diameter via a threaded pin
Technical Data
-
Order No.: 2643-0250-72-00
-
PRODUKTFAMILIE: For workshop equipment
-
Outer diameter: 72 mm/2,83"
-
Inner diameter: 50 mm
Notice
- 1 die holder with threaded pin
2642-0422-20-00
Square Punch for Maxi-Press 500
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2642-0425-40-00
Square Punch for Maxi-Press 500
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2642-0922-30-00
Rectangular Punch for Maxi-Press 500
Product range
For workshop equipment
Size ø
22 x 30 mm; 0.87 x 1.18"
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2643-0922-52-01
Round Punch with Two Keyways for Maxi-Press 500
Product range
For workshop equipment
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14ga / Stainless steel 1,5 mm; 16ga / Aluminum 3 mm; 9 ga
Clamping pin
ø 20 mm/0,79"
Die - external diameter
1,97 inch
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 10,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 21,3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 24,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 25,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 28,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 30,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 32,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 40,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 50,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 63,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2643-7106-00-00
Maxi-Press 500
Application
Punching of cut-outs
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
500 mm
