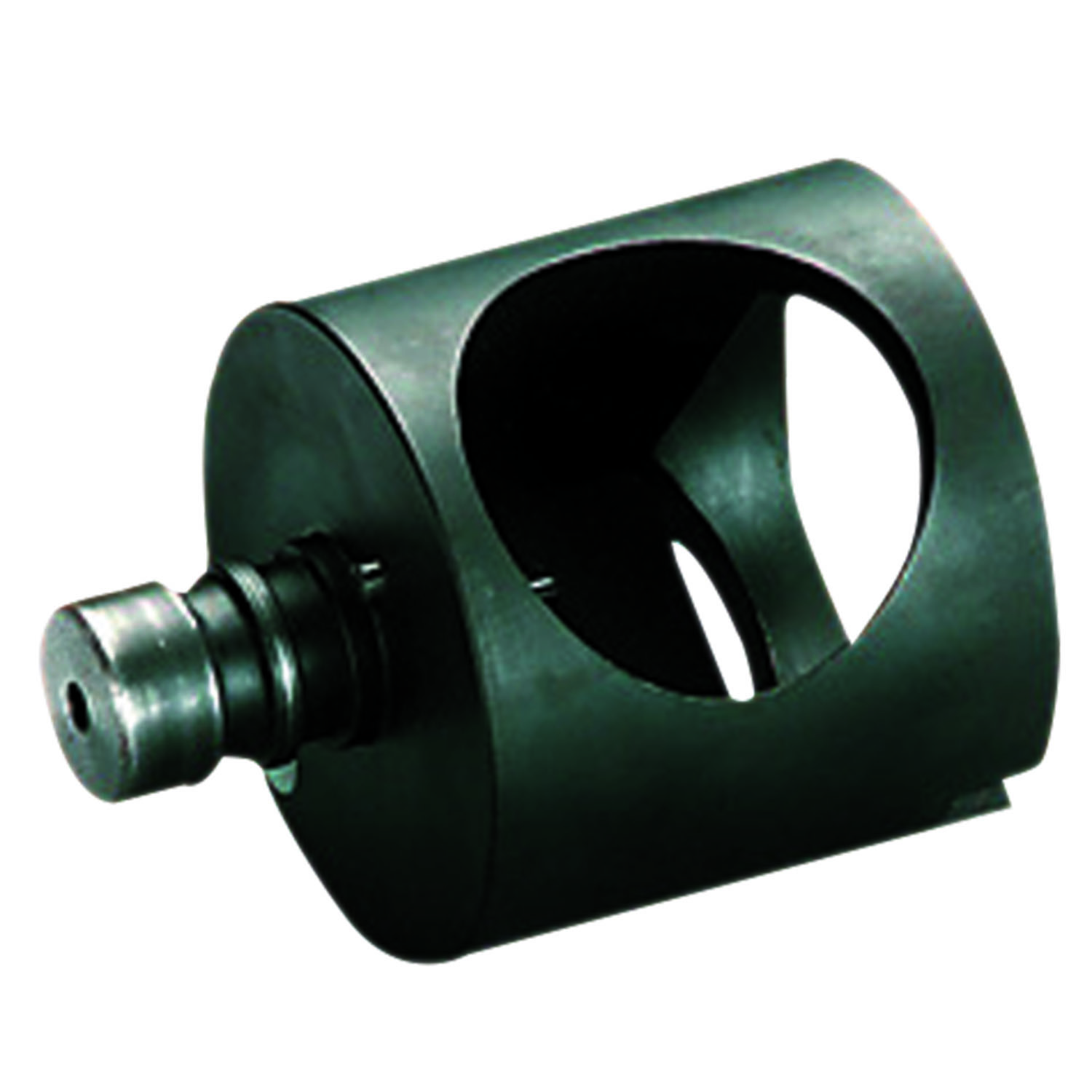

Die Holder ø 50 mm for Quick-Press 400
Product description
For holding punching tool dies in bow punch Quick-Press 400
The die holder in the bow punch is aligned via a ø 20 mm clamping pin with two recesses
The dies are fixed at the external diameter via a threaded pin
The die holder can either be inserted at the bottom of the bow punch or at the top of the hydraulic cylinder
Technical data
-
Article number: 2665-0000-10-03
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories Quick-Press 400
-
Clamping spigot: ø 20 mm/0,79"
Notice
- Standard punching tools: round: from ø 6.6 up to ø 63.5 mm, square up to 25.4 mm.
- Scraps up to ø 40.5 mm fall out of the die holder.
- 1 die holder with threaded pin
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
6.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
10.5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
21.3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
24.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
25.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
28.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
40.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
50.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
63.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
2665-0422-20-00
Square Punch for Quick-Press 400
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2665-0425-40-00
Square Punch for Quick-Press 400
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2665-0922-52-01
Round Punch with Two Keyways for Quick-Press 400
Product range
For workshop equipment
Size ø
ø 22.5 with two keyways
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
