Product description

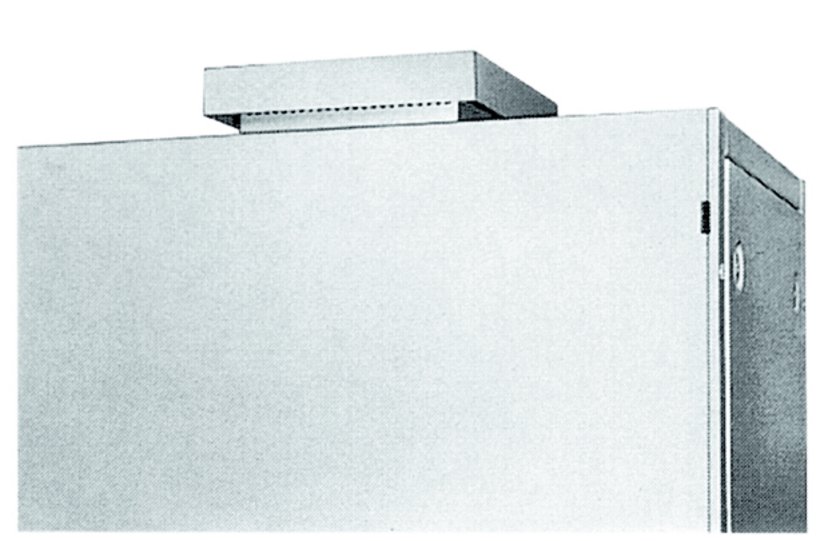

For heat removal through top of cabinet.
Technical Data
-
Order No.: 3148-0300-00-07
-
Frequency: 50 Hz/60 Hz
-
Protection type: IP43
-
Cut-out Filter fan: 249 x 249 mm
-
Type: Roof-cover without ventilator
-
Material: housing: 1 mm sheet steel
-
Weight: 2.5 kg
-
Dimension: Width : 330 mm Height : 77 mm Depth : 330 mm
-
Surface: housing: powder coated RAL 7035, texture finish
Notice
- Roof-mounted ventilator complete with mounting hardware or roof-mounted cover without ventilator with mounting hardware
Assembly instructions:
CAD data and other file formats:
