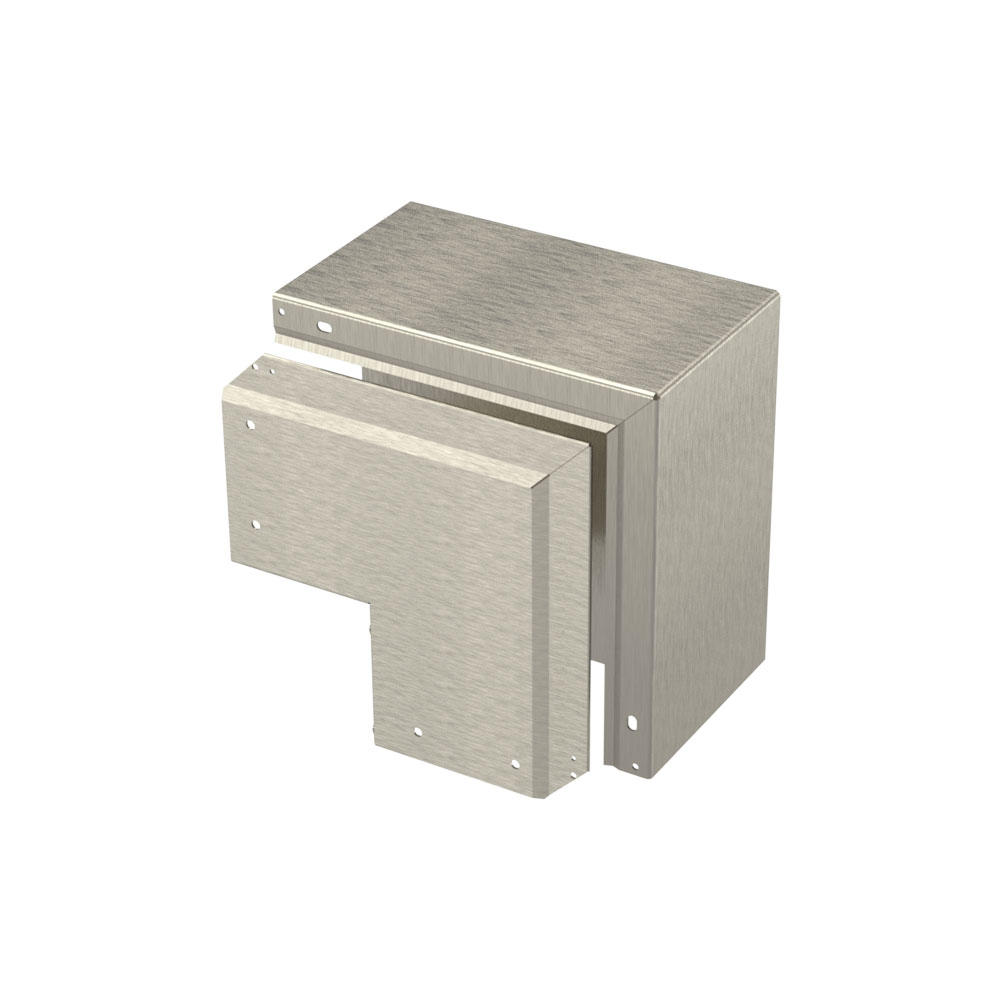

Elbow
- Continuously open insertion
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This form part has pre-drilled holes for the connecting screws of the connection brackets.
Technical Data
-
PRODUCT NUMBER: 1207-1315-02-70
-
Type: Cable duct system type 1207
-

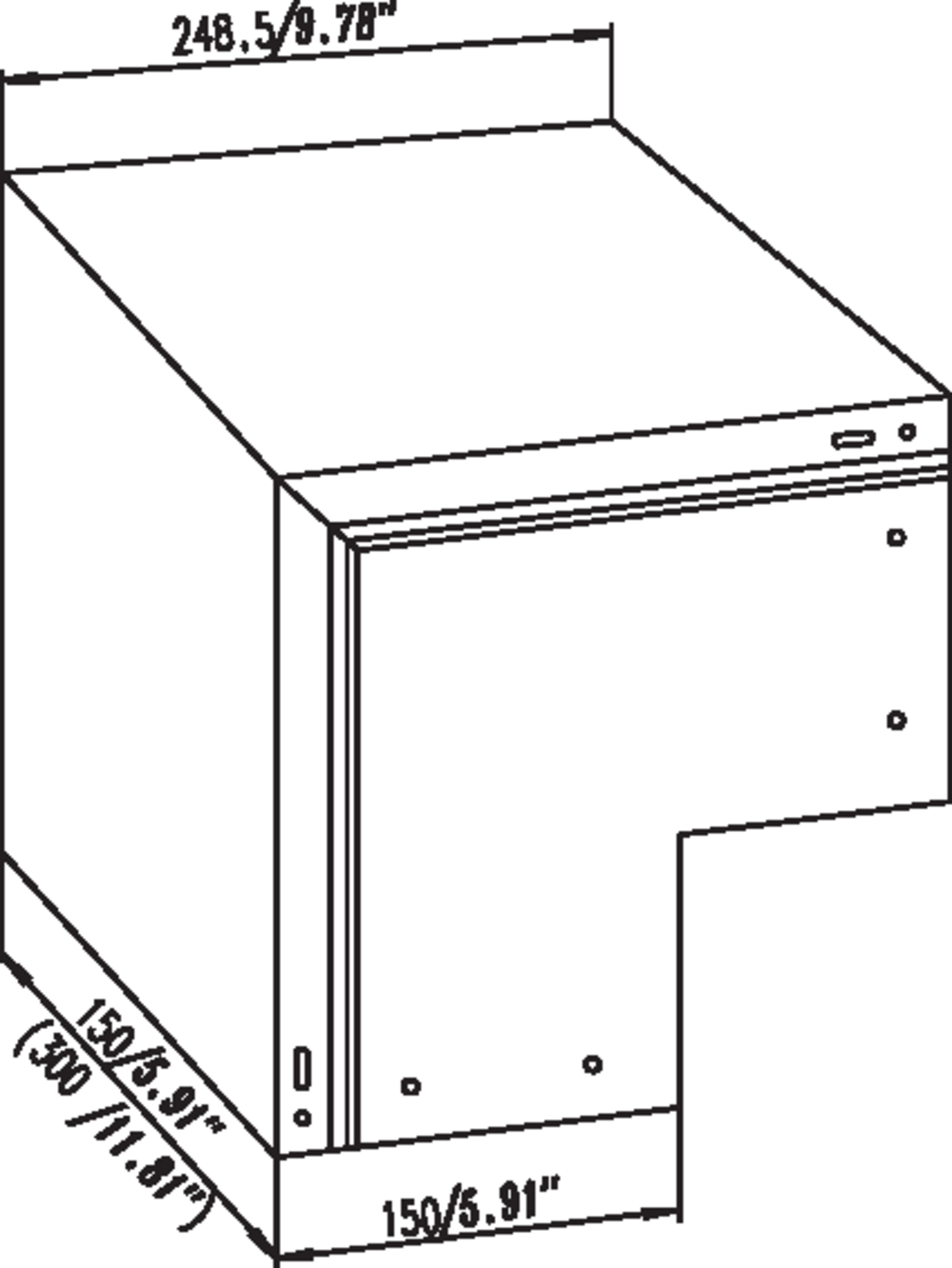

Cross-section: 150 x 150 mm/5,91 x 5,91"
-
Angle: 90°
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 2.9 kg
Notice
- 1 elbow with cover
1207-0715-10-01
Reducer
Type
Cable duct system type 1207
Cross section
from 150 x 150 mm to 100 x 100 mm
Length
185 mm
Material
Stainless steel no. 1.4301
1207-0730-15-00
Reducer
Type
Cable duct system type 1207
Cross section
from 300 x 150 mm to 150 x 150 mm
Length
280 mm
Material
Stainless steel no. 1.4301
1207-1015-03-00
Telescopic Section
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Material
Stainless steel no. 1.4301
1207-0215-00-00
End Cap
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
42 mm
Material
Stainless steel no. 1.4301
1207-0615-00-00
Adapter flange
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Material
Stainless steel no. 1.4301
1207-0115-10-00
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
With pre-drilled holes
1207-0115-10-01
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
With threads
1207-0115-20-38
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
Long pre-drilled version
1207-0115-21-38
U-bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Routing direction
horizontal
Type
Long threaded version
1207-0110-30-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Type
With pre-drilled holes
1207-0115-30-01
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
180°
Type
With threads
1207-0115-41-35
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Type
With threads
1207-0115-51-90
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
22,5°
Type
With threads
1207-0115-61-57
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
22,5°
Type
With threads
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
untreated
1207-0015-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Material
Stainless steel no. 1.4301
1207-0015-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Material
Stainless steel no. 1.4301
1207-0015-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Material
Stainless steel no. 1.4301
