1204-1315-00-90

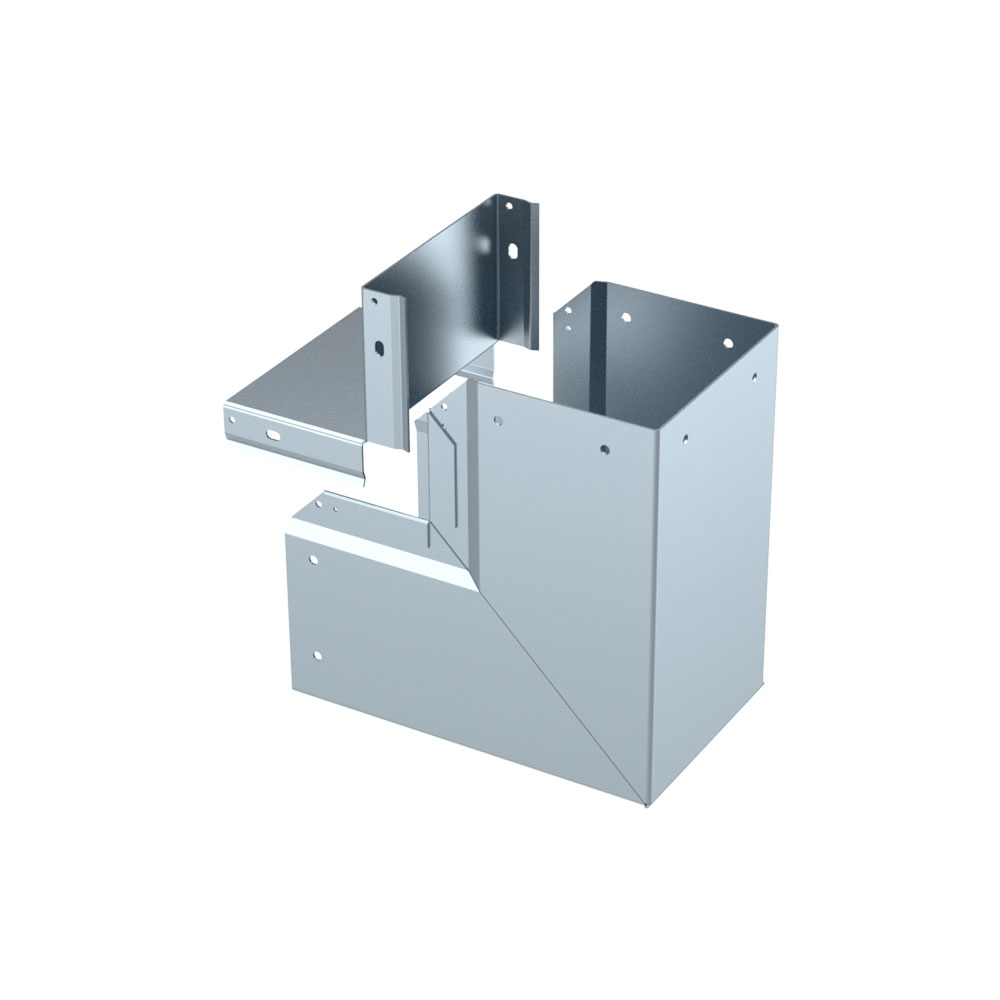

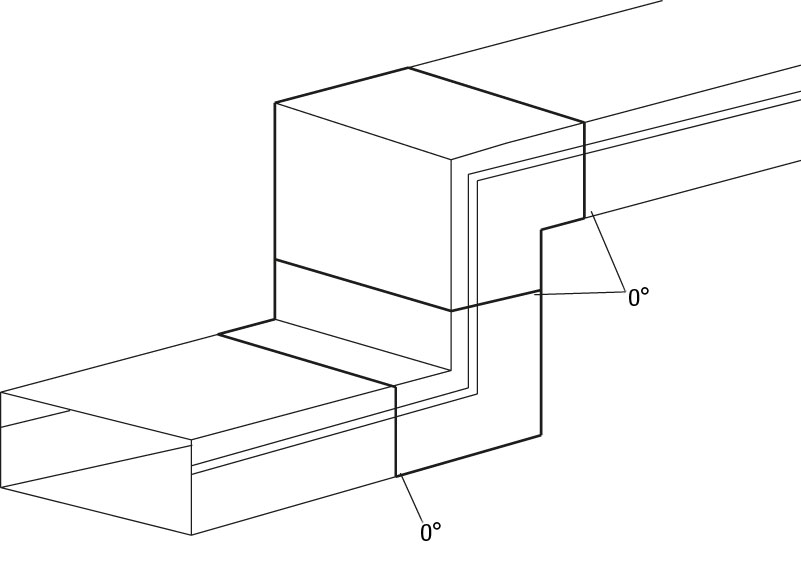

Elbow
- Continuously open insertion
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This form part has pre-drilled holes for the connecting screws of the connection brackets.

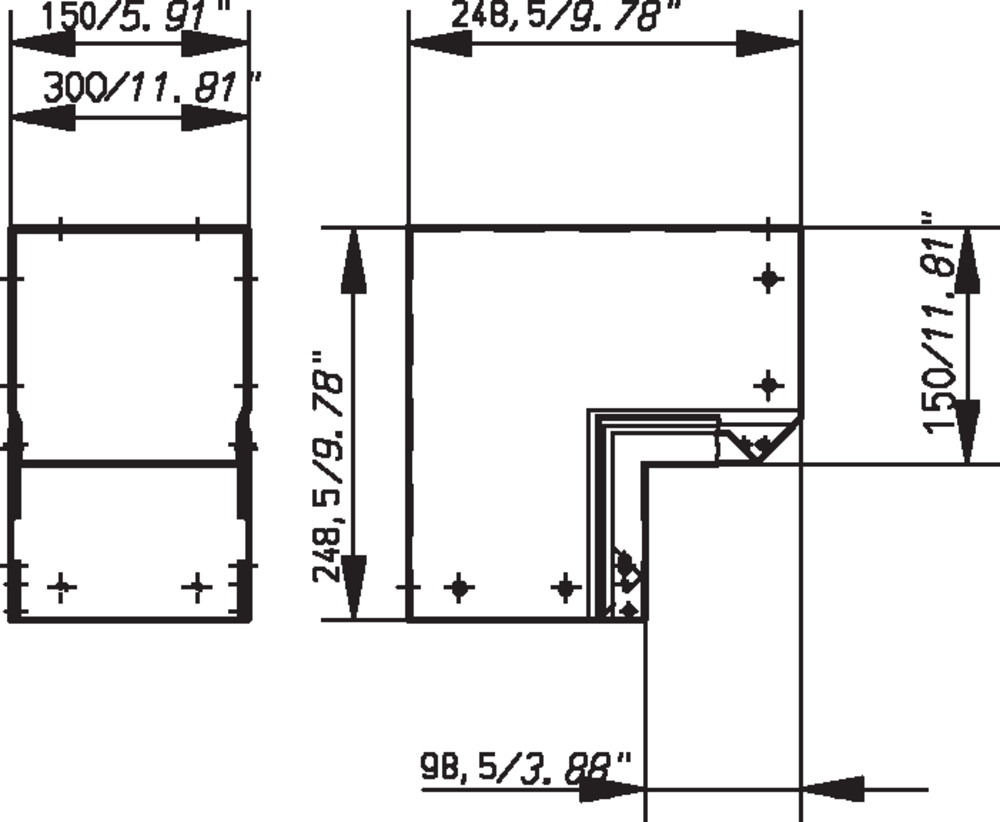

Technical Data
-
PRODUCT NUMBER: 1204-1315-00-90
-
Type: Cable duct system type 1204
-
Cross-section: 150 x 150 mm/5,91 x 5,91"
-
Angle: 90°
-
Protection type: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 2.6 kg
Notice
- 1 elbow with cover
1204-0715-10-01
Reducer
Type
Cable duct system type 1204
Cross section
from 150 x 150 mm to 100 x 100 mm
Length
185 mm
Material
Sheet steel
1204-0730-15-00
Reducer
Type
Cable duct system type 1204
Cross section
from 300 x 150 mm to 150 x 150 mm
Length
280 mm
Material
Sheet steel
1204-1015-03-00
Telescopic Section
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Dimensions
Length: 75 mm - 450 mm
Material
Sheet steel
1204-0215-00-00
End Cap
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
42 mm
Material
Sheet steel
1204-0615-00-00
Adapter flange
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Material
Sheet steel
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9002-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
untreated
1204-0015-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Material
Sheet steel
1204-0015-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Material
Sheet steel
1204-0015-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Material
Sheet steel
