1207-0615-00-00

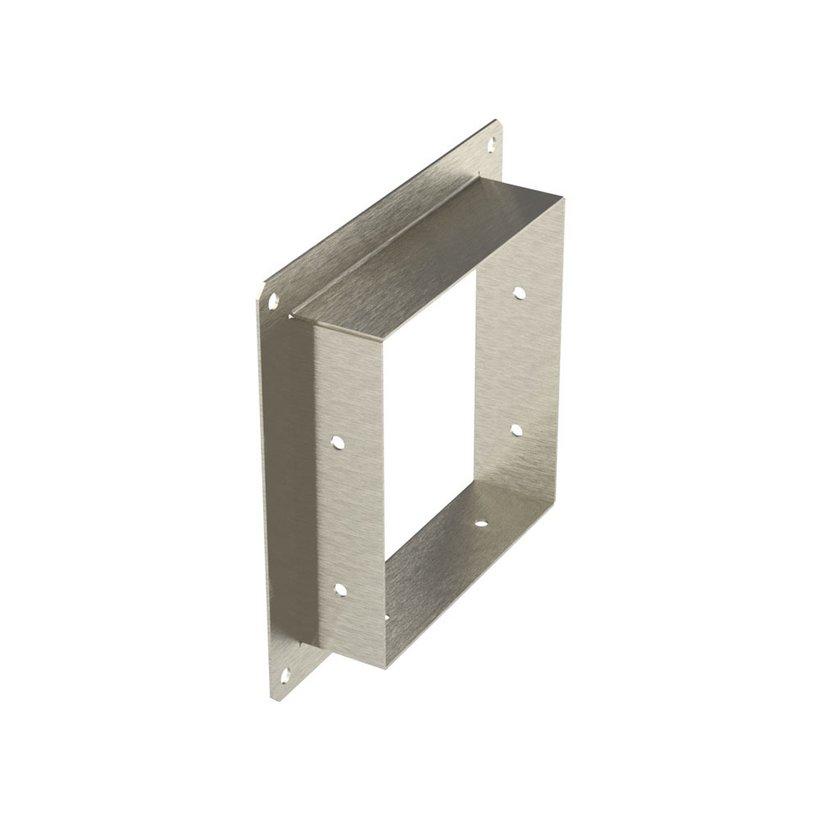

Adapter flange
- Robust design
Product description
For mounting ducts to housings, cabinets, machinery etc.
Technical Data
-
Order No.: 1207-0615-00-00
-
Type: Cable duct system type 1207
-
Cross-section: 150 x 150 mm/5,91 x 5,91"
-

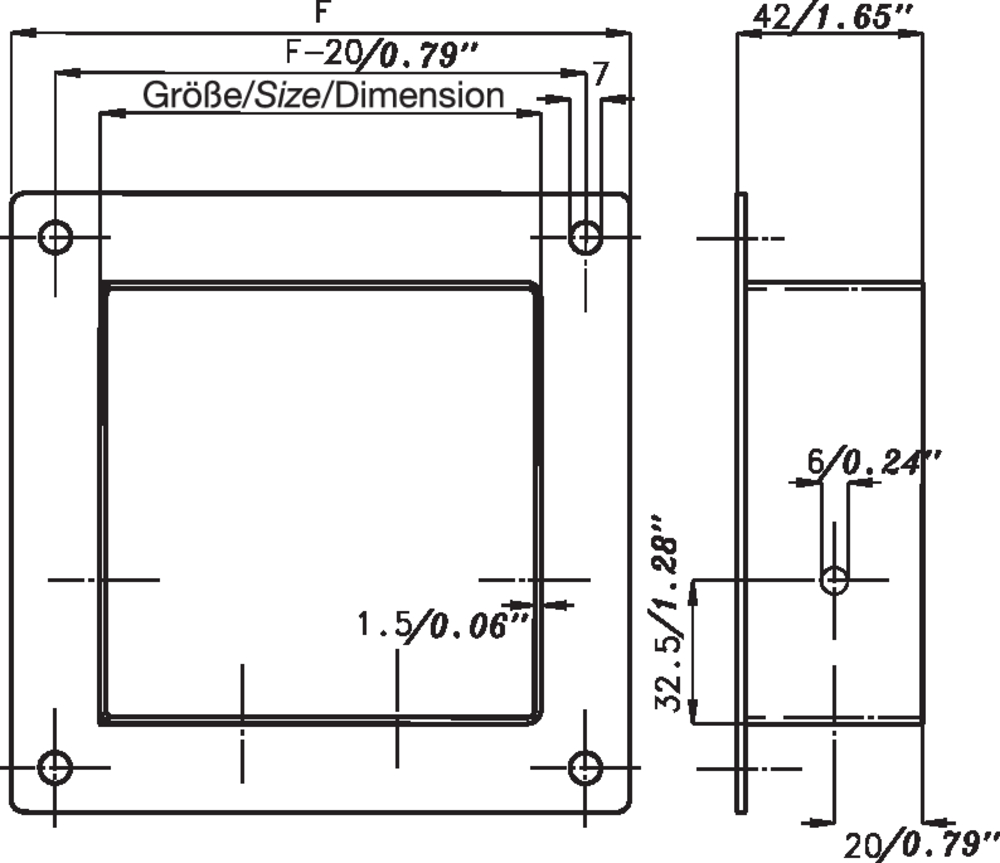

Dimension F: 190 mm
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 0.4 kg
Notice
- This accessory is provided with pre-drilled holes for the attachment screws of the U-brackets or connection brackets.
- U-brackets or connection brackets are required for assembly to other accessories.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 adapter flange
1207-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
Unfinished
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
untreated
1207-0015-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Material
Stainless steel no. 1.4301
1207-0015-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Material
Stainless steel no. 1.4301
1207-0015-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Material
Stainless steel no. 1.4301
1207-0315-13-00
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0315-90-00
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0415-00-00
T-Section
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-1315-00-90
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Stainless steel no. 1.4301
1207-1315-01-35
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Stainless steel no. 1.4301
1207-1315-02-25
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Stainless steel no. 1.4301
1207-1315-02-70
Elbow
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Stainless steel no. 1.4301
