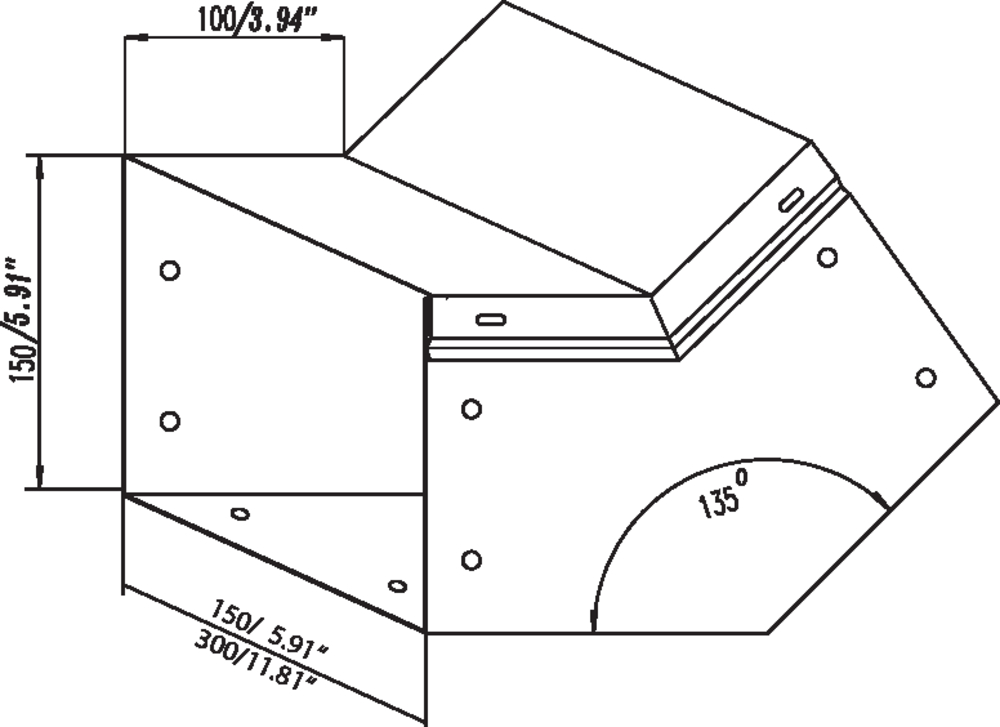

1207-1330-01-35

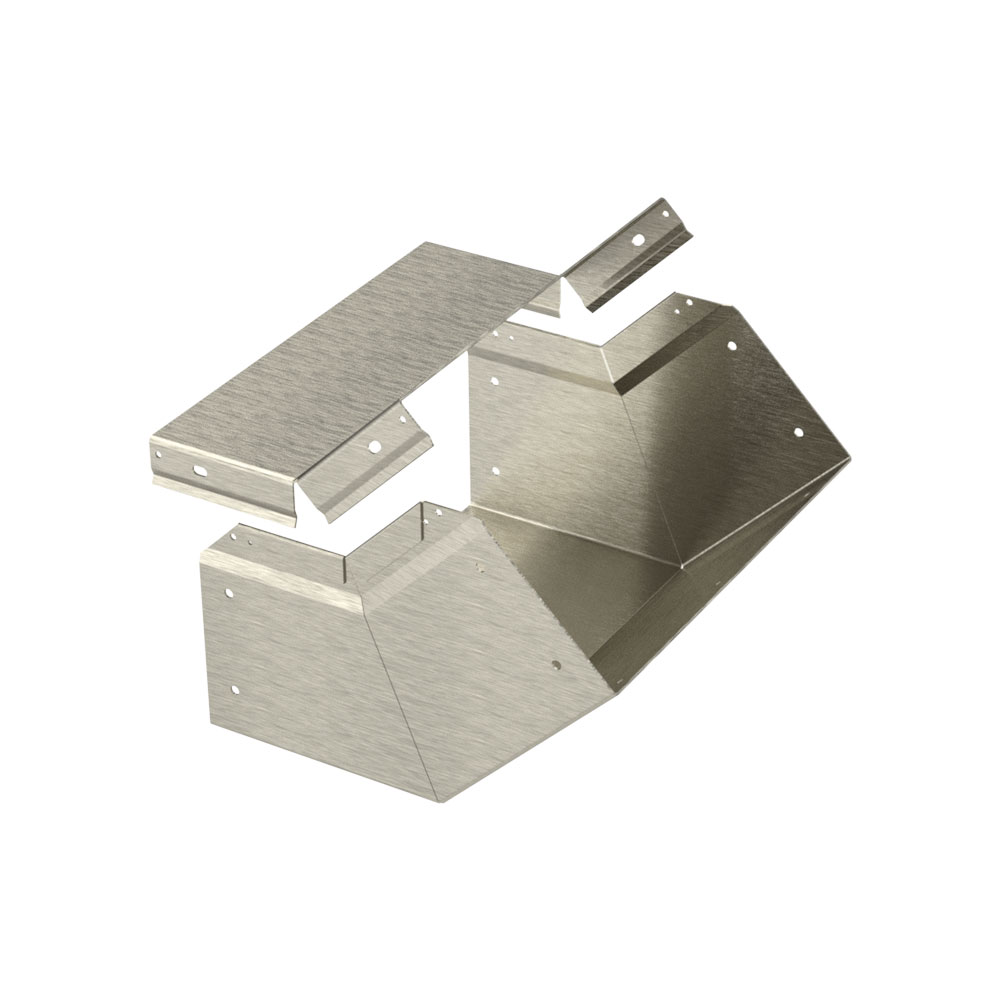

Elbow
- Continuously open insertion
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This form part has pre-drilled holes for the connecting screws of the connection brackets.
Technical Data
-
PRODUCT NUMBER: 1207-1330-01-35
-
Type: Cable duct system type 1207
-
Cross-section: 11,81 x 5,91 inch
-
Angle: 45°
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
Notice
- 1 elbow with cover
1207-0730-15-00
Reducer
Type
Cable duct system type 1207
Cross section
from 300 x 150 mm to 150 x 150 mm
Length
280 mm
Material
Stainless steel no. 1.4301
1207-1030-03-00
Telescopic Section
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Material
Stainless steel no. 1.4301
1207-0230-00-00
End Cap
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Length
42 mm
Material
Stainless steel no. 1.4301
1207-0630-00-00
Adapter flange
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Material
Stainless steel no. 1.4301
1207-1430-90-01
Reversing elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
Outlet at right rear side
Material
Stainless steel no. 1.4301
1207-1430-90-02
Reversing elbow
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
Outlet at left rear side
Material
Stainless steel no. 1.4301
1207-1530-00-00
Reversing T-Section
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Material
Stainless steel no. 1.4301
Surface
Externally brushed
1207-0130-10-00
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
With pre-drilled holes
1207-0130-10-01
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
With threads
1207-0130-20-38
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
Long pre-drilled version
1207-0130-21-38
U-bracket
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Routing direction
horizontal
Type
Long threaded version
1207-0110-30-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Type
With pre-drilled holes
1207-0115-30-01
Connection Bracket
Type
Cable duct system type 1207
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
180°
Type
With threads
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
untreated
1207-0030-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Length
500 mm
Material
Stainless steel no. 1.4301
1207-0030-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Length
1000 mm
Material
Stainless steel no. 1.4301
1207-0030-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
11,81 x 5,91 inch
Length
2000 mm
Material
Stainless steel no. 1.4301
Assembly instructions:
CAD data and other file formats:
