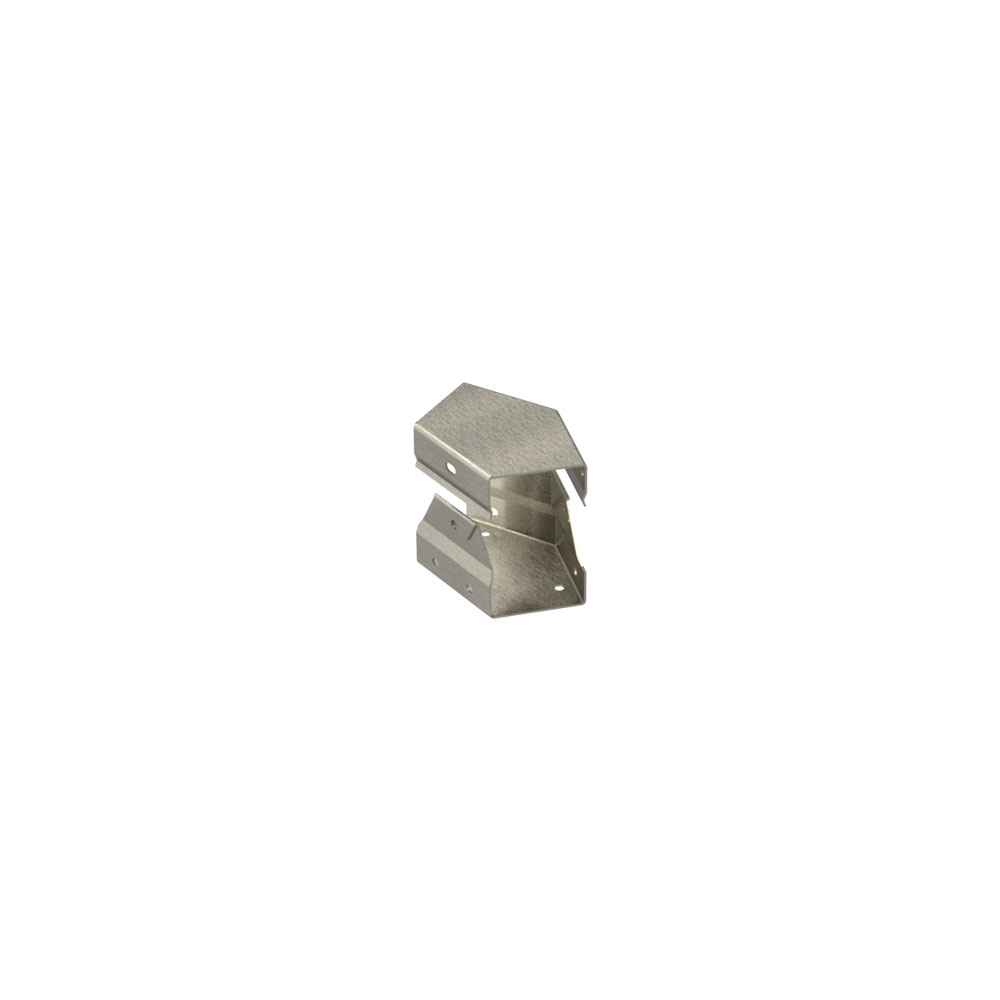

Elbow
- Continuously open insertion
Product description
The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This form part has pre-drilled holes for the connecting screws of the connection brackets.
Technical Data
-
Order No.: 1207-0306-13-00
-
Type: Cable duct system type 1207
-
Cross-section: 60 x 60 mm/2,36 x 2,36"
-
Angle: 45°
-
Laying direction: variable
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 0.9 kg
Notice
- 1 elbow with cover
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1207-0706-03-00
Reducer
Type
Cable duct system type 1207
Cross section
from 60 x 60 to 30 x 30
Length
115 mm
Material
Stainless steel no. 1.4301
1207-0710-06-00
Reducer
Type
Cable duct system type 1207
Cross section
from 100 x 100 to 60 x 60
Length
150 mm
Material
Stainless steel no. 1.4301
1207-1006-03-00
Telescopic Section
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Stainless steel no. 1.4301
1207-0206-00-00
End Cap
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Length
42 mm
Material
Stainless steel no. 1.4301
1207-0606-00-00
Adapter flange
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Stainless steel no. 1.4301
1207-0106-10-00
U-bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Routing direction
horizontal
Type
With pre-drilled holes
1207-0106-10-01
U-bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Routing direction
horizontal
Type
With threads
1207-0106-30-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Type
With pre-drilled holes
1207-0106-30-01
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Type
With threads
1207-0106-40-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Type
With pre-drilled holes
1207-0106-41-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Type
With threads
1207-0106-50-90
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Type
With pre-drilled holes
1207-0106-51-90
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Type
With threads
1207-0106-60-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
22,5°
Type
With pre-drilled holes
1207-0106-61-00
Connection Bracket
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
22,5°
Type
With threads
1207-9001-05-08
Screw with Nut
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
unfinished
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
untreated
1207-0006-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Material
Stainless steel no. 1.4301
1207-0006-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Material
Stainless steel no. 1.4301
1207-0006-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Material
Stainless steel no. 1.4301
