0396-0011-60-00

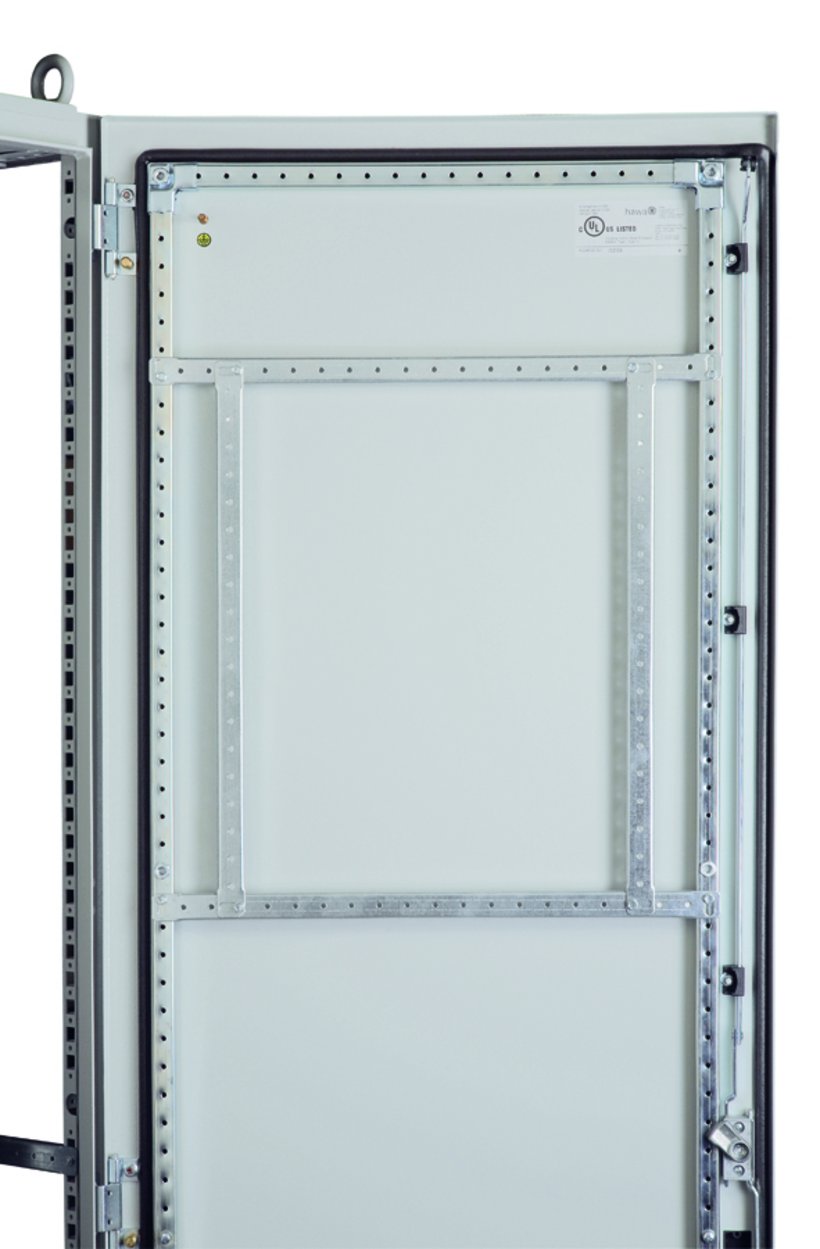

Mounting frame in doors
- For universal design of mounting levels in the door
Product description
For lateral mounting of light components, cable ducts, wiring harnesses etc.

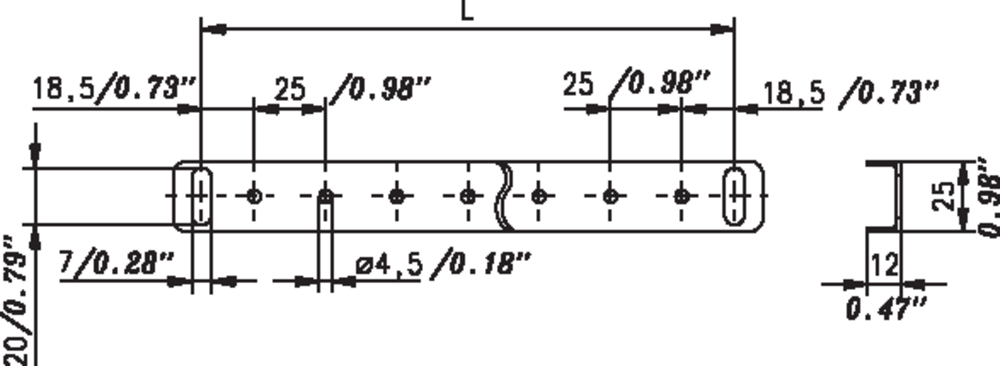

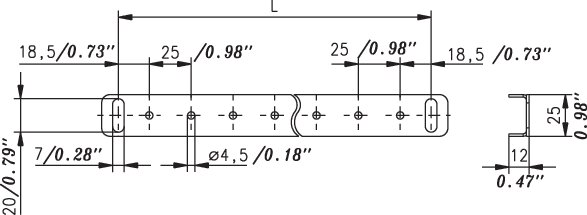

With Ø 4.5 mm holes every 25 mm for DIN 7500 M5x12 or DIN 7516 M5x10 bolts
Technical Data
-
Order No.: 0396-0011-60-00
-
Dimension: Suitabel for width : 600 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Size: Length : 487 mm
-
Weight: 0.2 kg
-
Sheet thickness: 1,5 mm/0,0,6"
- 1 rail without mounting hardware
