0318-6016-01-37
19"-Swing frame type 0318
Product description
Protective ground connection according to DIN EN 61439-1.
Locks: For 23.62" wide cabinets swing frames come with top and bottom 0.12" double mandrel casement locks, for 31.5" wide cabinets swing frames come with 0.12" double mandrel center bar lock.
Load carrying capacity: 397 lbs at 90°, 309 lbs at 165°.
Hinge mounting: Left or right.
Technical data
-
Article number: 0318-6016-01-37
-
PRODUKTGRUPPENNAMEEBENE4: Universal accessories / Accessories control cabinets inside
-
PRODUKTGRUPPENNAMEEBENE5: 19"-Elements
-
Dimensions: suitable for width : 600 mm suitable for height : 1600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Installation height: H1: 1459 mm/57,44"
HE: HE/U31 -
Material: Sheet steel
-
suitable for type: lateral
-
Sheet thickness: 1.5 mm
Notice
- The attachment bars for swing-frames need to be selected to fit the width of the cabinet. For 0-165° the swing support set 165° needs to be selected (please order separately under part no. 0318-7080-18-07). The following fluorescent lamp can be mounted in front of the swivel frames. Other locking bolts on request.
- 1 swing frame without attachment bars (must be ordered separately)
0370-6016-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6016-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0390-6016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6016-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:

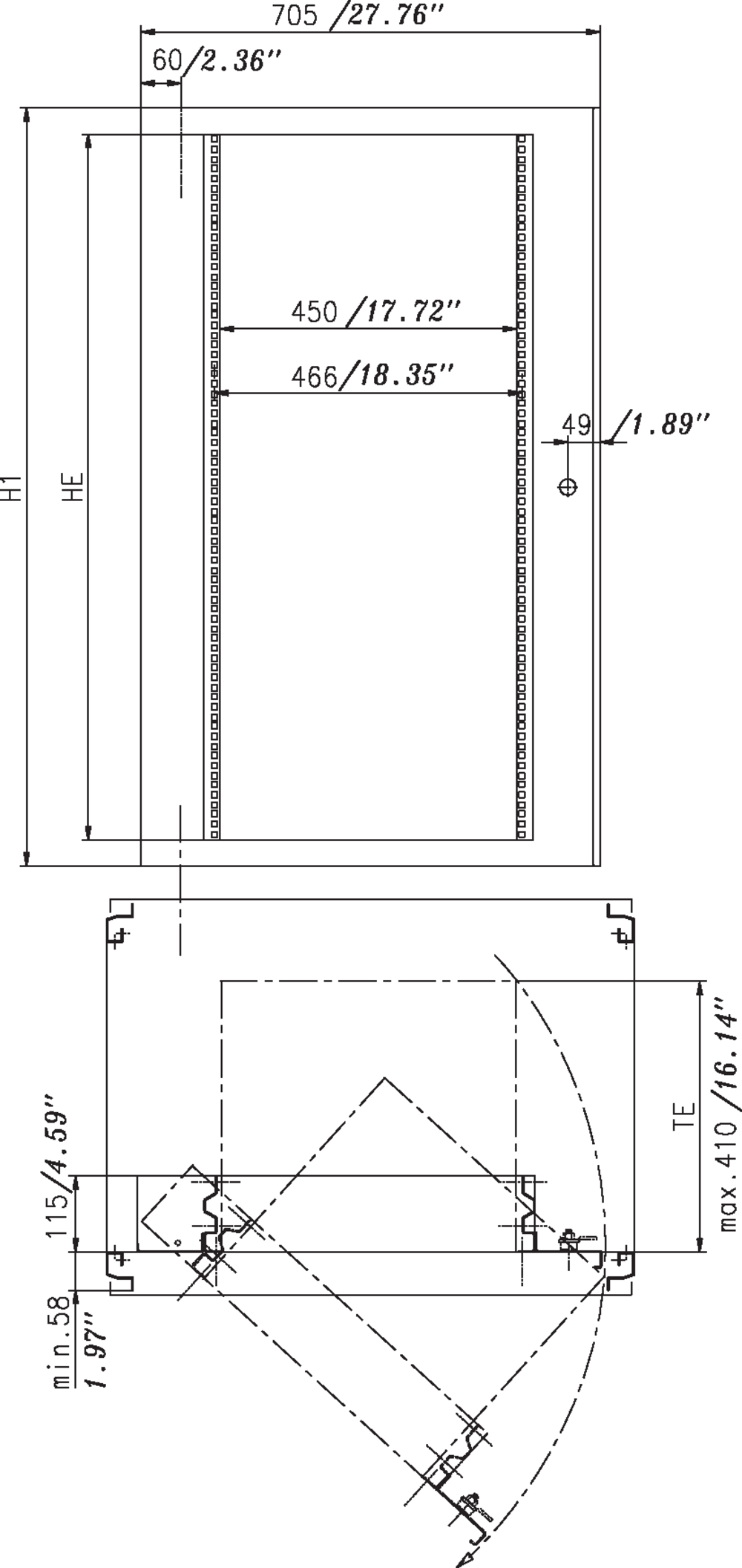

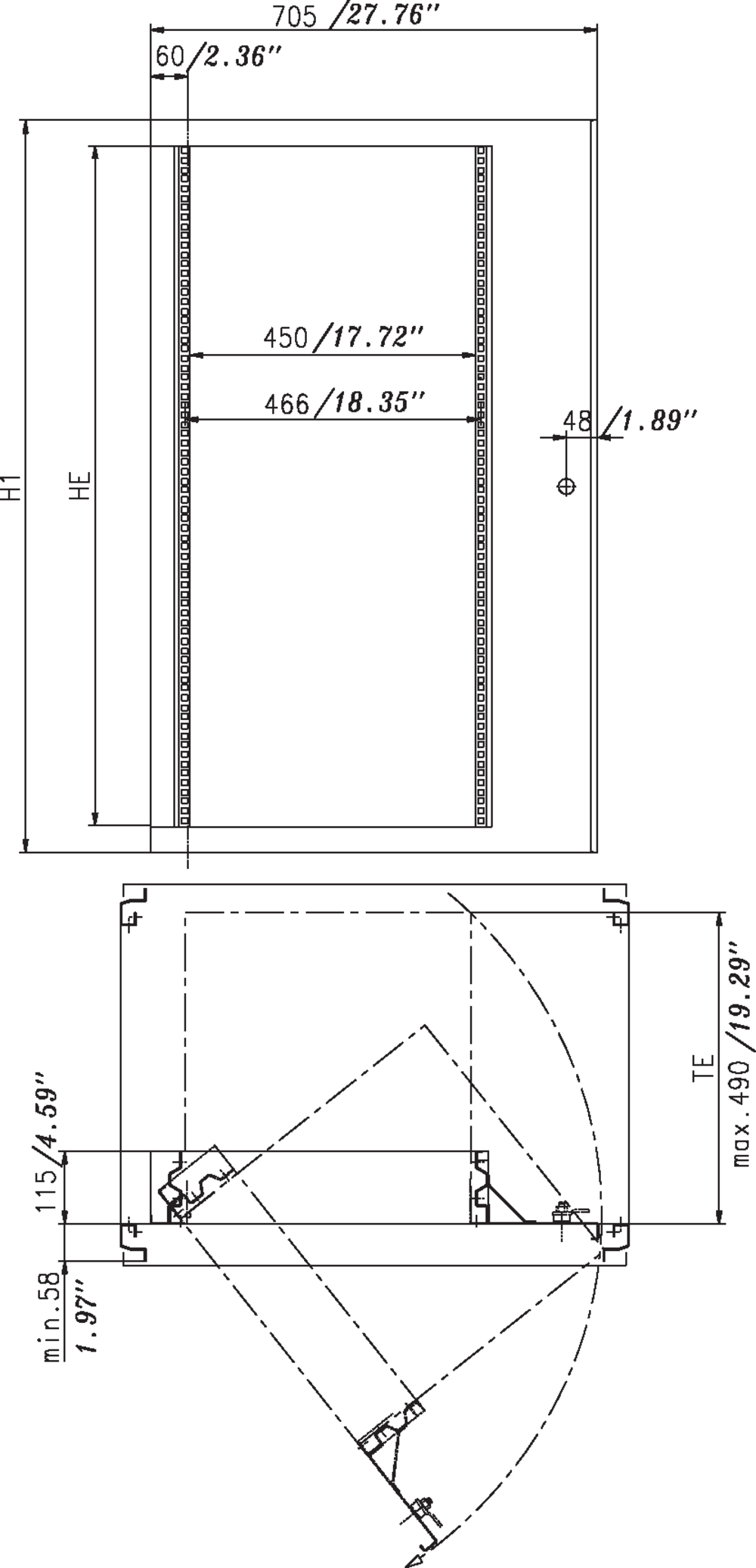

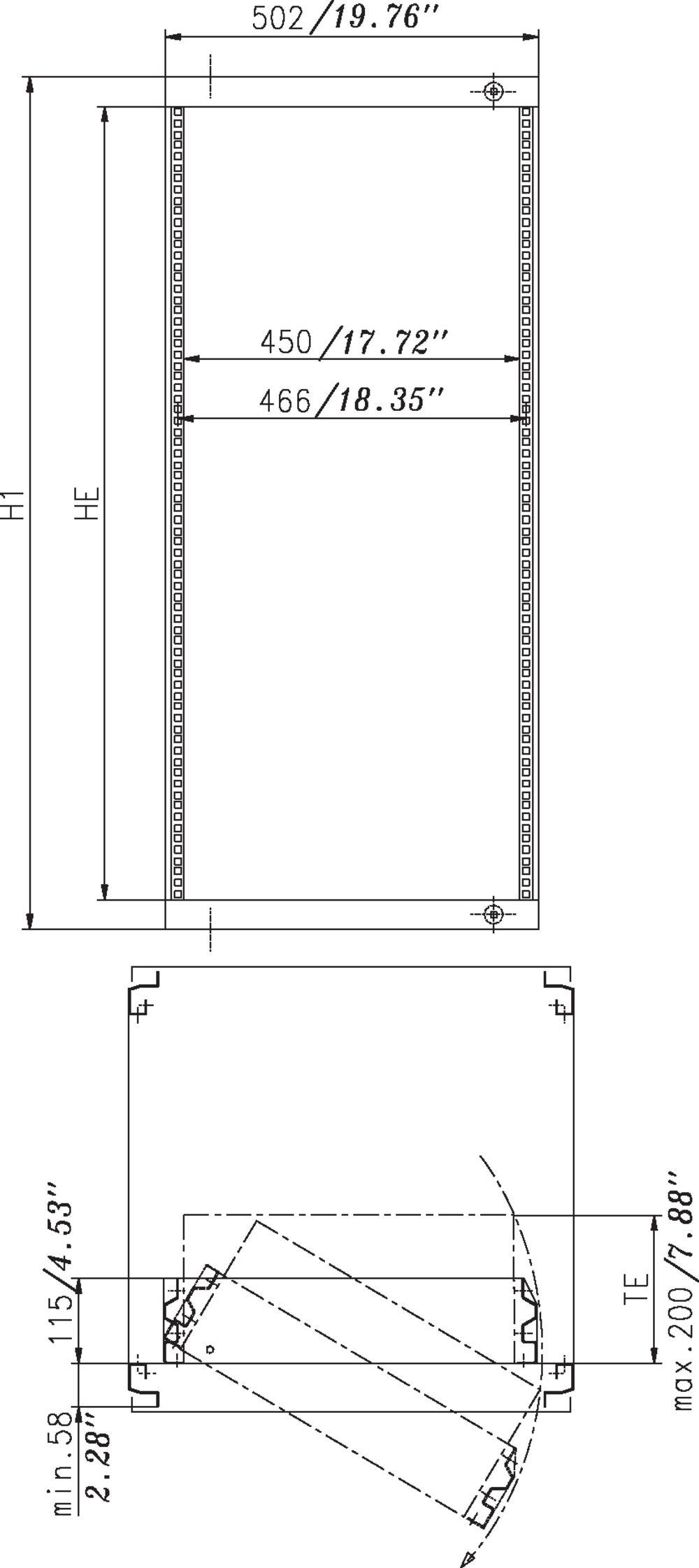

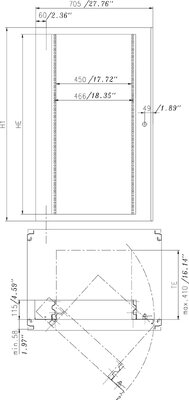

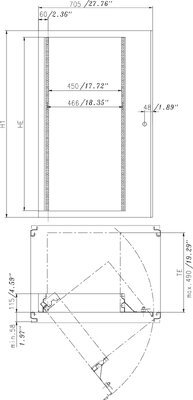

CAD data and other illustrations:
