0318-7060-90-07

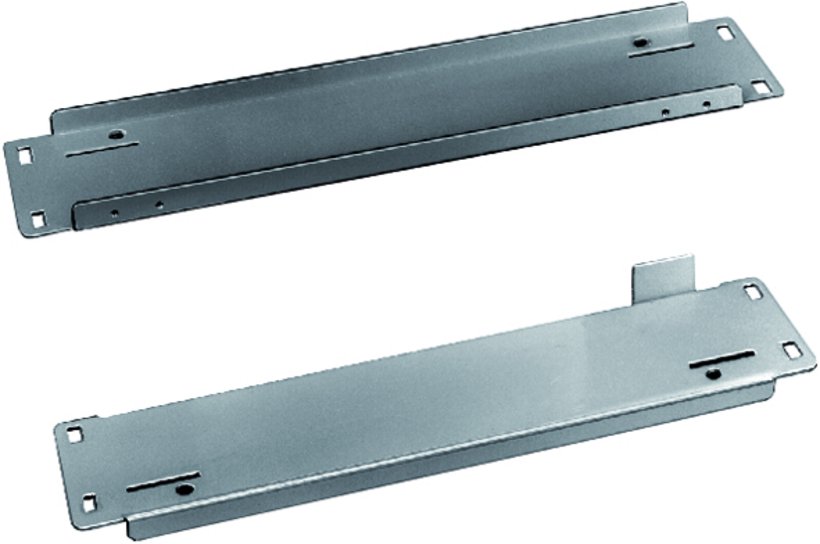

Attachment bars for swing-frame 0318
- For mounting of swing frame 0318
- Opening angle 120° if mounted in foremost position; otherwise 90°
Product description
Protective ground connection according to DIN EN 61439-1.
Swing frames can be mounted on the right or left.
Opening angle 90°.
Technical Data
-
Order No.: 0318-7060-90-07
-
Dimension: Suitabel for width : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Sheet thickness: 3 mm/0,12"
Notice
- It is also possible to mount two 600 mm / 23.62" wide swing frames on the frame of 1200 mm / 47.24" wide cabinets (both installed on the outside).
- 1 set = 2 attachment bars with mounting hardware
0318-6016-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1600 mm
Suitable for type
lateral
0318-6018-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1800 mm
Suitable for type
lateral
0318-6020-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2000 mm
Suitable for type
lateral
0318-6022-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2200 mm
Suitable for type
lateral
