165° kit for 19"-swing frame

0318-7080-18-07

165° kit for 19"-swing frame

  • For mounting swing frames 0318
  • Extends max. opening angle to 165°

Product description

Protective ground connection according to DIN EN 61439-1.

For swing frames with center or lateral 19"-arrangement (cannot be used in 23.62" wide cabinets).

Technical data

  • Article number: 0318-7080-18-07
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Sheet thickness: 3 mm

Notice

  • only for swing frames for 800 mm / 31.49" wide cabinets
  • 1 165° swing support set with mounting hardware
19"-Swing frame type 0318
0318-6016-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1600 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-6018-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1800 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-6020-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2000 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-6022-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2200 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-8016-02-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1600 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-8016-03-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1600 mm
Suitable for type
center
19"-Swing frame type 0318
0318-8018-02-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1800 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-8018-03-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1800 mm
Suitable for type
center
19"-Swing frame type 0318
0318-8020-02-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2000 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-8020-03-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2000 mm
19"-Swing frame type 0318
0318-8022-02-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2200 mm
Suitable for type
lateral
19"-Swing frame type 0318
0318-8022-03-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2200 mm
Suitable for type
center

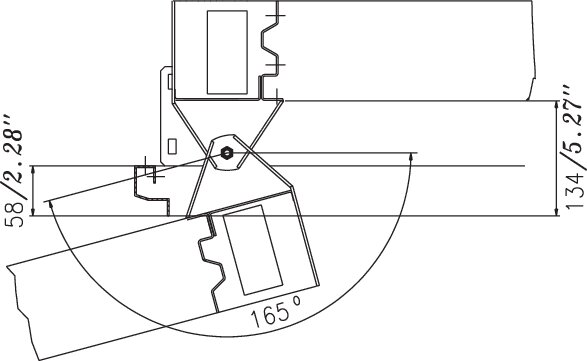

CAD data and other illustrations:

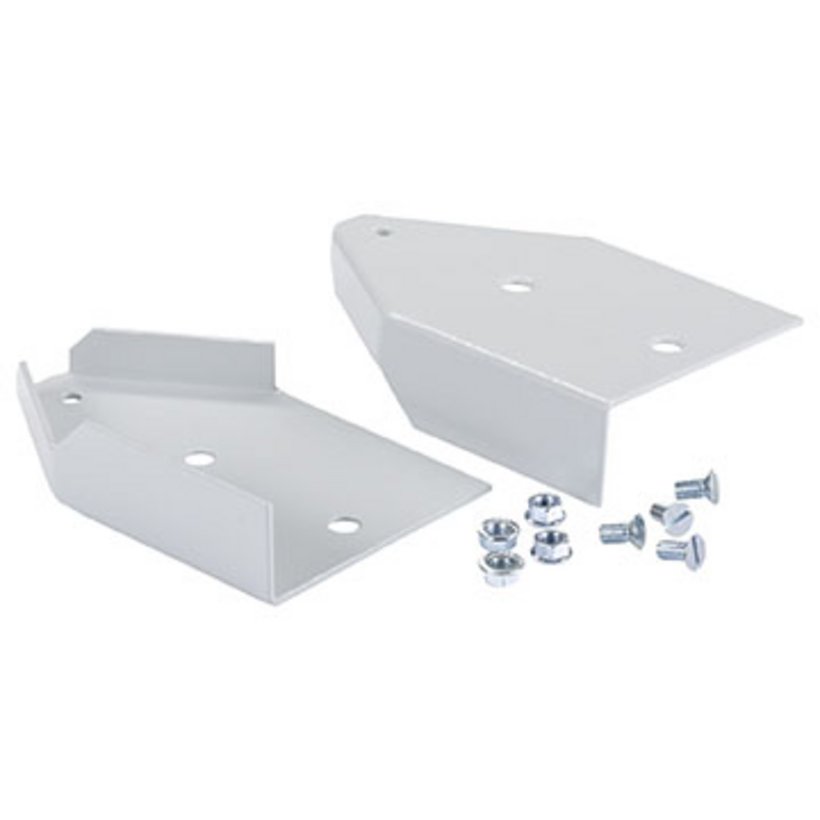

165° kit for 19"-swing frame
165° kit for 19"-swing frame
Protective ground connection according to DIN EN 61439-1.
For swing frames with center or lateral 19"-arrangement (cannot be used in 23.62" wide cabinets).
