0317-7001-16-01

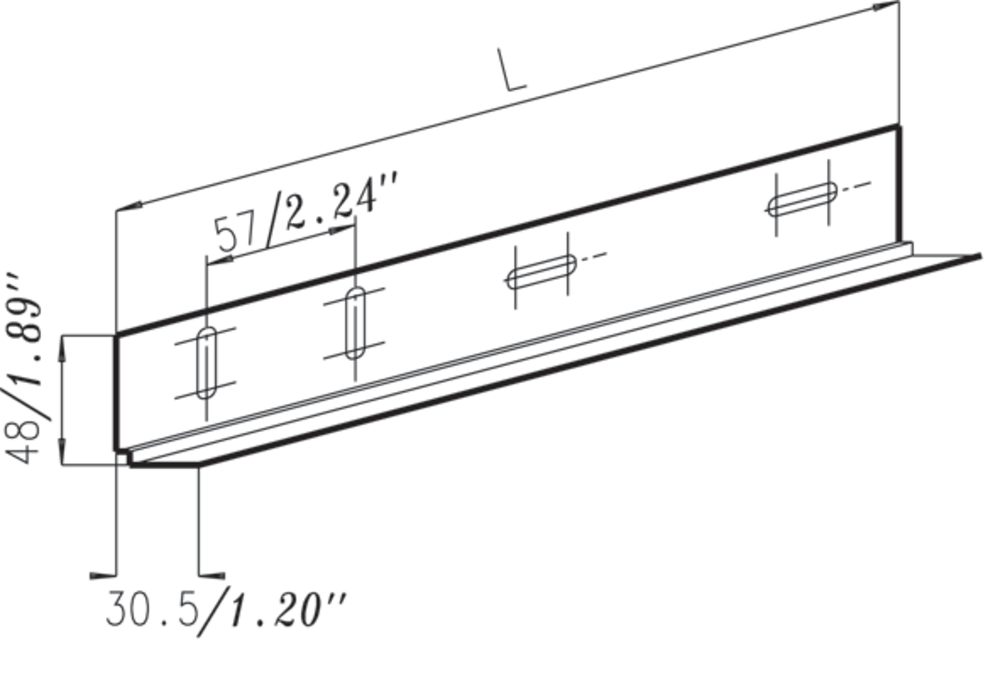

Slide rails 0317
Product description
For 0318-swing frames.
For supporting heavy slide-in modules
Technical Data
-
Order No.: 0317-7001-16-01
-
Surface: Galvanized and blue passivated
-
Material: Sheet steel
-
Size: Length : 210 mm
-
Sheet thickness: 1,5 mm/0,0,6"
- 1 set = 2 pieces (1 left and right with mounting hardware)
0318-6016-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1600 mm
Suitable for type
lateral
0318-6018-01-37
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
1800 mm
Suitable for type
lateral
0318-6020-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2000 mm
Suitable for type
lateral
0318-6022-01-47
19"-Swing frame type 0318
Suitable for width
600 mm
Suitable for Height
2200 mm
Suitable for type
lateral
0318-8016-02-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1600 mm
Suitable for type
lateral
0318-8016-03-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1600 mm
Suitable for type
center
0318-8018-02-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1800 mm
Suitable for type
lateral
0318-8018-03-37
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
1800 mm
Suitable for type
center
0318-8020-02-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2000 mm
Suitable for type
lateral
0318-8022-02-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2200 mm
Suitable for type
lateral
0318-8022-03-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2200 mm
Suitable for type
center
