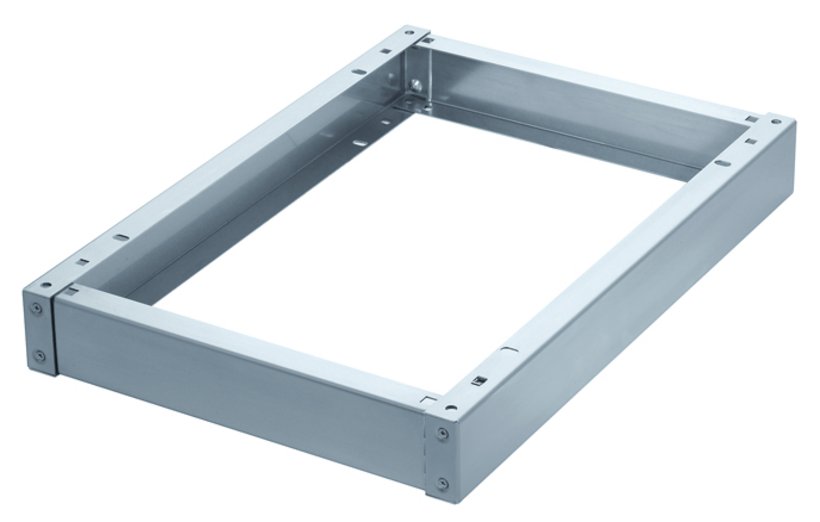

Bases height 100 mm for cabinets type H370 and H375
Bases height 100 mm for cabinets type H370 and H375

0376-6001-40-11

Bases height 100 mm for cabinets type H370 and H375

  • For free-standing single and ganged-together modular cabinets
  • Rugged U-profiles
  • High lifting capacity

Product description

Base for installation under cabinets.

For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.

Technical Data

  • Order No.: 0376-6001-40-11
  • Dimension: Suitabel for width : 600 mm  Suitable for depth : 400 mm
  • Type: 600 mm x X x 400 mm
  • Surface: Externally brushed
  • Material: Stainless steel no. 1.4301
  • Hole size A: 305 mm
  • Sheet thickness: 2 mm
  • Base depth (t): 350 mm

Notice

  • If mounted to free-standing cabinets type H370, a 25 mm recess is provided at the rear side (base panel).
  • From W-600 mm / 23.62" a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88") is available upon request.
  • Base complete, unassembled, with assembly and mounting hardware.
