0376-6001-60-11

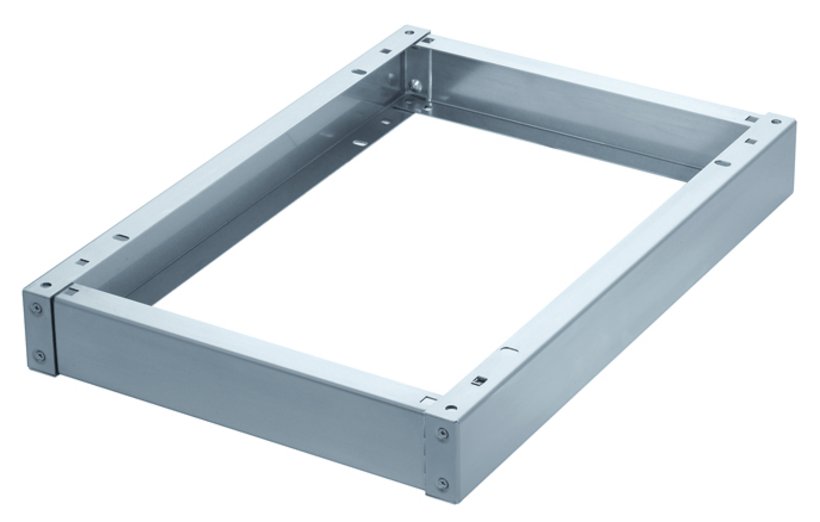

Bases height 100 mm for cabinets type H370 and H375
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description
Base for installation under cabinets.
For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.
Technical Data
-
Order No.: 0376-6001-60-11
-
Dimension: Suitabel for width : 600 mm Suitable for depth : 600 mm
-
Type: 600 mm x X x 600 mm
-
Surface: Externally brushed
-
Material: Stainless steel no. 1.4301
-
Hole size A: 505 mm
-
Sheet thickness: 2 mm
-
Base depth (t): 550 mm
Notice
- If mounted to free-standing cabinets type H370, a 25 mm recess is provided at the rear side (base panel).
- From W-600 mm / 23.62" a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88") is available upon request.
- Base complete, unassembled, with assembly and mounting hardware.
0370-6018-60-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-6018-60-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-6020-60-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-6020-60-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-6018-60-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-6018-60-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-6020-60-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-6020-60-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Assembly instructions:
CAD data and other file formats:
