4533-6016-00-01

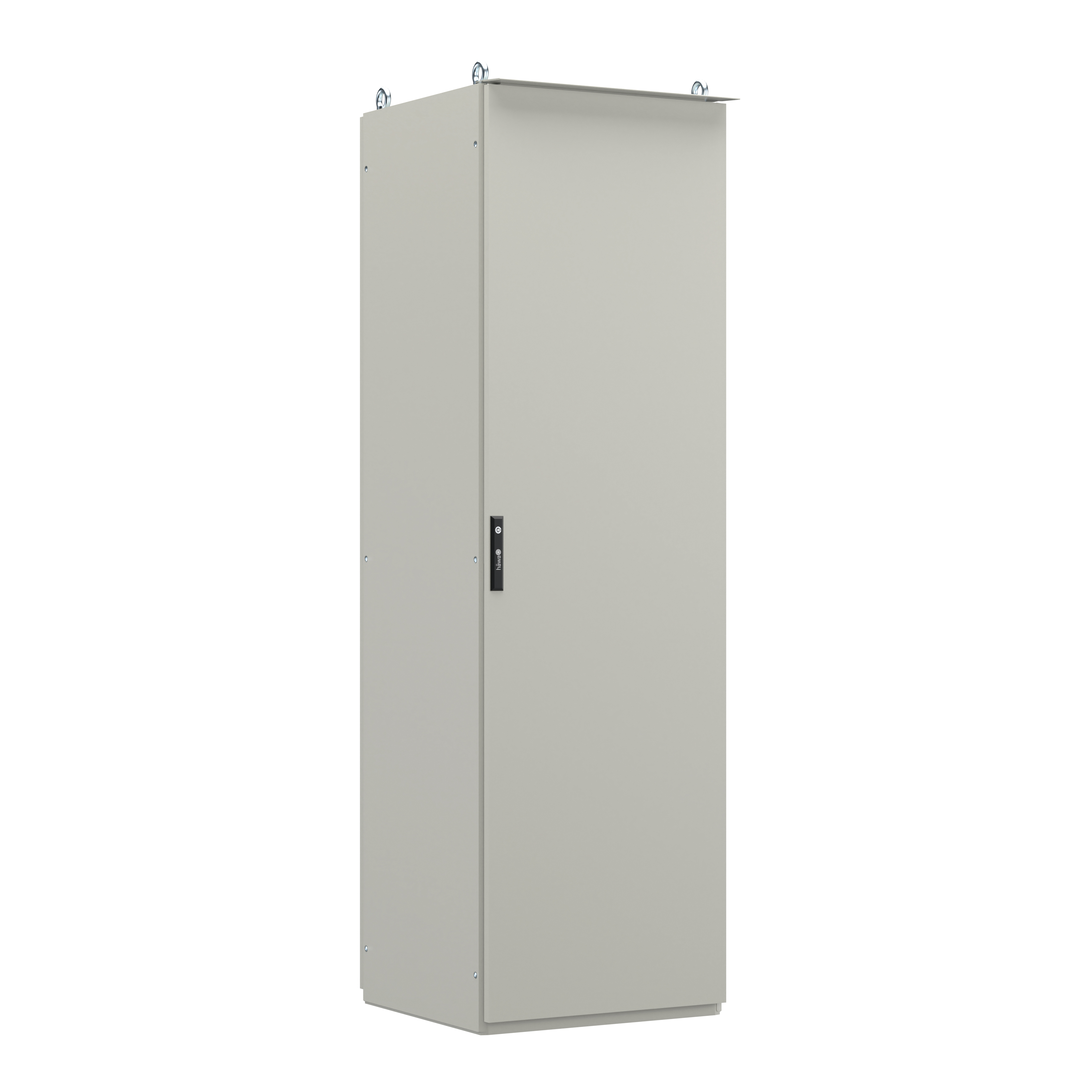

RainKit single door cabinets for H395
- For Type 3R
- Drilling is not required
- Can be used for all cabinet depth up to 800 mm
Product description
Rainkit for häwa free-standing and modular cabinets of series H370/H390 and H375/H395 with UL label. The innovative design guarantees an upgrade of the series for outdoor use according to UL Type 3R.
Can be mounted to standard sizes up to a max. dimension of (in mm) W-1200 x H-2200 x D-800.
Rainproof through rain rail 3R.
All individual parts correspond to the material requirements according to UL Type 3R, 12.
Technical data
-
Article number: 4533-6016-00-01
-
Surface: Sheet steel Powder coating RAL 7035, texture finish
-
Protection class: Type: 1, 12, 3R is possible with type H395/H390 only
-
Dimensions: suitable for width : 600 mm suitable for height : 1600 mm
-
Variant: Rain rail 3R
Notice
- Roof plate 3R available upon request.
- Other dimensions and versions upon request.
- 1 RainKit (set) complete including operation manual
0390-6016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6016-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
