4533-1022-00-01

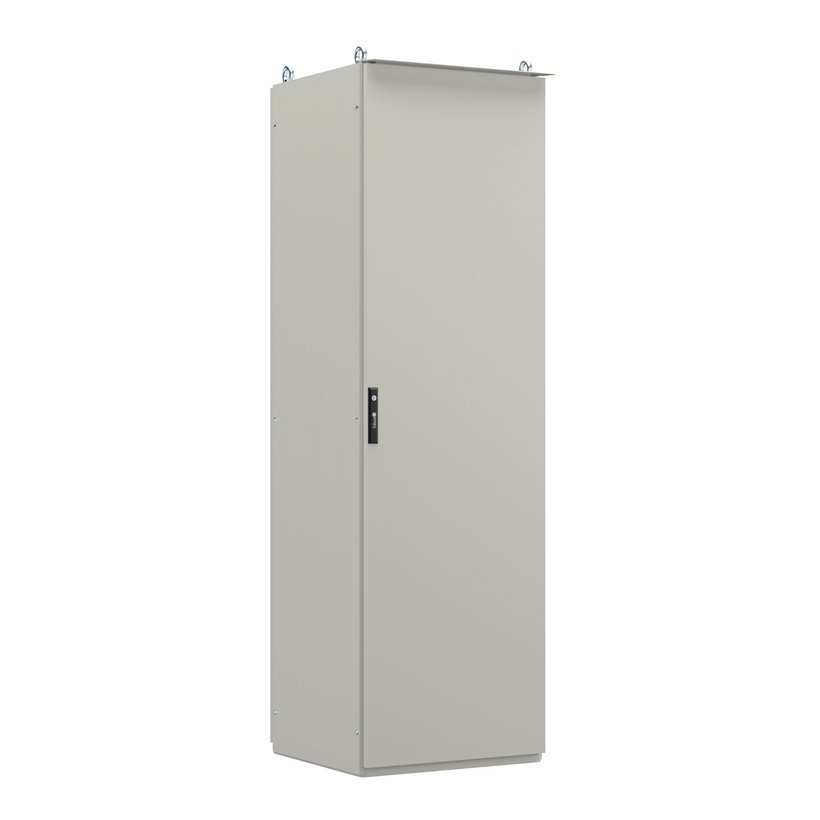

RainKit single door cabinets for H395
- For Type 3R
- Drilling is not required
- Can be used for all cabinet depth up to 800 mm
Product description
Rainkit for häwa free-standing and modular cabinets of series H370/H390 and H375/H395 with UL label. The innovative design guarantees an upgrade of the series for outdoor use according to UL Type 3R.
Can be mounted to standard sizes up to a max. dimension of (in mm) W-1200 x H-2200 x D-800.
Rainproof through rain rail 3R.
All individual parts correspond to the material requirements according to UL Type 3R, 12.
Technical Data
-
Order No.: 4533-1022-00-01
-
Surface: Sheet steel Powder coating RAL 7035, texture finish
-
Protection type: Type: 1, 12, 3R is possible with type H395 only
-
Dimension: Suitabel for width : 1000 mm Suitable for height : 2200 mm
-
Type: Rain rail 3R
Notice
- Roof plate 3R available upon request.
- Other dimensions and versions upon request.
- 1 RainKit (set) complete including operation manual
0395-1222-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1222-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Assembly instructions:
CAD data and other file formats:
