0331-9191-00-13

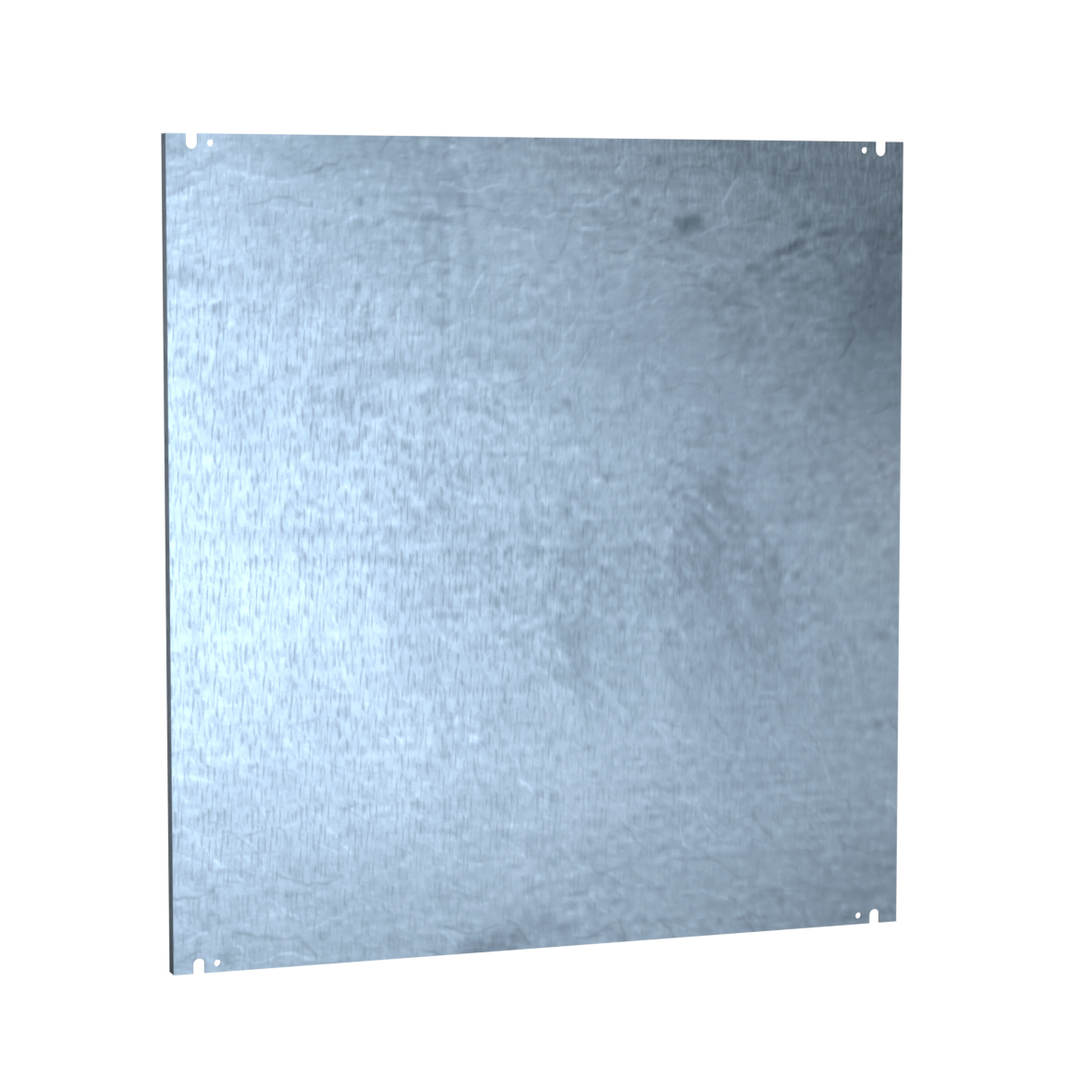

Mounting plate
Product description
Mounting plate suitable for SN enclosure and compact69.
Protective ground connection to DIN EN 61439-1.

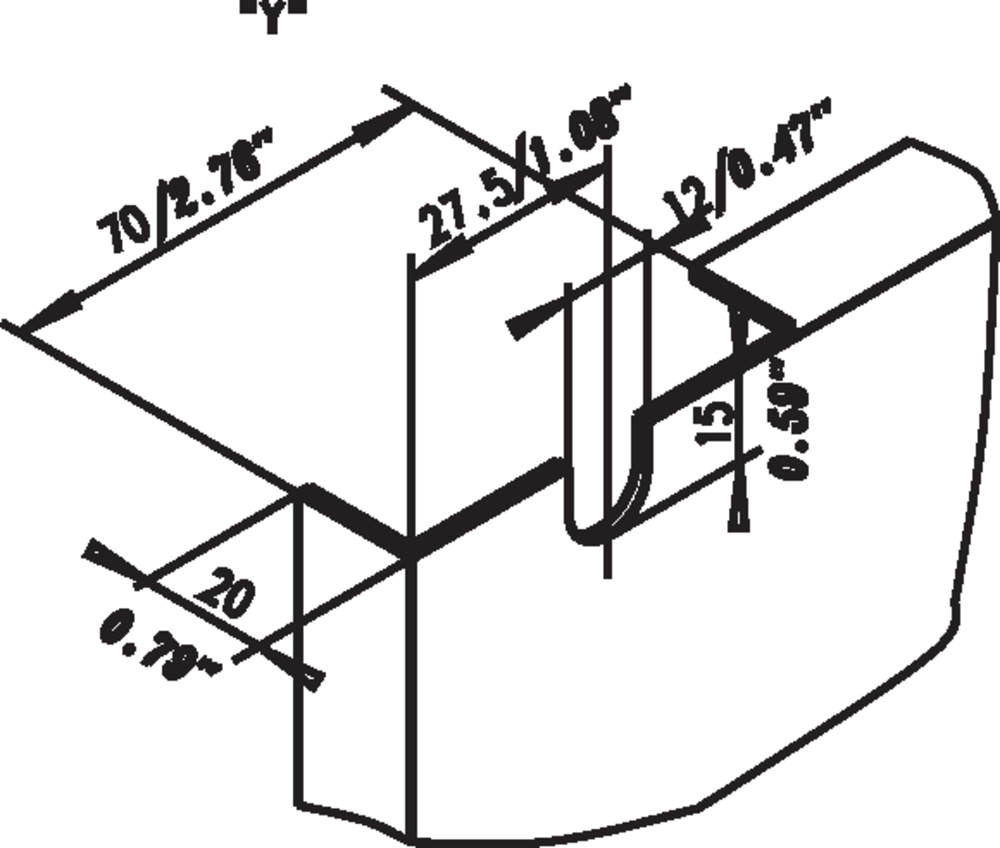

From housing width/height >= 801 mm with 20 mm flanged mounting plate.
Technical Data
-
PRODUCT NUMBER: 0331-9191-00-13
-
Material: Sheet steel
-
Width: 845 mm
-
Height: 885 mm
-
Suitabel for width: 915 mm
-
Suitable for height: 915 mm
-
Sheet thickness: Moungting panel: 2,5 mm
-
Surface: Galvanized
-
Mounting plate smooth: 0
-
Mounting plate edged: 1
- 1 mounting plate without hardware
3331-9191-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
