0331-5050-00-13

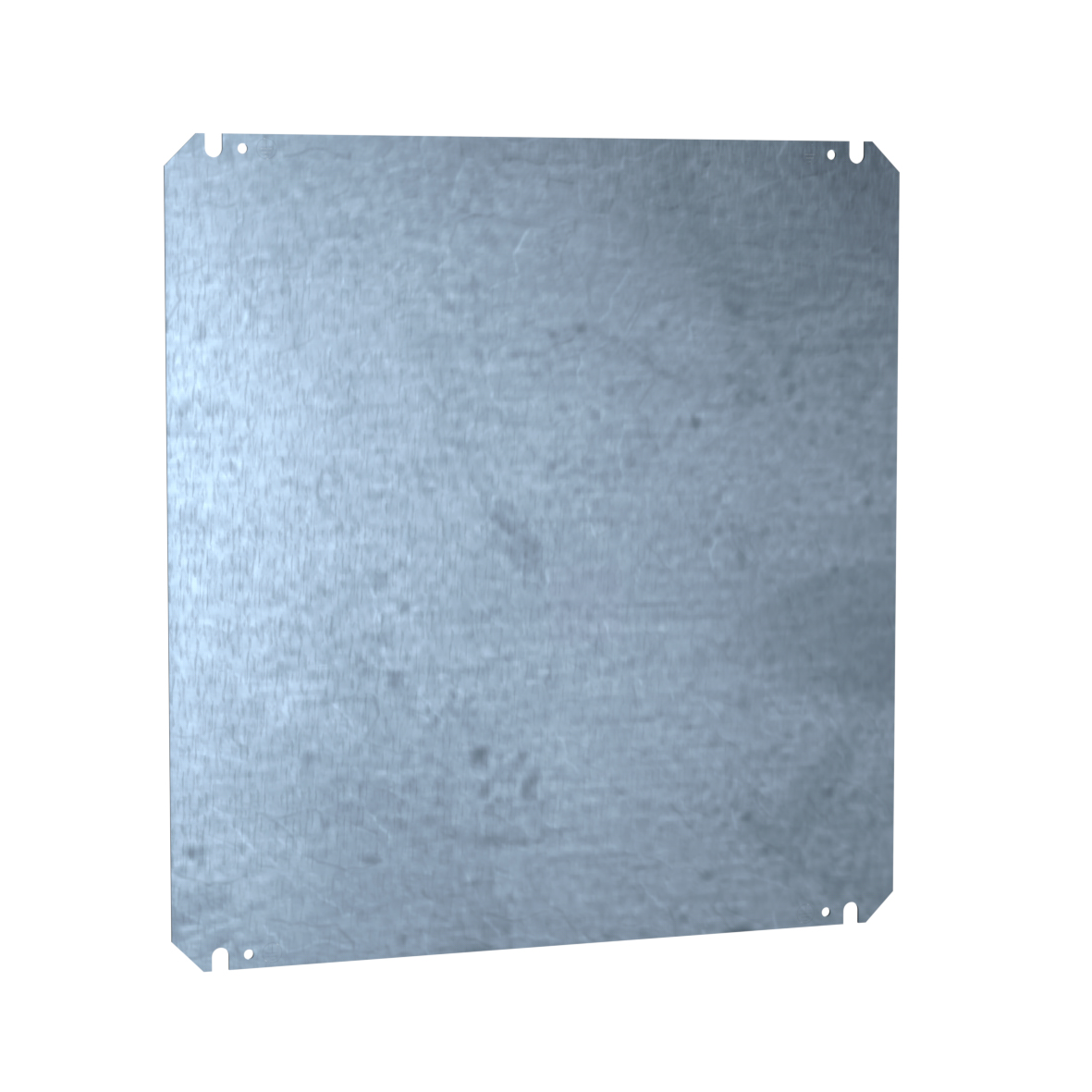

Mounting plate
Product description
Mounting plate suitable for SN enclosure and compact69.
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 801 mm with 20 mm flanged mounting plate.
Technical Data
-
PRODUCT NUMBER: 0331-5050-00-13
-
Material: Sheet steel
-
Width: 443 mm
-
Height: 470 mm
-
Suitabel for width: 500 mm
-
Suitable for height: 500 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Surface: Galvanized
-
Weight: 3.3 kg
-
Mounting plate smooth: 0
-
Mounting plate edged: 0
- 1 mounting plate without hardware
3331-5050-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
3331-5050-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
3331-5050-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
3331-5050-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
3331-5050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3351-5050-21-00
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
3351-5050-21-10
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
