Product description

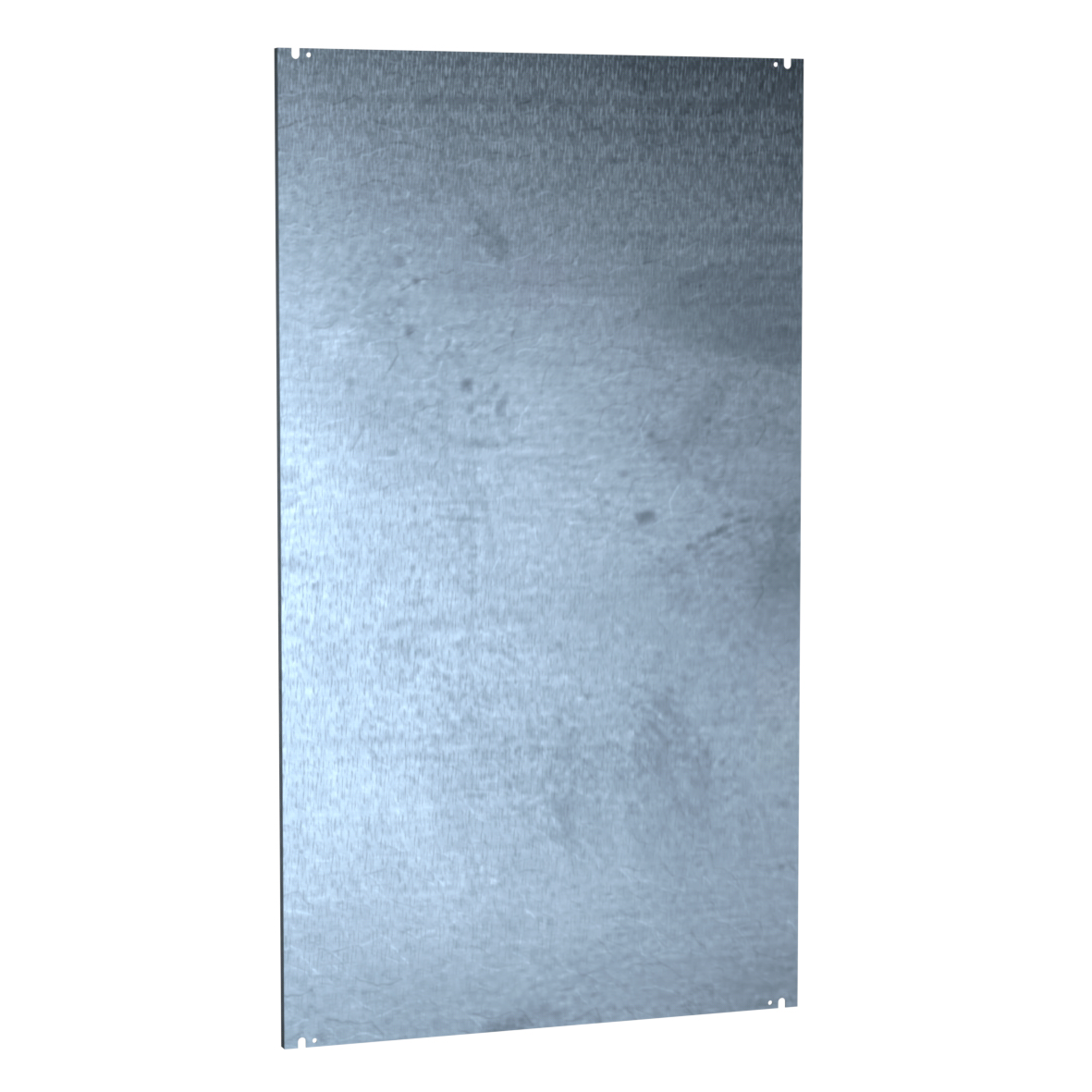

Mounting plate suitable for SN enclosure and compact69.
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 801 mm with 20 mm flanged mounting plate.
Technical Data
-
Order No.: 0331-6012-00-13
-
Material: Sheet steel
-
Width: 530 mm
-
Height: 1170 mm
-
Suitabel for width: 600 mm
-
Suitable for height: 1200 mm
-
Sheet thickness: Moungting panel: 2,5 mm
-
Surface: Galvanized
-
Weight: 12 kg
-
Mounting plate smooth: 0
-
Mounting plate edged: 1
- 1 mounting plate without hardware
3331-6012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15342
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15362
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_15485
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6374
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6384
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20199_6900
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
R:20203_15407
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
R:20203_15416
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
R:20203_15422
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
R:20203_6415
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
R:20203_6422
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
R:20203_6910
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
