0331-2030-00-13

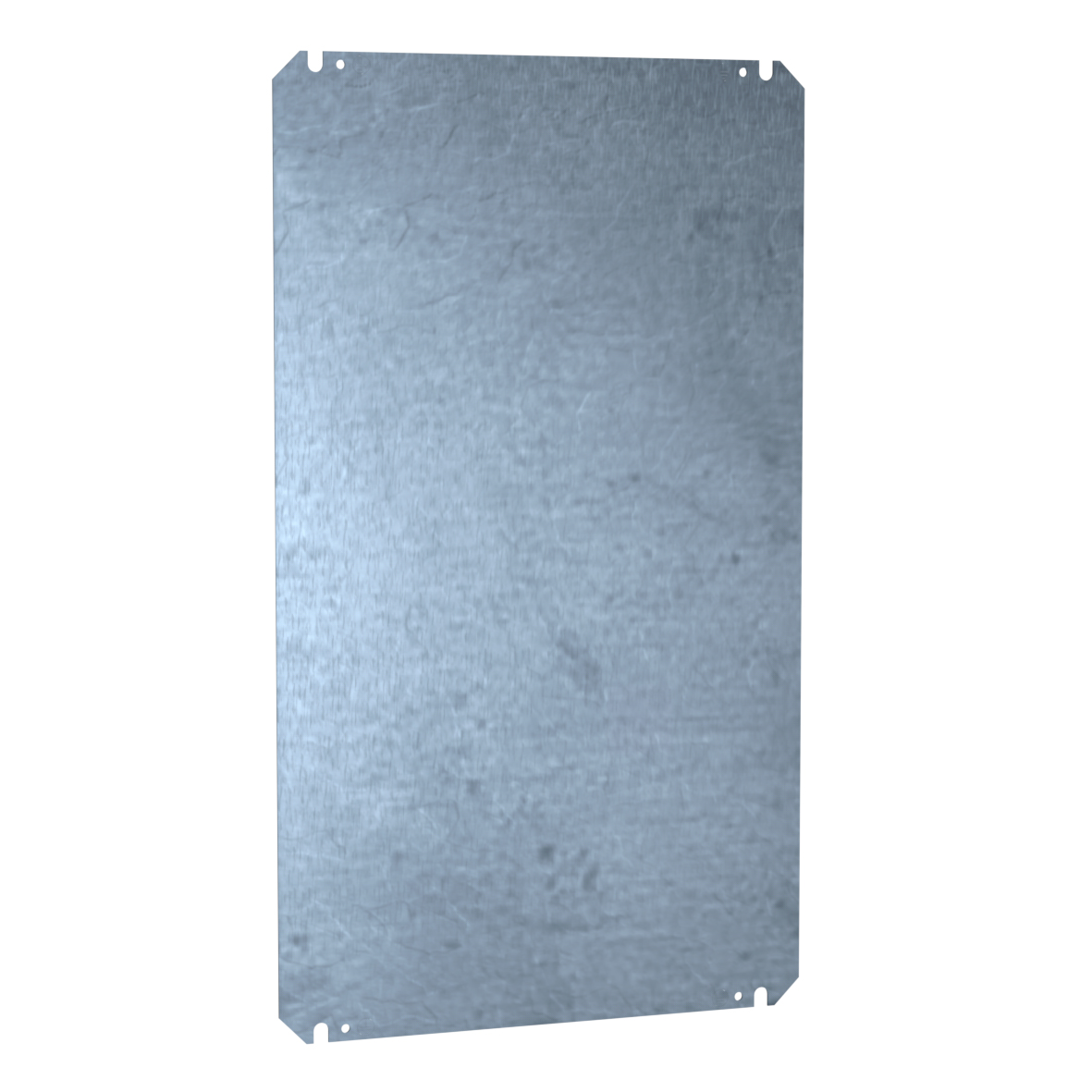

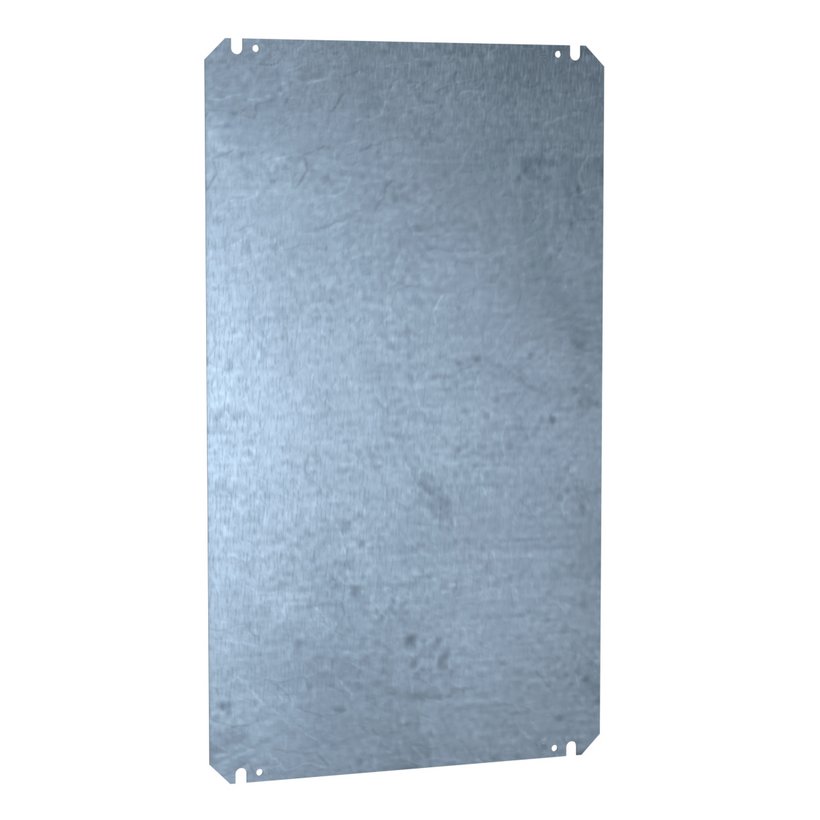

Mounting plate
Product description
Mounting plate suitable for SN enclosure and compact69.
Protective ground connection to DIN EN 61439-1.

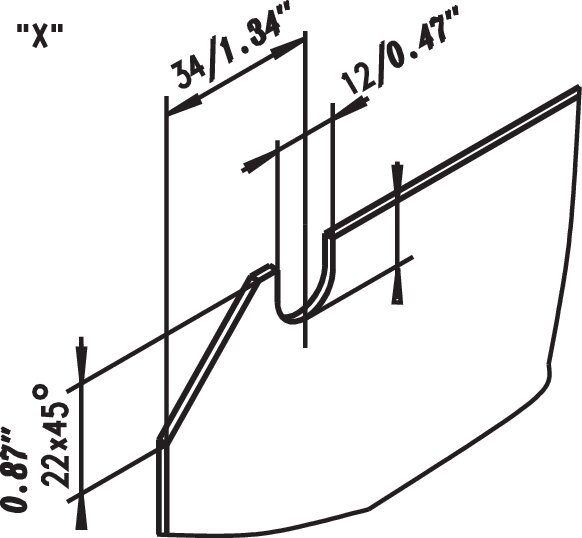

From housing width/height >= 801 mm with 20 mm flanged mounting plate.
Technical Data
-
Order No.: 0331-2030-00-13
-
Material: Sheet steel
-
Width: 143 mm
-
Height: 270 mm
-
Suitabel for width: 200 mm
-
Suitable for height: 300 mm
-
Sheet thickness: Moungting panel: 2 mm
-
Surface: Galvanized
-
Weight: 0.6 kg
-
Mounting plate smooth: 0
-
Mounting plate edged: 0
- 1 mounting plate without hardware
3331-2030-12-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
without mounting plate
3331-2030-12-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
with mounting plate
3351-2030-12-06
Wall-mount enclosures EMC, stainless steel , 1-door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
without mounting plate
3351-2030-12-16
Wall-mount enclosures EMC, stainless steel , 1-door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
with mounting plate
3331-2030-12-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-2030-12-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3351-2030-12-00
Wall-mount enclosures series 33, stainless steel, single door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
3351-2030-12-10
Wall-mount enclosures series 33, stainless steel, single door
Width
200 mm
Height
300 mm
Depth
125 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus
