Mounting plate

0331-9112-00-13

Mounting plate

Product description

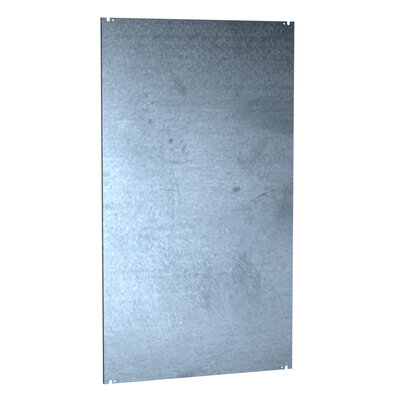

Mounting plate suitable for SN enclosure and compact69.

Protective ground connection to DIN EN 61439-1.

From housing width/height >= 801 mm with 20 mm flanged mounting plate.

Technical data

  • Article number: 0331-9112-00-13
  • Material: Sheet steel
  • Width: 845 mm
  • Height: 1170 mm
  • suitable for width: 915 mm
  • suitable for height: 1200 mm
  • Sheet thickness: Moungting panel: 2,5 mm
  • Surface: Galvanized
  • Weight: 19.8 kg
  • Edged mounting plate:
  • 1 mounting plate without hardware
Wall-mount enclosures series 33 sheet steel, 1 door
3331-9112-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Wall-mount enclosures series 33 sheet steel, 1 door
3331-9112-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Wall-mount enclosures series 33 sheet steel, 1 door
3331-9112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Wall-mount enclosures series 33 sheet steel, 1 door
3331-9112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Mounting plate
Mounting plate
Mounting plate suitable for SN enclosure and compact69.
Protective ground connection to DIN EN 61439-1.
From housing width/height >= 801 mm with 20 mm flanged mounting plate.
