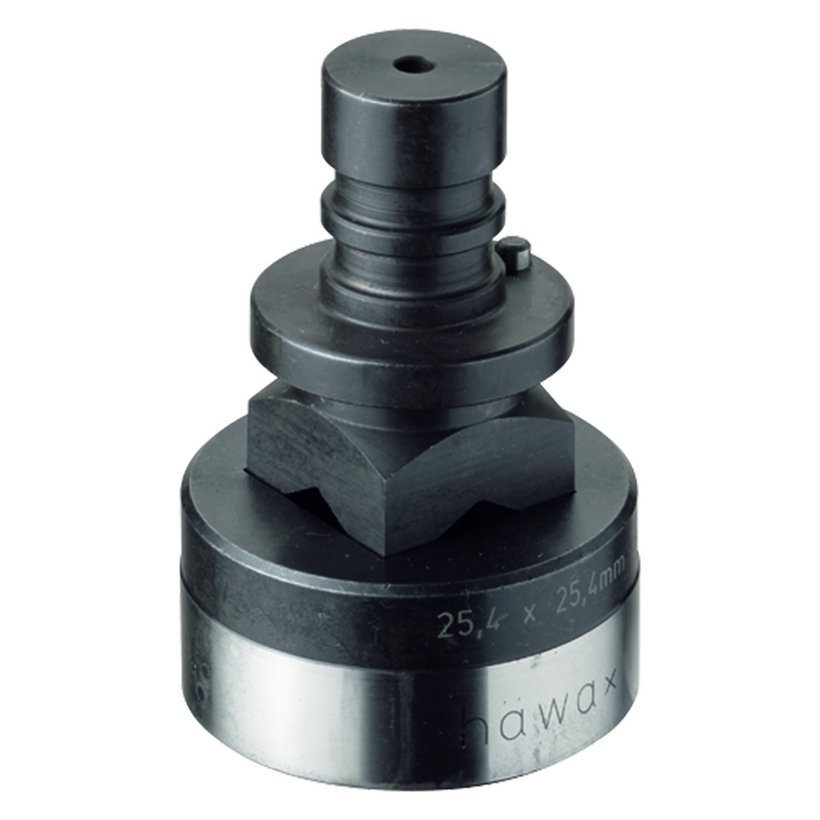

Square Punch for Quick-Press 400

2665-0422-20-00

Square Punch for Quick-Press 400

  • Long lifetime
  • Maximum productivity with minimum effort

Product description

For the use in bow punches Quick-Press 400

Low tool wear through optimum cutting geometry

Quick, precise and burr-free punching

Technical data

  • Article number: 2665-0422-20-00
  • Max. Sheet thickness: Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
  • Product family: For workshop equipment
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Punching Tools
  • PRODUKTGRUPPENNAMEEBENE5: Punches
  • PRODUKTGRUPPENNAMEEBENE6: Square punches
  • Clamping spigot: ø 20 mm/0,79"
  • Size: 22,2 x 22,2 mm; 0,87 x 0,87"
  • Die mounting diameter: 50 mm

Notice

  • We do not recommend to reposition the punch.
  • Before selecting this punch, check if you already have the required die holder (2665-0000-10-03).
  • 1 square punch, consisting of punch and die
Die Holder ø 50 mm for Quick-Press 400
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
Quick-Press 400
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
Square Punch for Quick-Press 400
Square Punch for Quick-Press 400
For the use in bow punches Quick-Press 400
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching

Remember
For workshop equipment
22,2 x 22,2 mm; 0,87 x 0,87"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
For workshop equipment
25,4 x 25,4 mm; 1 x 1"
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
50 mm
