2665-0922-52-01

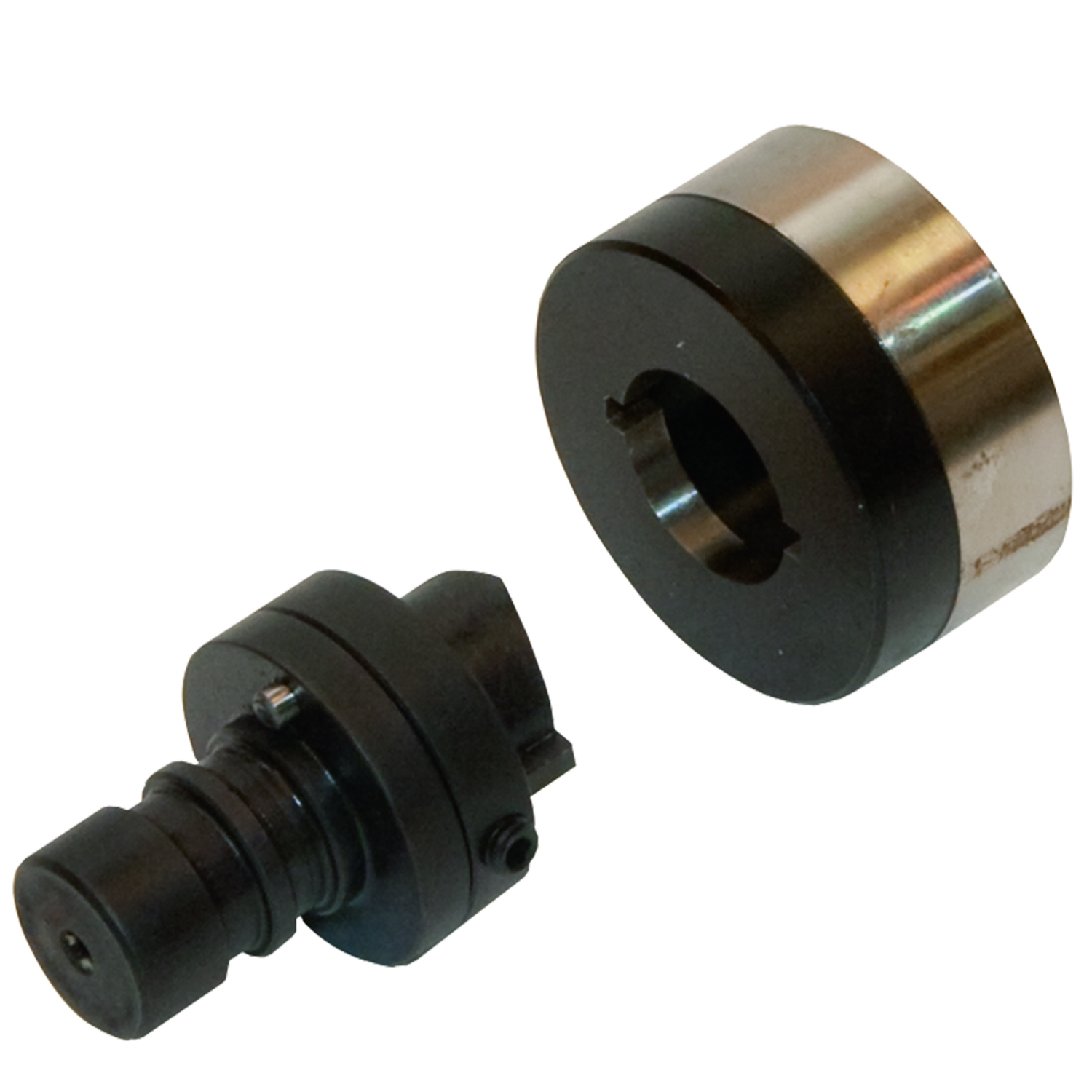

Round Punch with Two Keyways for Quick-Press 400
- Long lifetime
- Maximum productivity with minimum effort
- For punching grooves for components with anti-rotation protection
- Tool can be rotated by 90°
Product description
For the use in bow punches Quick-Press 400
For punching 2 opposing keyways WxH 3.3x2.5 mm
For sheet steel and stainless steel sheets
Quick, precise and burr-free punching
Technical Data
-
Order No.: 2665-0922-52-01
-
Max. sheet metal thickness: Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 20 mm/0,79"
-
Diameter of the die holder: 1,97 inch
-
Size: ø 22,5 mm
Notice
- Before selecting this punch, check if you already have the die holder type 2665-0000-10-03.
- 1 round punch, consisting of punch and die
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 20 mm/0,79"
2665-0000-10-00
Quick-Press 400
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
400 mm
