Laser Retrofit Kit

2662-7105-80-04

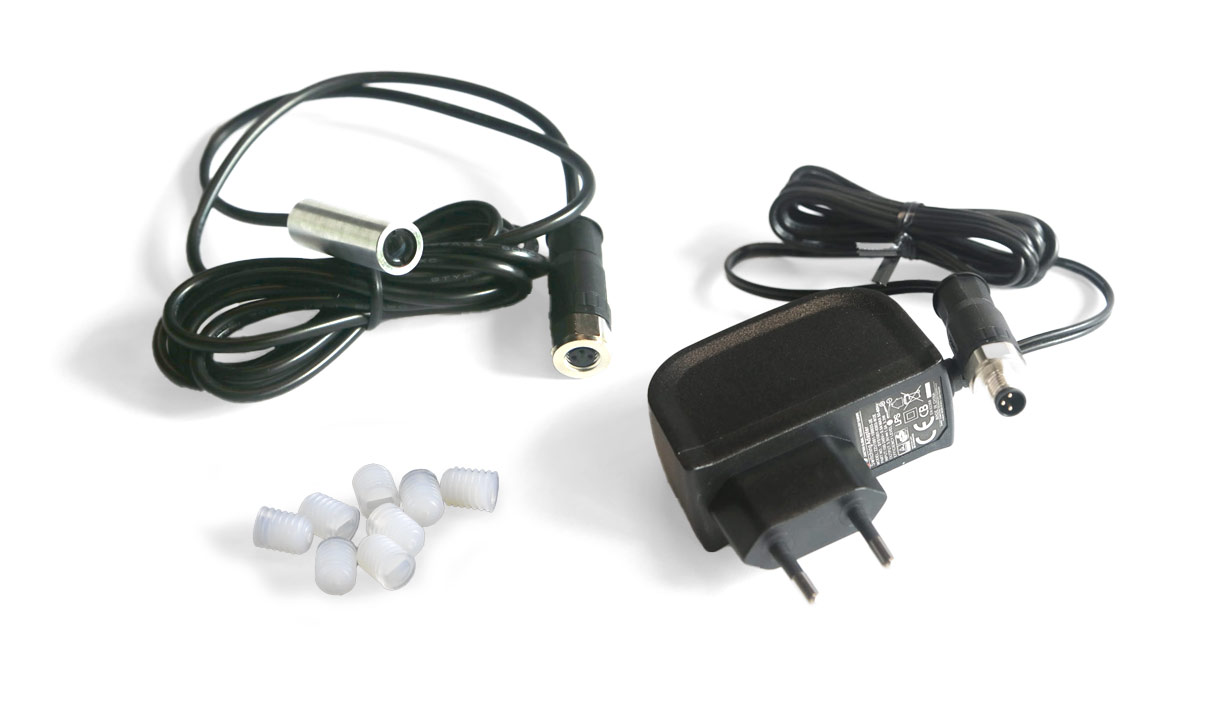

Laser Retrofit Kit

  • Optical center point indicator

Product description

Retrofit kit of a center point indicator consisting of a laser diode module and plug-in power supply unit. Prerequisite: 230 Volt socket and a suitable hydraulic cylinder.

Total cable length: 2.9 m.

Technical Data

  • Order No.: 2662-7105-80-04
  • PRODUKTFAMILIE: For workshop equipment
  • Operating voltage: 3 V DC
  • Type: Spot Laser Diode Module
  • Electrical connection: 230 V / 50 Hz
  • Use for: Quick-Press 300 / Quick-Press 400 / Maxi-Press 500
  • Laser class: 2

Notice

  • Suitable for cylinders with serial number RZ.12.xxx and RZ.13.xxx.
  • For installation by customer.
  • For laser operation, remove the center pins of the punching tools and adapters
  • 1 laser diode module, 1 plug-in power supply unit with mounting hardware and mounting instructions
Plastic Set Screw M5x6
2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Laser adjustment aid
2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
Version
for Quick-Press 300/400 and Maxi-Press 500
Hydraulic Quick-Press 300
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
Hydraulic Quick-Press 300 with center point indicator
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
Spot Laser Diode Module
2600-2000-00-04
Spot Laser Diode Module
Product range
For workshop equipment
Version
Spot Laser Diode Module
Required input voltage
3 V DC
Laser class
2
Plastic Set Screw M5x6
2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Power Supply Unit 3V DC
2600-2000-60-04
Power Supply Unit 3V DC
Product range
For workshop equipment
Version
Spot laser diode module
Output voltage
3 V DC
Electrical connection
230 V / 50 Hz
