Finger Guard + Wiper
Finger Guard + Wiper
Height-adjustable, for tool exchange and wiper function.
Laterally adjustable tool slides with rubber plugs on the lower side, to avoid any workpiece damage during wiping.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment

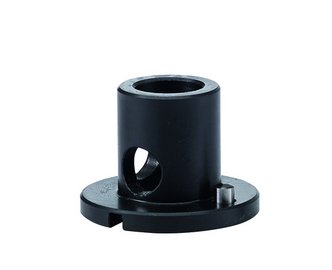

Reduction Adapter Clamping Pin
Reduction Adapter Clamping Pin
Enables the use of punches with a 13 mm clamping pin diameter (Quick-Press 300) in machines with a 20 mm clamping pin holder
Clamping via a set screw with pin

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment
for Quick-Press 400 and for Maxi-Press 500
13 mm
20 mm

Swivel Door Support for Bow Punch
Swivel Door Support for Bow Punch
The door support is equipped with 2 height-adjustable mobile supports for supporting large and heavy workpieces. If the workpiece is moved evenly, the mobile supports travels along with the workpiece.
Processing of flanged sheets up to 35 mm.
Flexible mounting thanks to the universally designed mounting unit. Attachment either at the bow punch or at/on the working plate.
Space requirement for processing 0.8 m x 2 m workpieces: 3 m x 2 m (width x depth).

Art No.
Product range
Working height
Workpiece dimensions
Workpiece weight
Remember
For workshop equipment
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
max. 800 x 2.000 mm/ 31.5" x 78.74"
max. 45 kg; 99.2 lbs

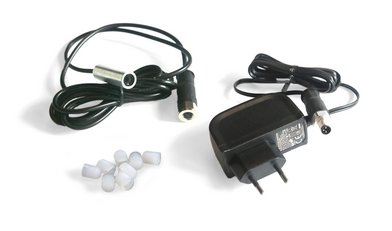

Laser Retrofit Kit
Laser Retrofit Kit
Retrofit kit of a center point indicator consisting of a laser diode module and plug-in power supply unit. Prerequisite: 230 Volt socket and a suitable hydraulic cylinde

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
230 V / 50 Hz
2

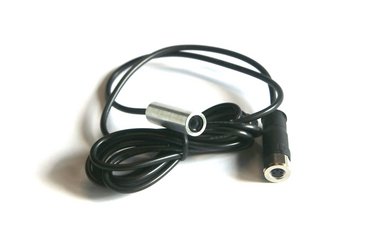

Spot Laser Diode Module
Spot Laser Diode Module
Laser diode module for center point indicator for häwa bow punches

Art No.
Product range
Version
Required input voltage
Laser protection class
Remember
For workshop equipment
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
3 V DC

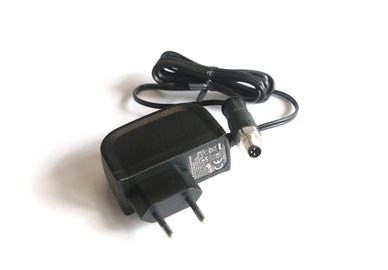

Power Supply Unit 3V DC
Power Supply Unit 3V DC
Power supply for laser module.
For connection to 230 V/50 Hz.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
230 V / 50 Hz

Plastic Set Screw M5x6
Plastic Set Screw M5x6
Set screw for laser LED module alignment for punch center point indication in häwa bow punches.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation

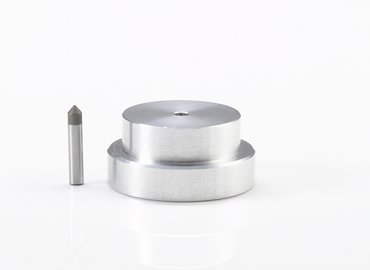

Laser adjustment aid
Laser adjustment aid
Tool for easy laser diode module alignment in häwa bow punches.
Can be used for bow punches with a die holder for ø 40 mm or ø 50 mm dies.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment

Mobile Base
Mobile Base
Can be used as mobile workbench
Mobile base with open left side with adjustable shelf e.g. for storing the electro- hydraulic pump and with 1 drawer and box.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
For workshop equipment
1.250x700x840 mm
450 kg
