2600-2000-00-04

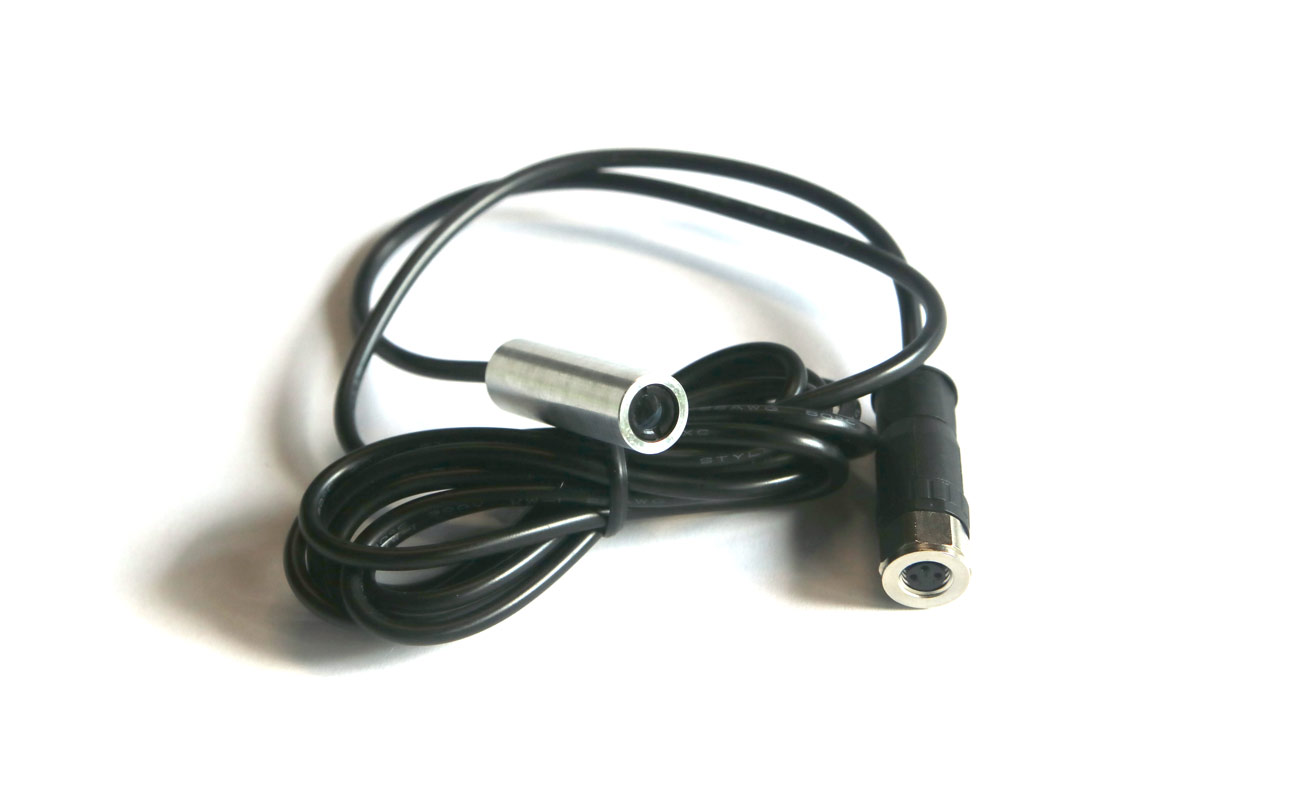

Spot Laser Diode Module
Product description
Laser diode module for center point indicator for häwa bow punches
Technical data
-
Article number: 2600-2000-00-04
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories for sheet metal processing
-
Version: For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
-
Required input voltage: 3 V DC
-
Laser class: 2
Notice
- Suitable for cylinders with serial number RZ.12.xxx and RZ.13.xxx
- Remove the center pins of the punching tools and adapter for laser operation.
- The 230 V/50 Hz power supply unit type 2600-2000-60-04 is required.
- When replacing the spot laser diode module supplied before July 2019, the power supply unit type 2600-2000-60-04 must also be replaced. Reason: different operating voltage.
- 1 laser diode module
2600-2000-60-04
Power Supply Unit 3V DC
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7105-80-04
Laser Retrofit Kit
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
Laser class
2
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Mounting instructions:
