2600-2000-30-00

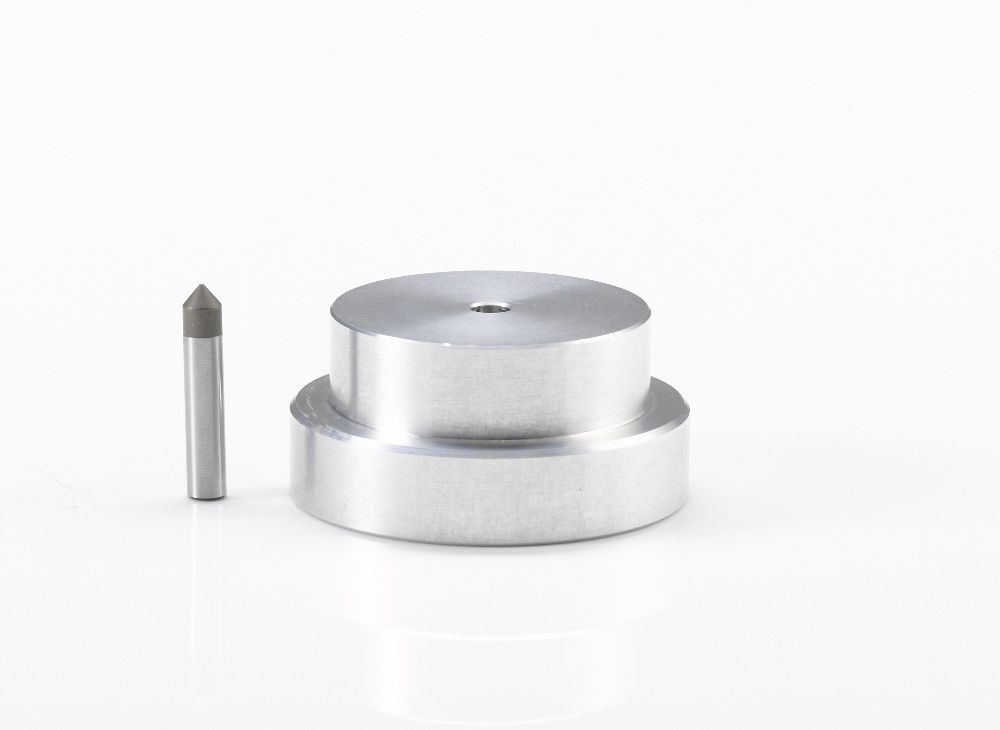

Laser adjustment aid
Product description
Tool for easy laser diode module alignment in häwa bow punches.
Can be used for bow punches with a die holder for ø 40 mm or ø 50 mm dies.
Technical data
-
Article number: 2600-2000-30-00
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Accessories for sheet metal processing
-
Version: for Quick-Press 300/400 and Maxi-Press 500
Notice
- Further details for use, see file “Alignment of the center point indicator with laser alignment aid” under downloads.
- Alignment aid with pin (enclosed)
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
2662-7105-80-04
Laser Retrofit Kit
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
Laser class
2
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Mounting instructions:
