2600-2005-00-03

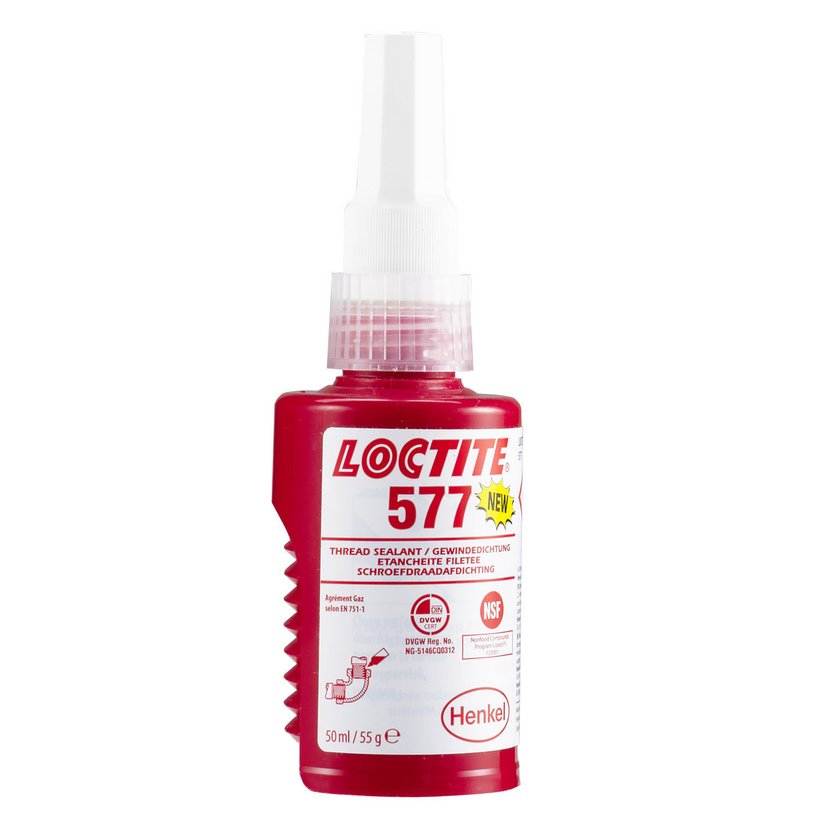

Liquid Thread Sealant
- Thread sealant for high pressures
- Resistant to vibrations and impact
- Excellent chemical resistance
Product description
For sealing conical metal threaded joints for hydraulic applications
Technical Data
-
Order No.: 2600-2005-00-03
-
PRODUKTFAMILIE: For Mobile Devices and Workshop Equipment
-
Package size: 50 ml
-
Temperature range: from : -55 °C to : +180 °C
- 1 unit
2611-0003-03-00
Switch Valve
Product range
For workshop equipment
Operating pressure
max.
500 bar
Connection thread
3x 1/4“ NPT IG
2611-0101-20-00
Hydraulic Hose for Electrical Pumps
Operating pressure
max.
700 bar
Connection thread
1x 1/4“ NPT Male Thread + 1x DKOS10 with M18x1.5 union nut
Hose length
3500 mm
Bend protection
no
2611-0400-10-00
Hydraulic Hoses 1/4" NPT
Operating pressure
max.
700 bar
Connection thread
2x 1/4“ NPT AG
Hose length
1000 mm
Bend protection
no
2611-0400-20-00
Hydraulic Hoses 1/4" NPT
Operating pressure
max.
700 bar
Connection thread
2x 1/4“ NPT AG
Hose length
2000 mm
Bend protection
no
2611-0400-30-00
Hydraulic Hoses 1/4" NPT
Operating pressure
max.
700 bar
Connection thread
2x 1/4“ NPT AG
Hose length
3000 mm
Bend protection
no
2684-0400-10-00
Hydraulic Hoses with 3/8" BSPT
Operating pressure
max.
700 bar
Connection thread
1x 1/4" BSPT AG + 1x 3/8" BSPT AG
Hose length
1000 mm
Bend protection
on both sides
2685-0400-18-00
Hydraulic Hoses with 3/8" BSPT
Operating pressure
max.
700 bar
Connection thread
2x 3/8“ NPT AG
Hose length
1800 mm
Bend protection
on one side
2611-0102-04-00
Double Nipple 1/4" NPT Male Thread
Product range
For workshop equipment
Female thread
2x 1/4“ NPT
2611-7000-08-00
Reduction Thread G3/8" Male Thread x G1/4" Female Thread
Product range
For workshop equipment
Female thread
G3/8"
Male thread
G1/4"
2611-7102-04-00
Plug-In Coupling
Product range
For workshop equipment
Operating pressure
max.
1000 bar
Connection thread
1/4" NPT IG
2611-7102-05-00
Plug-In Nipple
Product range
For workshop equipment
Operating pressure
max.
1000 bar
Connection thread
1/4" NPT IG
2621-0444-01-00
Screw Coupling 1/4" NPT
Operating pressure
max.
500 bar
Connection thread
Coupling 1/4“ NPT Male Thread, Nippel 1/4“ NPT Female Thread
2661-0102-05-00
Reduction Nipple 1/4" NPT Male Thread x 3/8" NPT Male Thread
Female thread
Screw coupling 3/8"
2661-0538-14-00
Reduction Thread 1/4" NPT Female Thread x 3/8" NPT Female Thread
Male thread
Screw coupling 3/8"
2684-0514-38-00
Reduction Thread 1/4" NPT Male Thread x 3/8" NPT Female Thread
Female thread
Angle 1/4" NPT
Male thread
Screw coupling 3/8"
2684-0538-01-00
Screw Coupling 3/8" NPT
Connection thread
Coupling 3/8“ NPT Male Thread, Nipple 3/8“ NPT Female Thread
Max. operating pressure
max.
500 bar
2684-0538-14-00
Reduction Thread 3/8" NPT Male Thread x 1/4" NPT Female Thread
Female thread
Screw coupling 3/8"
Male thread
Angle 1/4" NPT
Assembly instructions:
