2611-0101-20-00

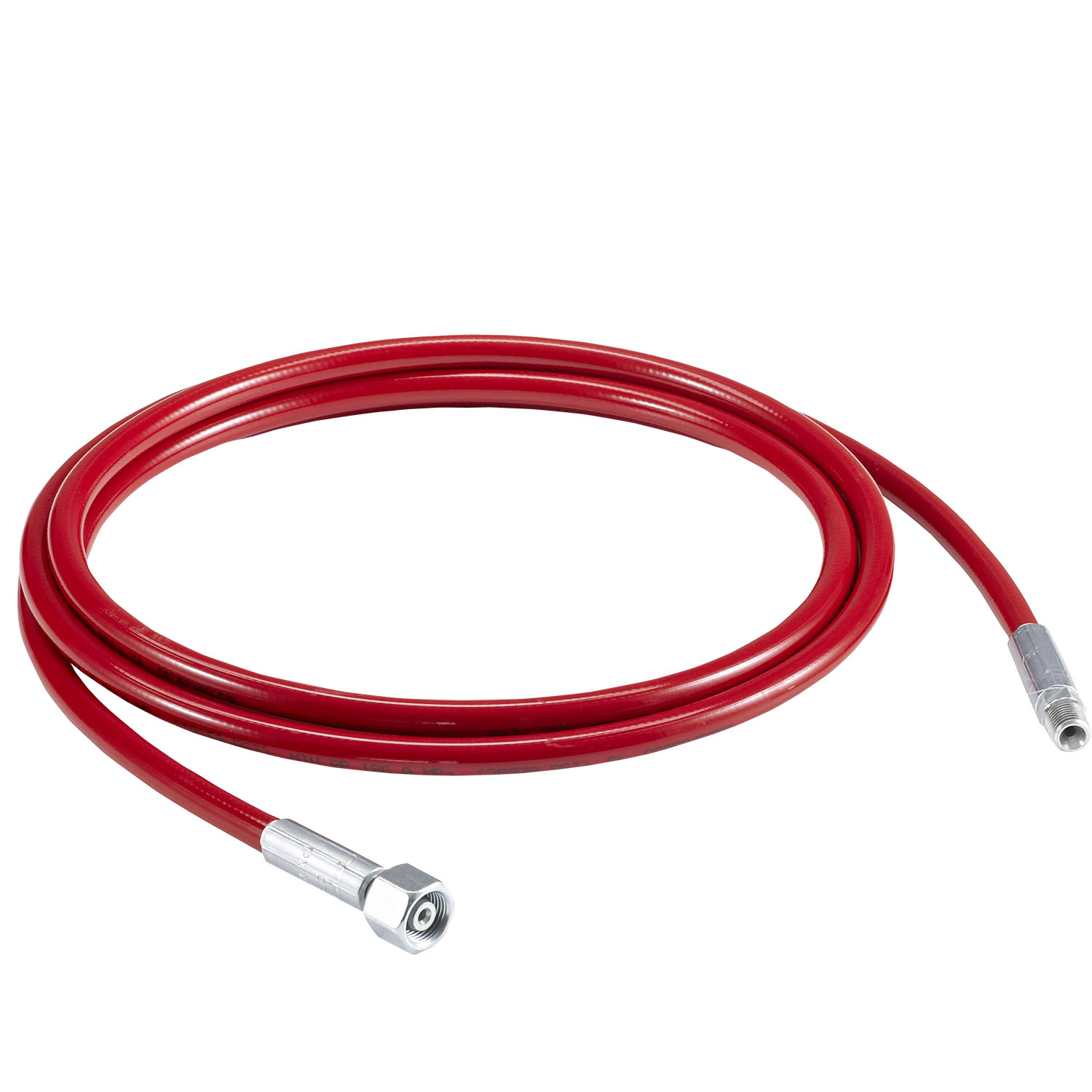

Hydraulic Hose for Electrical Pumps
- Max. operating pressure: 700 bar
- Easy handling
Product description
The steel reinforced polymer hose has an excellent flexibility for its entire life-span
Through its steel reinforced construction and its abrasion-resistant cover, it can be used for the toughest applications
With its small outside diameter and tight minimum bending radius it is ideal for installations in narrow spaces
Technical data
-
Article number: 2611-0101-20-00
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE4: Accessories Hydraulic Pumps
-
PRODUKTGRUPPENNAMEEBENE5: Hydraulic hoses
-
Connection thread: 1x 1/4“ NPT Male Thread + 1x DKOS10 with M18x1.5 union nut
-
Max. operating pressure: 700 bar
-
Temperature range: from : -40 °C to : +100 °C
-
Color: Red
-
Hose length: 3500 mm
-
Outer diameter: 12.5 mm
-
Bending radius: 70 mm
Notice
- Note: Delivery without nipple.
- To seal the threaded connection, use the thread sealant type 2600-2005-00-03.
- 1 hydraulic hose
