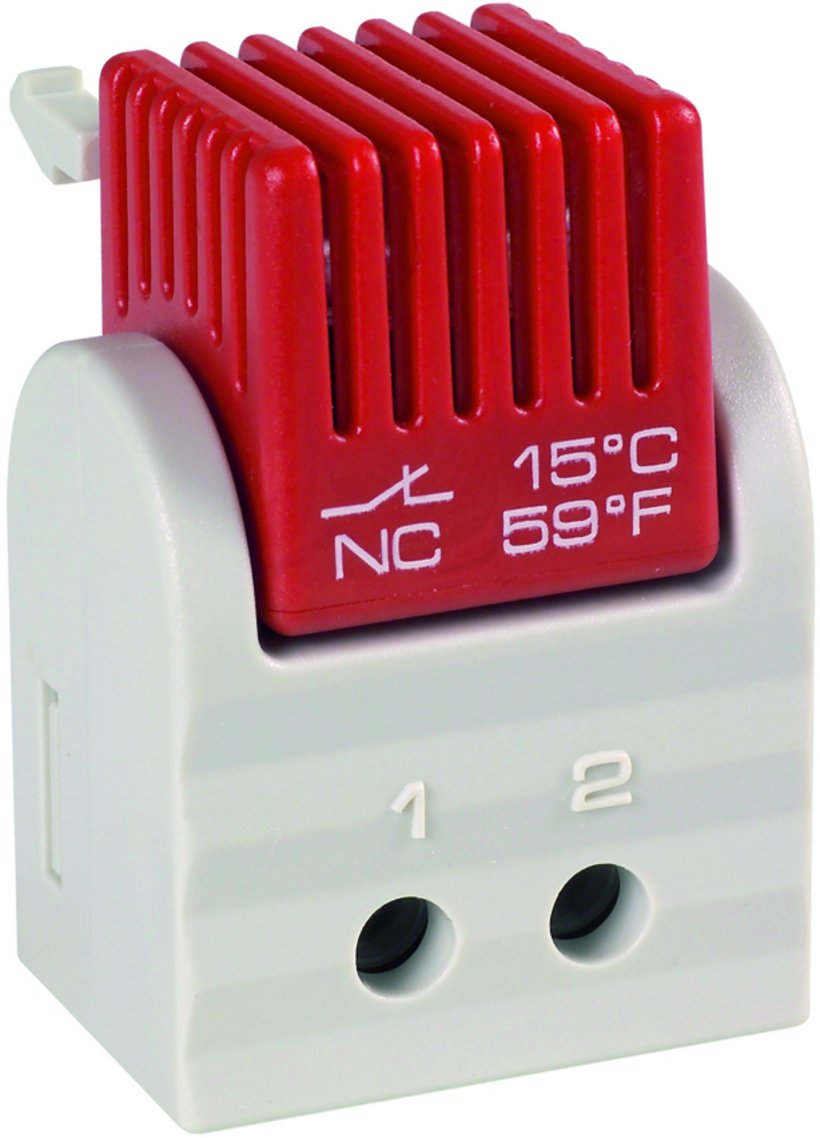

Product description
Normally closed contact / NC for controlling heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
High switching accuracy.
Technical Data
-
Order No.: 3150-3015-00-00
-
Protection type: IP20
-
Electrical connection: 2-pole max. 2.5 mm², clamping screw with strain relief, max. torque 0.8 Nm
-
TEMPERATURBEREICH_DIC: Switch-off temperature: +15 °C, Starting temperature: +5 °C
-
Operating temperature: from : -40 °C to : +80 °C
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -45 °C LAGERTEMPERATUR_BIS : +80 °C
-
Contact type: Snap-action contact
-
Max. switching capacity: Change-over
-
Max. starting current: AC 16 A for 10 Sec.
-
Service lifetime: >100.000 cycles
-
Sensor element: Thermoplastic
-
Control system: Opened con. (heating)
-
Mounting: Clip for 35 mm DIN rail EN 60715
-
Weight: 30 g
-
Dimension: Width : 33 mm Height : 47 mm Depth : 33 mm
-
Surface: Plastic according to UL94 V-0, light grey
-
Type: FTO15
-
Fitting position: variable
- Fix-Thermostat
