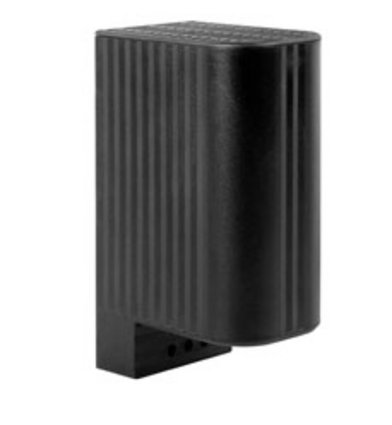

Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
The design of the heater supports the natural convection which results in a high air-flow of warm air
The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design
Heating element: Resistor (PTC) temperature limiting
The heaters are designed for permanent operation
Quick mounting: snap-on attachment to 35 mm DIN rail

Remember
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
10 W
CE; cURus
24 V DC
10 W
CE
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
20 W
CE; cURus
24 V DC
20 W
CE

Touch-Safe Small Heater Type (Semi-Conductor) with PTC-Resistor
Touch-Safe Small Heater Type (Semi-Conductor) with PTC-Resistor
The design of the heater supports the natural convection which results in a high air-flow of warm air
The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design
Heating element: Resistor (PTC) temperature limiting
The heaters are designed for permanent operation
Quick mounting: snap-on attachment to 35 mm DIN rail

Remember
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
50 W
CE; cURus
24 V DC
50 W
CE
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
100 W
CE; cURus
24 V DC
100 W
CE
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
150 W
CE; cURus
24 V DC
150 W
CE
from 120 V to 240 V AC (min. 110 V, max. 265 V)
100 W
ON + 5 °C; OFF + 15 °C
CE; cURus

Small Fan Heater Type HG with PTC-Resistor
Small Fan Heater Type HG with PTC-Resistor
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components
The heater is connected using the internal terminal connectors
The small size makes it ideal for use in enclosures where space is at a premium
Dynamic heating up through PTC-resistor (PTC-resistor, temperature limiting)
Axial fan with ball bearing provides forced air circulation inside the cabinet

Remember
230 V AC
150 W
CE; cURus
115 V AC
150 W
CE; cURus
230 V AC
250 W
CE; cURus
115 V AC
250 W
CE; cURus
230 V AC
400 W
CE; cURus
115 V AC
400 W
CE; cURus

Fan Heater Type HGH with PTC-Resistor
Fan Heater Type HGH with PTC-Resistor
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components
The heater is connected using the internal terminal connectors
Adjustable, integrated temperature controller, maintenance-free
The small size makes it ideal for use in enclosures where space is at a premium
Dynamic heating up through PTC-resistor (PTC-resistor, temperature limiting)
Radial fan with ball bearing provides forced air circulation…

Remember
115 V AC
400 W
Thermostat 0 up to +60 °C
CE; cURus
230 V AC
475 W
Thermostat 0 up to +60 °C
CE; cURus
115 V AC
510 W
Thermostat 0 up to +60 °C
CE; cURus
230 V AC
550 W
Thermostat 0 up to +60 °C
CE; cURus

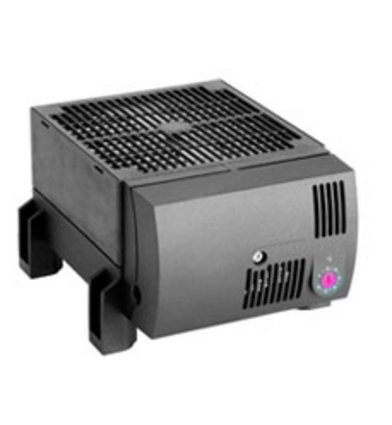

Fan Heater Type HG
Fan Heater Type HG
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components
The heater is connected using the internal terminal connectors
With integrated adjustable temperature controller or hygrostat, maintenance-free
The small size makes it ideal for use in enclosures where space is at a premium
Radial fan with ball bearing provides forced air circulation inside the cabinet
Type HG950/1200 clamping screw M5

Remember
230 V AC
950 W
Thermostat 0 up to +60 °C
CE; cURus
230 V AC
950 W
Hygrostat 65% r.F.
CE; cURus
230 V AC
1200 W
Thermostat 0 up to +60 °C
CE; cURus
