1204-0730-15-00

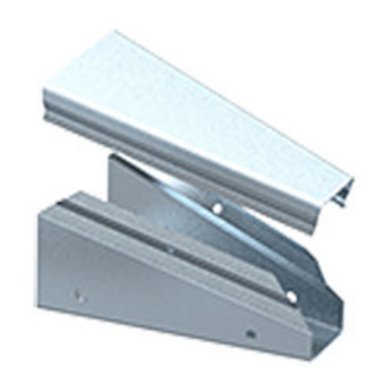

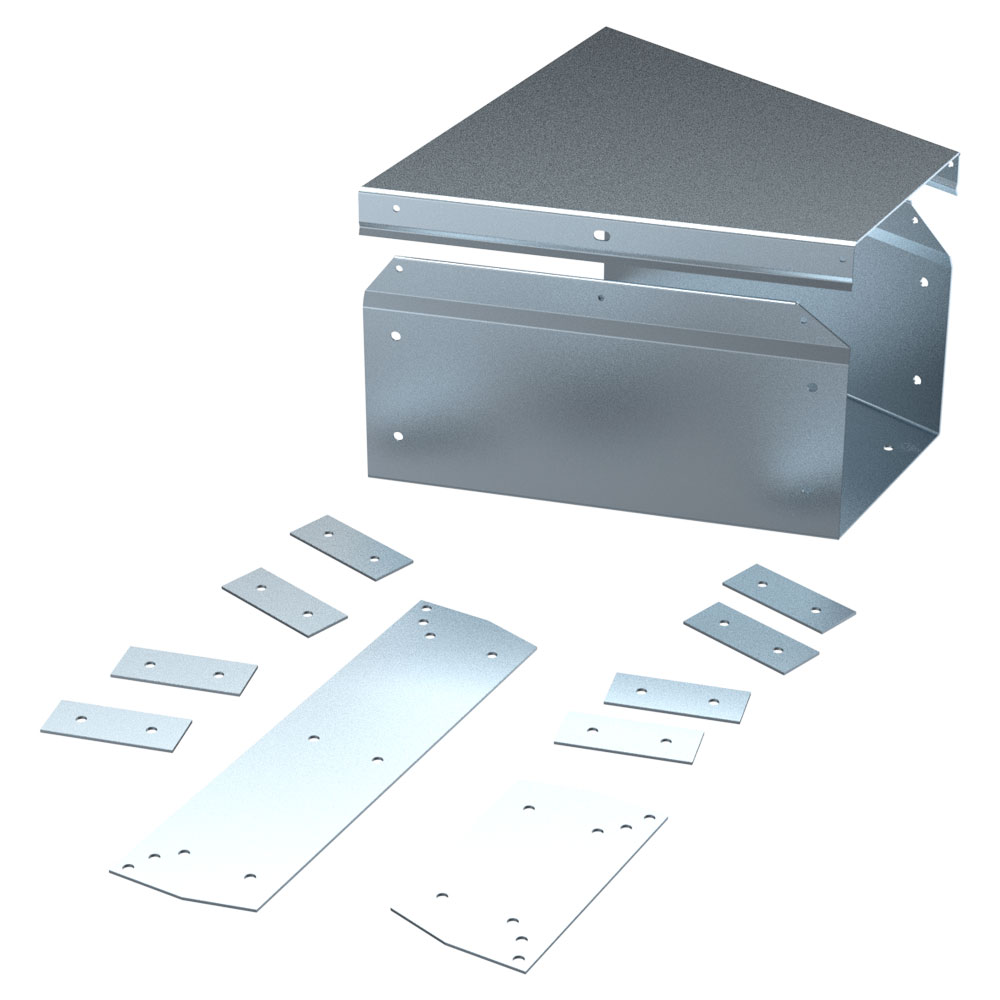

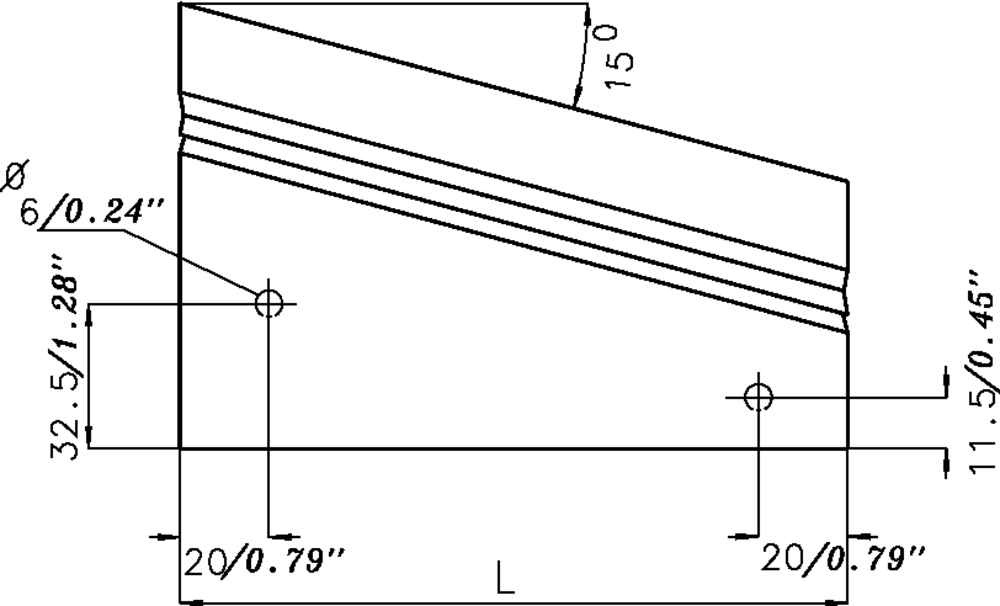

Reducer
- Continuously open insertion
Product description
To reduce or increase from one cable duct size to the next one.
The snap-on cable duct covers require minimum space to open.
If necessary, they can be secured with screws after installation.
The chamfered cable duct ends permit a continuous open insertion.
This accessory is provided with pre-drilled holes for the attachment screws of the supplied connection brackets.
Technical Data
-
Order No.: 1204-0730-15-00
-
Type: Cable duct system type 1204
-
Cross-section: from 300 x 150 mm to 150 x 150 mm
-
Length: 280 mm
-
Protection type: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 3.8 kg
Notice
- 1 reducer with connecting brackets
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread
8 mm
Material
Sheet steel
Surface
Galvanized
1204-0015-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Material
Sheet steel
1204-0015-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Material
Sheet steel
1204-0015-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Material
Sheet steel
1204-0030-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
500 mm
Material
Sheet steel
1204-0030-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
1000 mm
Material
Sheet steel
1204-0030-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
2000 mm
Material
Sheet steel
1204-0330-90-00
Elbow
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
horizontal
Material
Sheet steel
1204-0415-00-00
T-Section
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Routing direction
variable
Material
Sheet steel
1204-0430-00-00
T-Section
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Angle
90°
Routing direction
variable
Material
Sheet steel
1204-1315-00-90
Elbow
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Sheet steel
1204-1315-01-35
Elbow
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Sheet steel
1204-1315-02-25
Elbow
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
45°
Material
Sheet steel
1204-1315-02-70
Elbow
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Angle
90°
Material
Sheet steel
