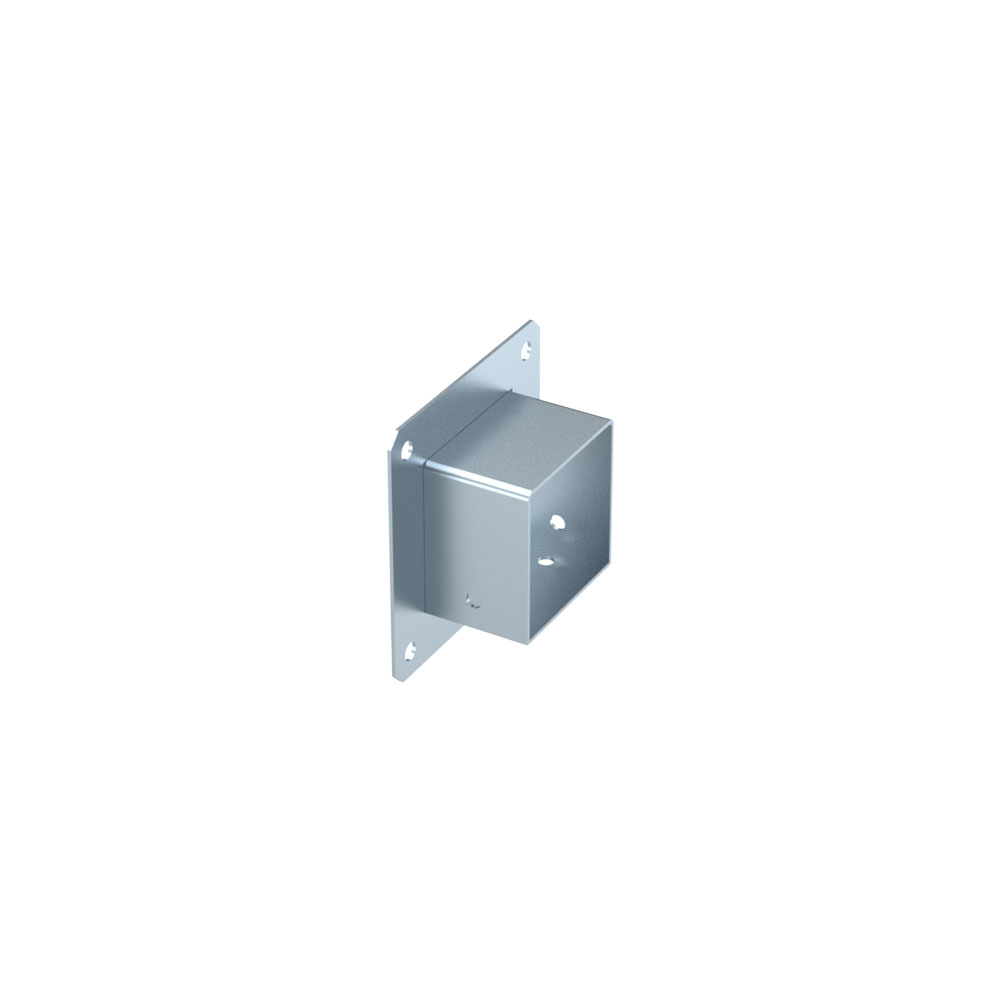

Adapter flange

1204-0606-00-00

Adapter flange

  • Robust design

Product description

For mounting ducts to housings, cabinets, machinery etc.

Technical data

  • Article number: 1204-0606-00-00
  • type: Cable duct system type 1204
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Type 1204/1207
  • Cross section: 60 x 60 mm/2,36 x 2,36"
  • Dimension F: 100 mm
  • Protection class: IP2X
  • Material: Sheet steel
  • Surface: electrolytically-galvanised
  • Sheet thickness: 1,5 mm/0,0,6"
  • Weight: 0.2 kg

Notice

  • This accessory is provided with pre-drilled holes for the attachment screws of the U-brackets or connection brackets.
  • U-brackets or connection brackets are required for assembly to other accessories.
  • The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
  • Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
  • 1 adapter flange
Screw with Nut
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
Screw with Washer
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
Cable Duct
1204-0006-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Material
Sheet steel
Cable Duct
1204-0006-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Material
Sheet steel
Cable Duct
1204-0006-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Material
Sheet steel
Elbow
1204-0306-13-00
Elbow
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Routing direction
horizontal
Material
Sheet steel
Elbow
1204-0306-90-00
Elbow
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
horizontal
Material
Sheet steel
T-Section
1204-0406-00-00
T-Section
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
variable
Material
Sheet steel
Adapter flange
Adapter flange
For mounting ducts to housings, cabinets, machinery etc.

Remember
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
Sheet steel
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
Sheet steel
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
Sheet steel
Cable duct system type 1204
11,81 x 5,91 inch
Sheet steel
Cable duct system type 1204
1,18 x 1,18 inch
Sheet steel
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
Stainless steel no. 1.4301
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
Stainless steel no. 1.4301
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
Stainless steel no. 1.4301
Cable duct system type 1207
11,81 x 5,91 inch
Stainless steel no. 1.4301
Cable duct system type 1207
1,18 x 1,18 inch
Stainless steel no. 1.4301
