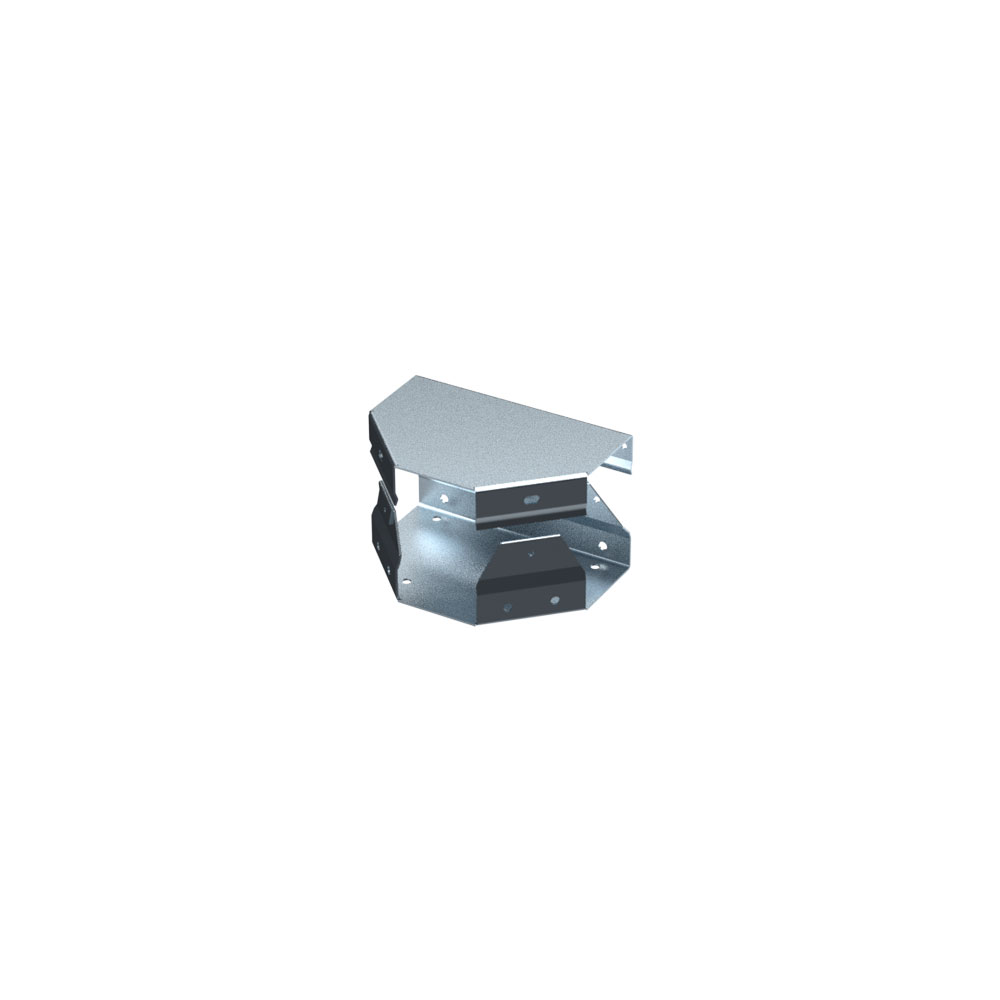

T-Section
- continuously open insertion
Product description
The snap-on cable duct covers require minimum space to open. If necessary, they can be secured with screws after installation.
This accessory is provided with pre-drilled holes for the attachment screws of the connection brackets.
Technical data
-
Article number: 1204-0406-00-00
-
type: Cable duct system type 1204
-
Cross section: 60 x 60 mm/2,36 x 2,36"
-
WINKEL: 90°
-
VERLEGERICHTUNG: variable
-
Protection class: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 0.65 kg
Notice
- Depending on the angle of the elbow and the connecting piece, fixing brackets in different angles may be required.
- 1 T-section with cover
1204-0706-03-00
Reducer
Type
Cable duct system type 1204
Cross section
from 60 x 60 to 30 x 30
Length
115 mm
Material
Sheet steel
1204-0710-06-00
Reducer
Type
Cable duct system type 1204
Cross section
from 100 x 100 to 60 x 60
Length
150 mm
Material
Sheet steel
1204-1006-03-00
Telescopic Section
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Dimensions
Length: 75 mm - 450 mm
Material
Sheet steel
1204-0206-00-00
End Cap
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
42 mm
Material
Sheet steel
1204-0606-00-00
Adapter flange
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Sheet steel
1204-0106-10-00
U-bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Routing direction
horizontal
Type
With pre-drilled holes
1204-0106-10-01
U-bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Routing direction
horizontal
Type
With threads
1204-0106-30-00
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Type
With pre-drilled holes
1204-0106-30-01
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Type
With threads
1204-0106-40-00
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Type
With pre-drilled holes
1204-0106-41-00
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Type
With threads
1204-0106-50-90
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Type
With pre-drilled holes
1204-0106-51-90
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Type
With threads
1204-0106-60-00
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
22,5°
Type
With pre-drilled holes
1204-0106-61-00
Connection Bracket
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
22,5°
Type
With threads
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-0006-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Material
Sheet steel
1204-0006-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Material
Sheet steel
1204-0006-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Material
Sheet steel
